QSI QL78C6SX-L LD 780nm 3mW Infrared Laser Diode

QSI QL78C6SX-L LD 780nm 3mW Infrared Laser Diode

[Features]
780nm infrared laser.
CW laser(Continuous wave).
Single transvers / TE mode laser.
5.6mm packages.

[Application]
Laser printer

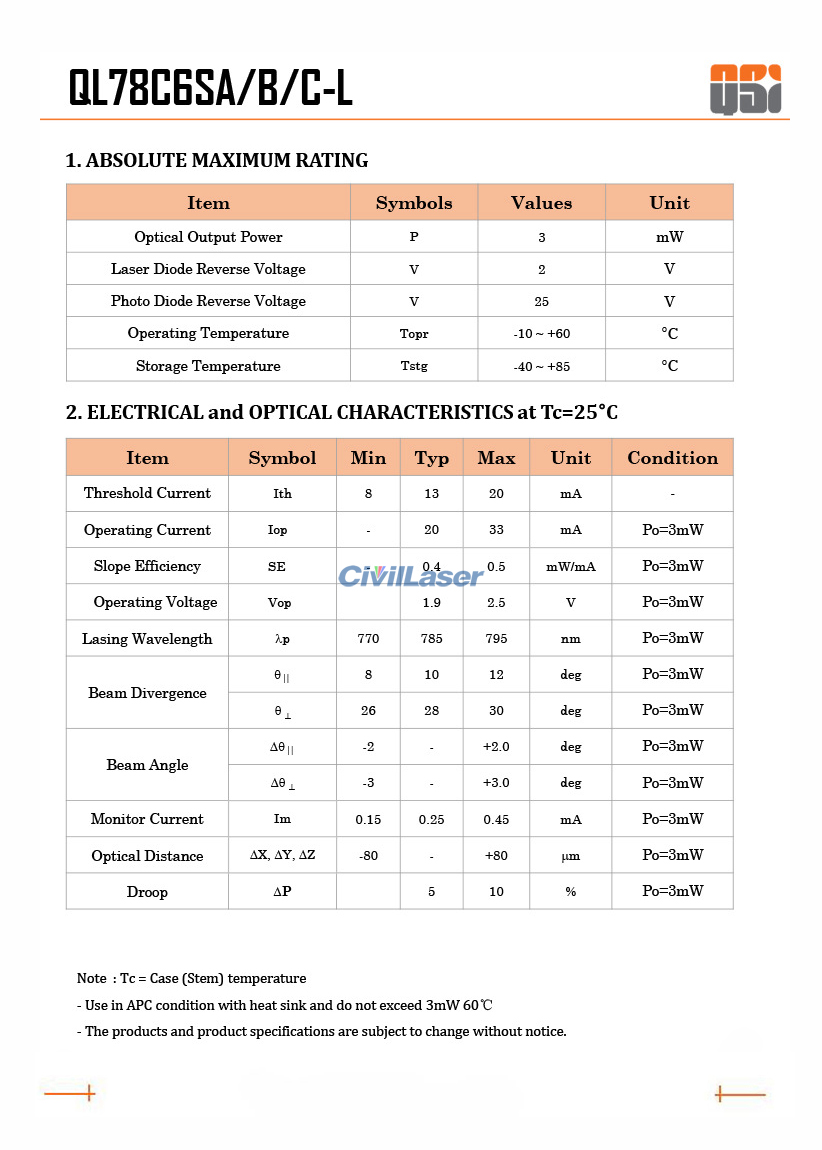

[Specification]
Product Name: Laser Diode
Model: QL78C6SX-L
Wavelength: 780nm
Output Power: 3mW
Laser Diode Reverse Voltage: 2V
Photo Diode Reverse Voltage: 25V
Threshold Current: 13mA
Operating Current: 20mA
Operating Voltage: 1.9V
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃

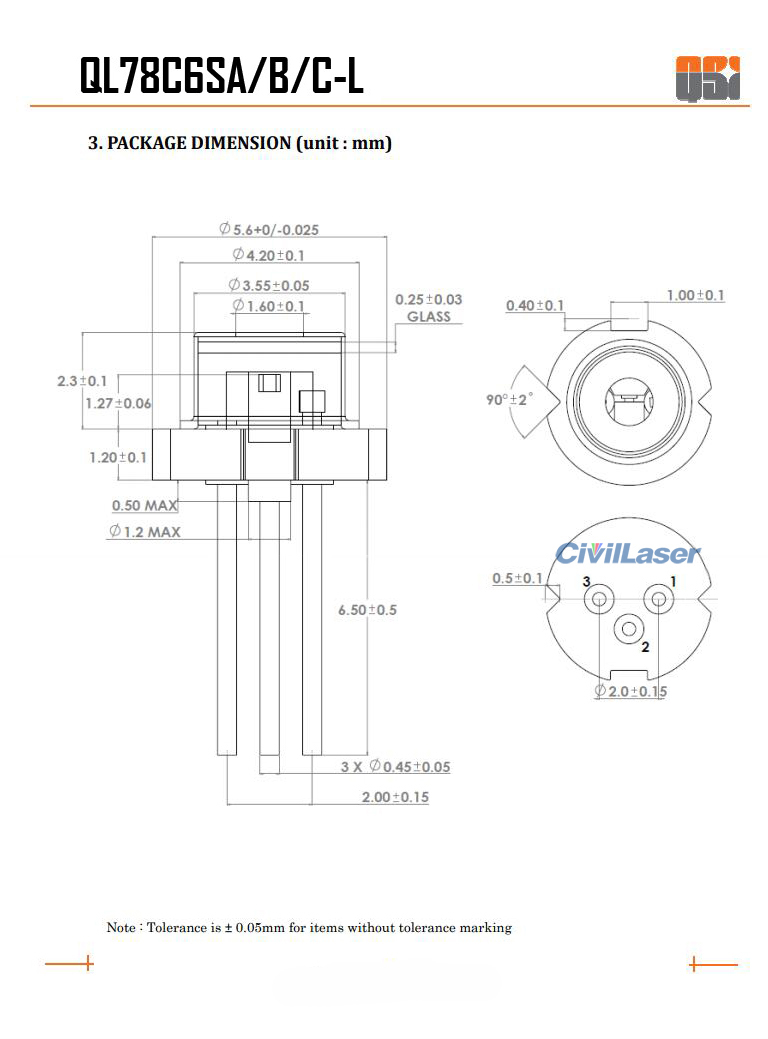

Package: TO18 (Φ5.6mm)
