QSI QL83H6SX 830nm 20mW Inrared Laser Diode TO18 5.6mm Package

QSI QL83H6SX 830nm 20mW Inrared Laser Diode TO18 5.6mm Package

[Features]
830nm infrared laser.
CW laser(Continuous wave).
Single transvers / TE mode laser.
5.6mm packages.

[Application]
Medical
Industrial optical senor

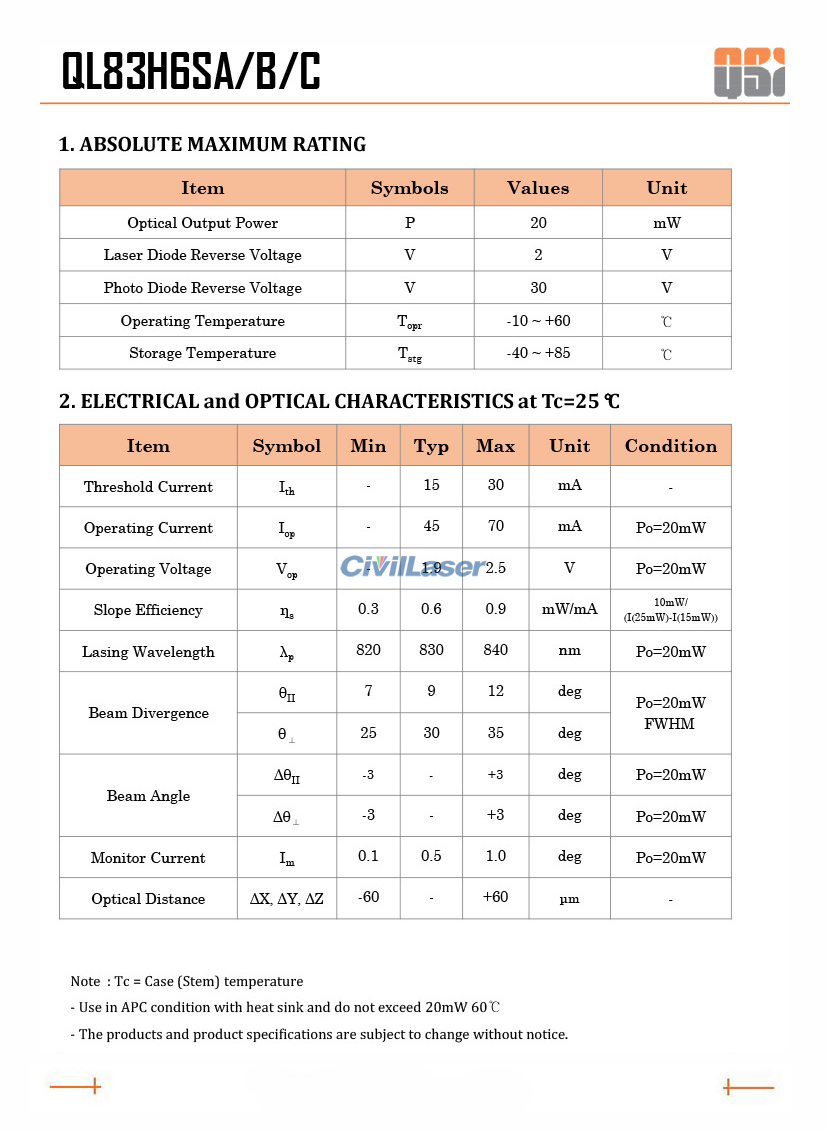

[Specification]
Product Name: Laser Diode
Model: QL83H6SX
Wavelength: 830nm
Output Power: 20mW
Laser Diode Reverse Voltage: 2V
Photo Diode Reverse Voltage: 30V
Threshold Current: 15mA
Operating Current: 45mA
Operating Voltage: 1.9V
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃

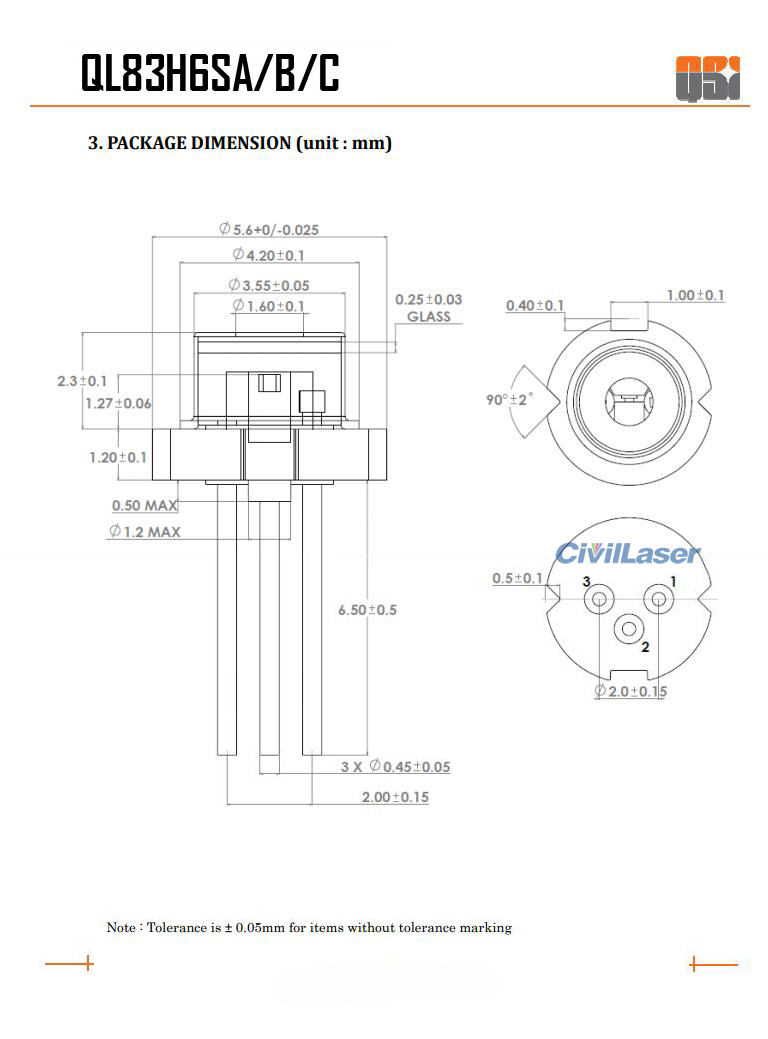

Package: TO18 (Φ5.6mm)
