QL78J6SX-H 780nm 50mW Infrared Laser Diode QSI IR LD

QL78J6SX-H 780nm 50mW Infrared Laser Diode QSI IR LD

[Features]
780nm infrared laser.
CW laser(Continuous wave).
Single transvers / TE mode laser.
5.6mm packages.

[Application]
Industrial optical senor

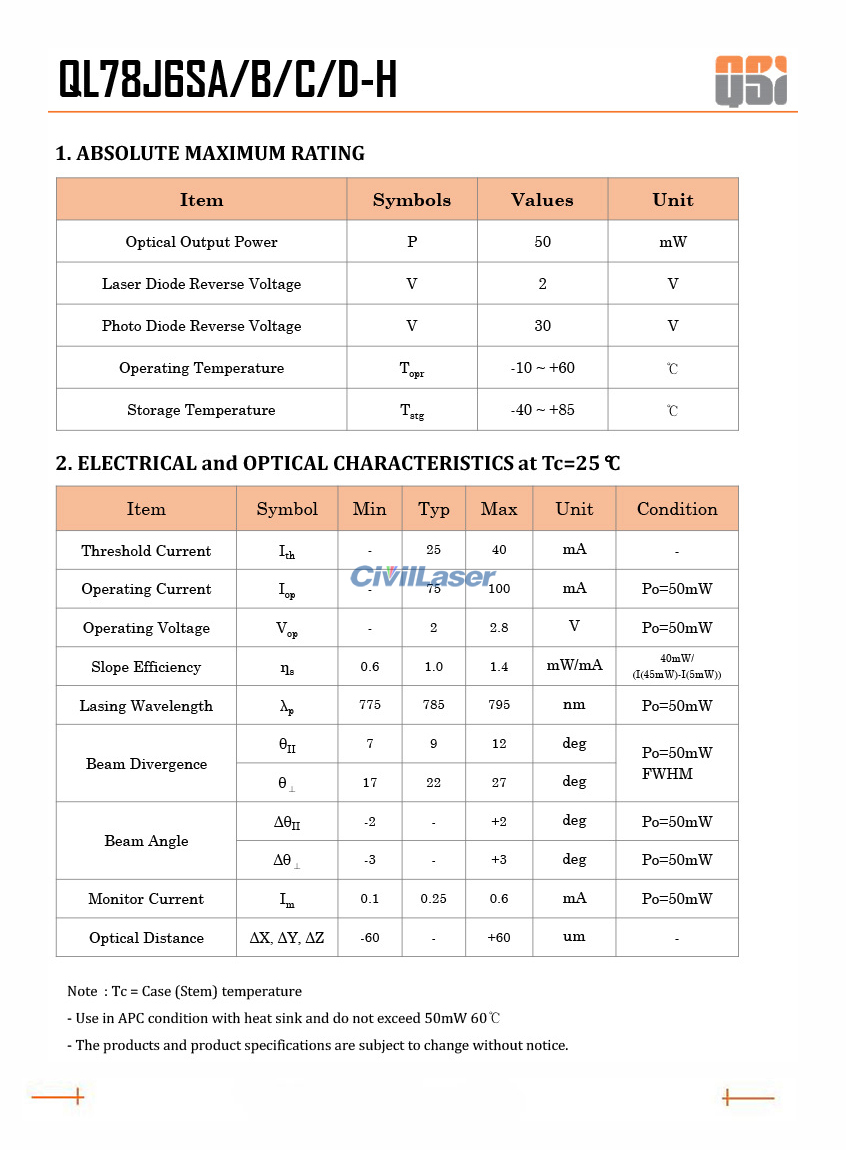

[Specification]
Product Name: Laser Diode
Model: QL78J6SX-H
Wavelength: 780nm
Output Power: 50mW
Laser Diode Reverse Voltage: 2V
Photo Diode Reverse Voltage: 30V
Operating Current: 75mA
Operating Voltage: 2.0V
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃

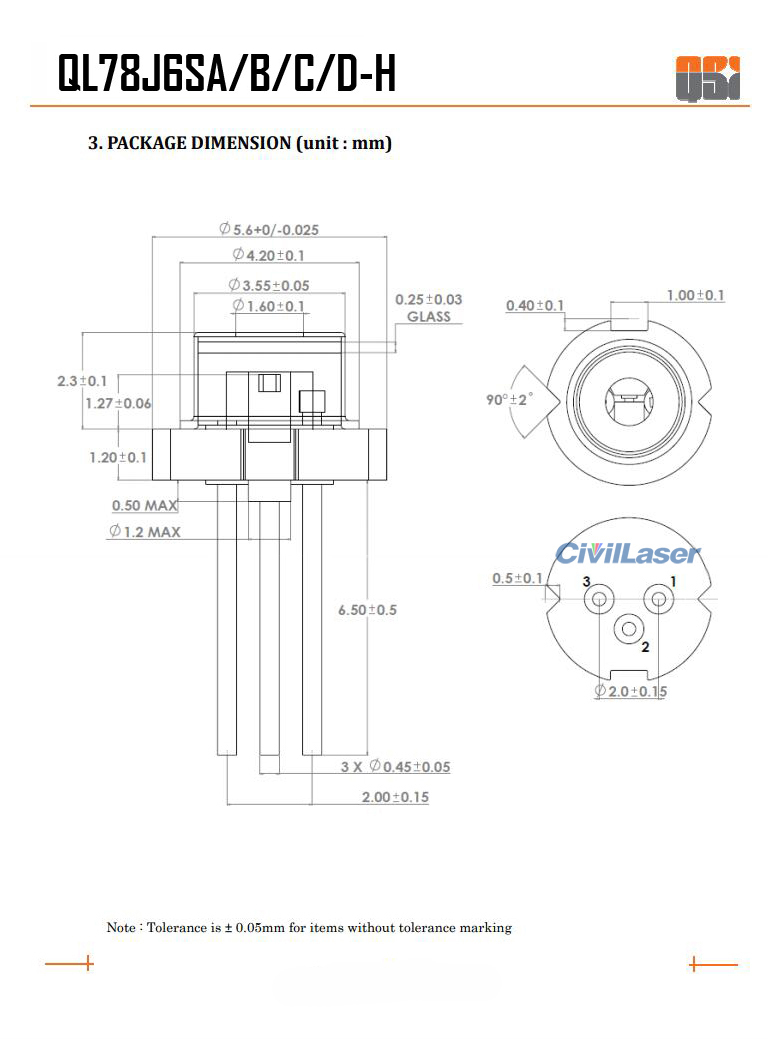

Package: TO18 (Φ5.6mm)
