QSI LD QL85H6SX 850nm 20mW Infrared Laser Diode TO18 Package

QSI LD QL85H6SX 850nm 20mW Infrared Laser Diode TO18 Package

[Features]
850nm infrared laser.
CW laser(Continuous wave).
Single transvers / TE mode laser.
5.6mm packages.

[Application]
Industrial optical senor

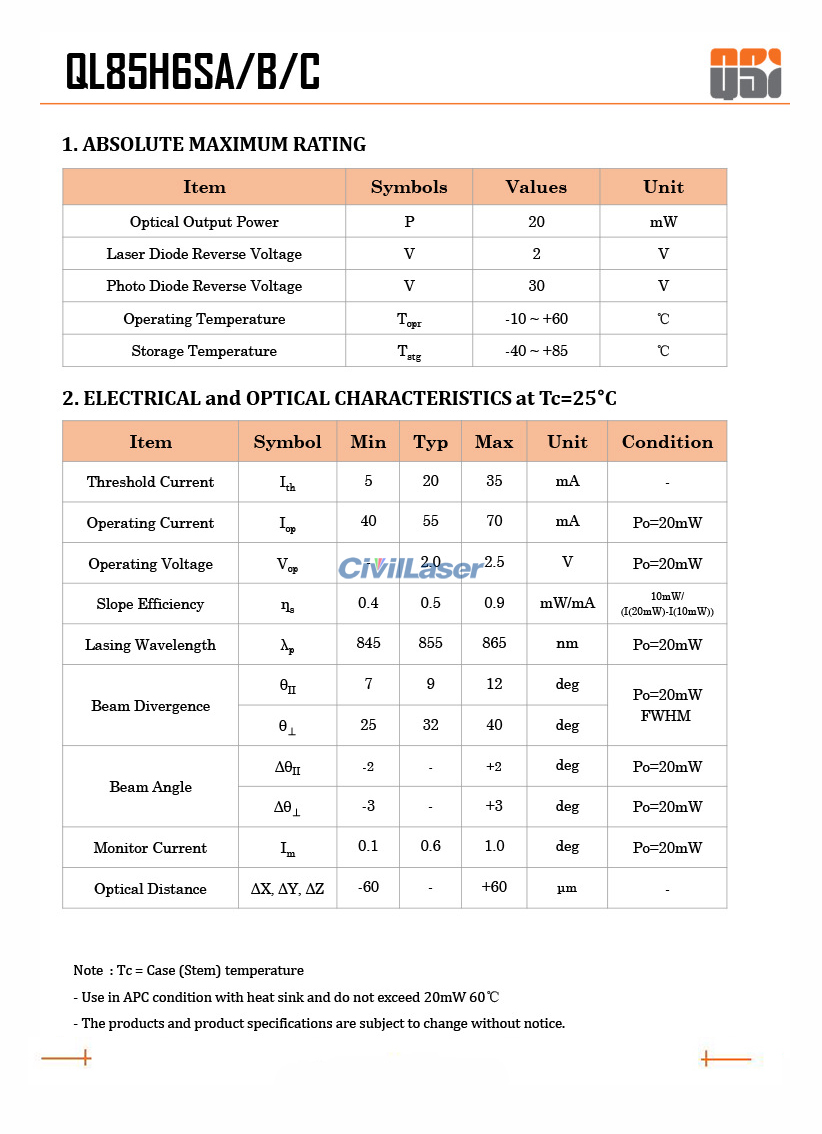

[Specification]
Product Name: Laser Diode
Model: QL85H6SX
Wavelength: 850nm
Output Power: 20mW
Laser Diode Reverse Voltage: 2V
Photo Diode Reverse Voltage: 30V
Operating Current: 55mA
Operating Voltage: 2.0V
Operating Temperature: -10~60℃
Storage Temperature: -40~85℃

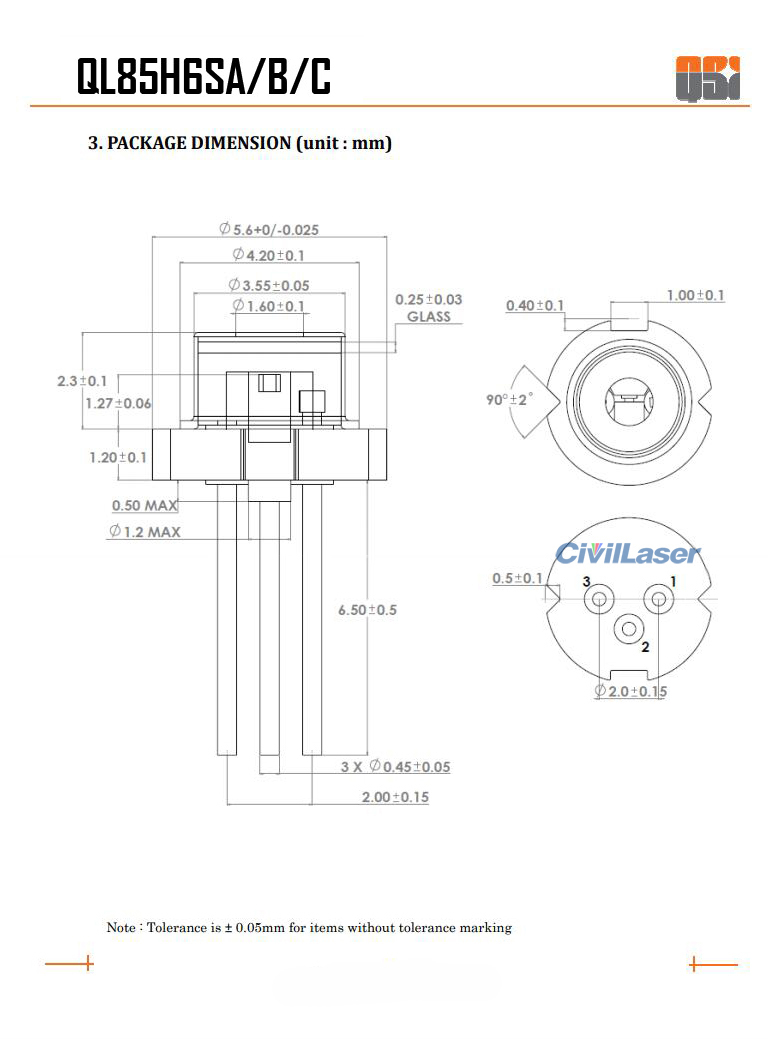

Package: TO18 (Φ5.6mm)
