IR Laser QL78E6SG-Q 780nm 6mW Infrared Laser Diode QSI LD

IR Laser QL78E6SG-Q 780nm 6mW Infrared Laser Diode QSI LD

[Features]
780nm infrared laser.
CW laser(Continuous wave).
Single transvers / TE mode laser.
5.6mm packages.

[Application]
Laser printer

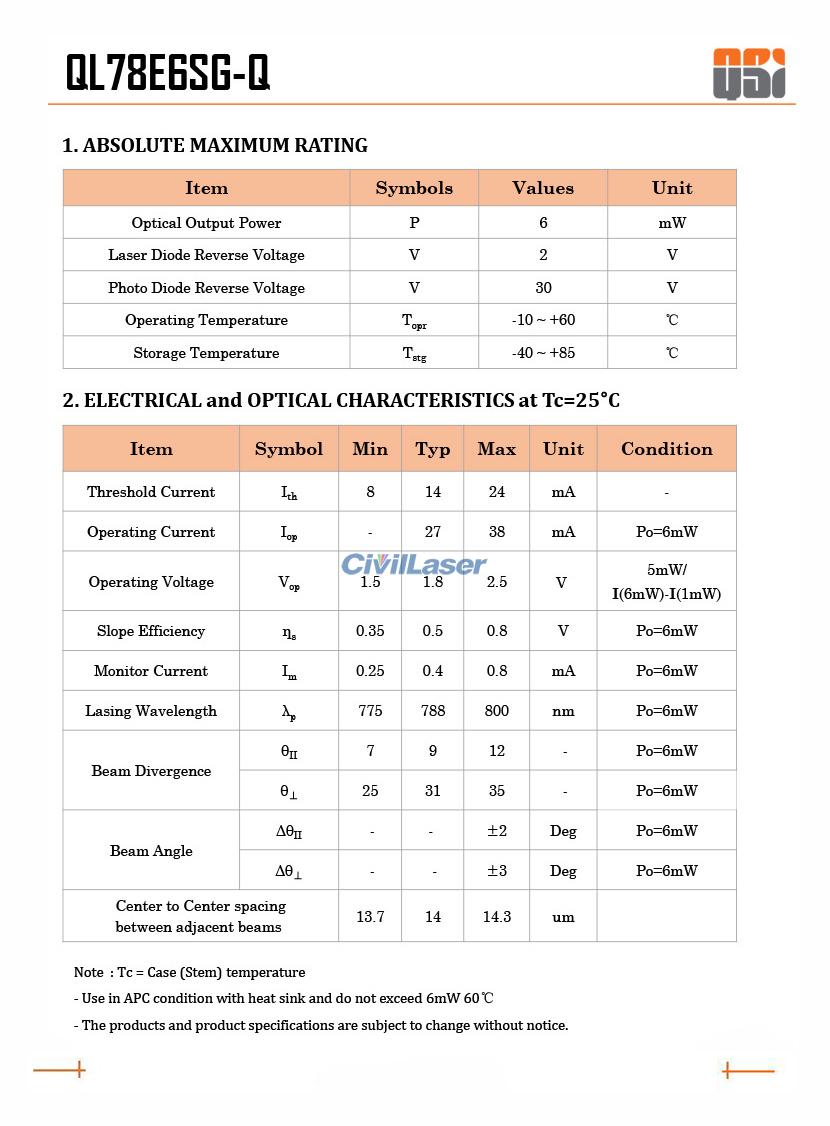

[Specification]
Product Name: Laser Diode
Model: QL78E6SG-Q
Wavelength: 780nm
Output Power: 6mW
Laser Diode Reverse Voltage: 2V
Photo Diode Reverse Voltage: 30V
Operating Current: 27mA
Operating Voltage: 1.8V
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃

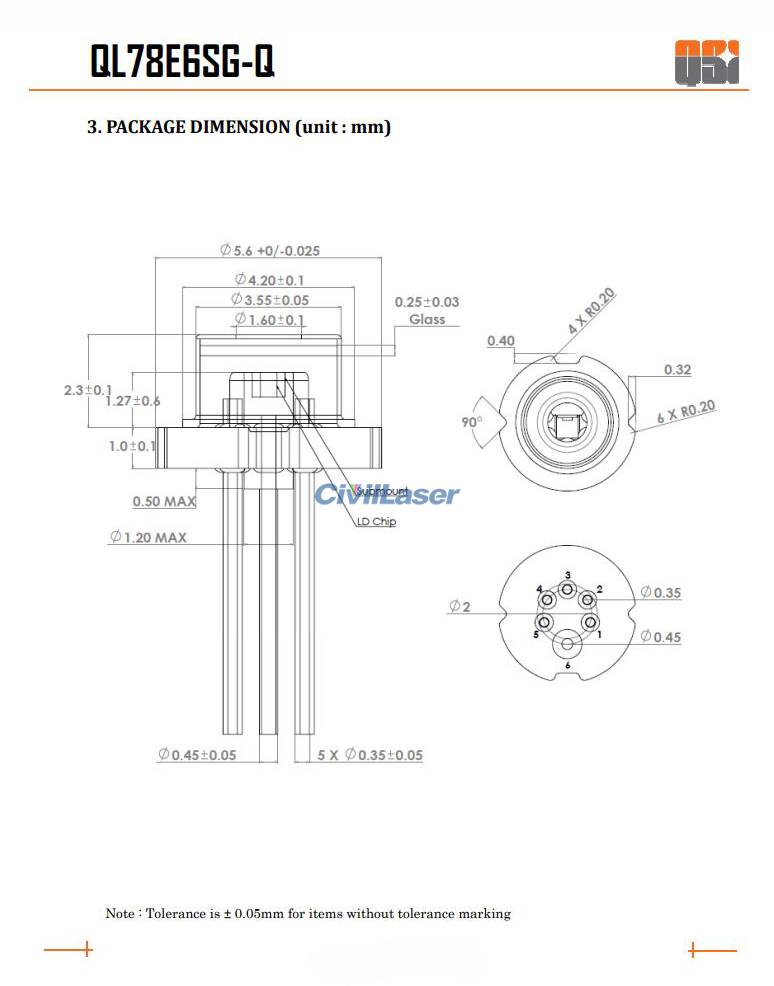

Package: TO18 (Φ5.6mm)
