671nm 50mW Red DPSS Laser Diode Pumped Solid State laser

Product 9/13

 Previous
 Return to the Product List
 Next

Starting at: $1,038.00

Please Choose:



Add to Cart:


671nm 50mW Red DPSS Laser  Diode Pumped Solid State laser with TTL Modulation

[Features]
Miniature size
Collimated straight beam
Easy use & maintenance free
Longlife operation
High efficiency
High reliability

[Specifications]
Product Name: 671nm  Red DPSS Laser
Laser Shape: Near Circular
Lead Time: 1~3 weeks, Custom product available!
Output Wavelength: 671nm
Output Power: 50mW
Spatial Mode: Near TEM00
Operating mode: CW or Modulation
Pointing Stability: <0.05 mrad
Beam Diameter(1/e2):  Near 2 mm
Divergence Angle: Near 1.0 mrad
Power Stability:  <±5% per 4 hrs
Light High: Near 25mm
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
MTTF(mean time to failure): 10,000 hrs
Laser Head dimension: Near 100(L)*40(W)*50(H)mm3 (Click here find detail)
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Standard Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Modulation: 0~30KHz Analog or TTL
Warranty: 1 Year

[APPLICATIONS]
Thermal printing
Material Inspection
Scanning Biochemistry
Lidar

[Package include]
1 x 671nm DPSS Laser
1 x Laser power supply


CivilLaser laser product image

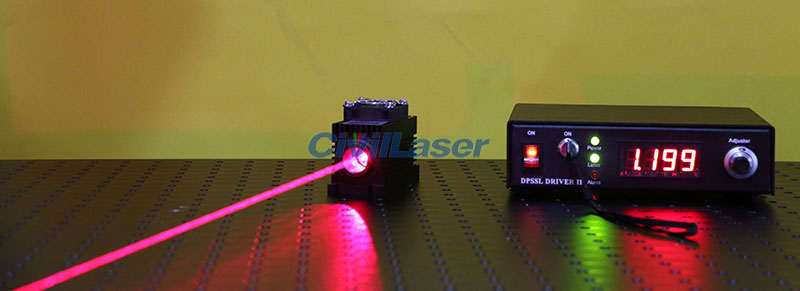

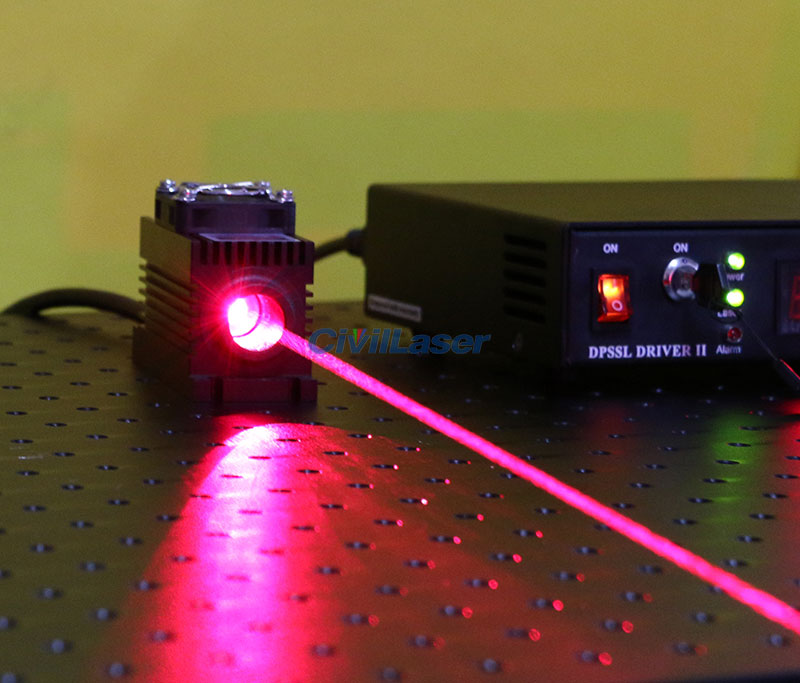

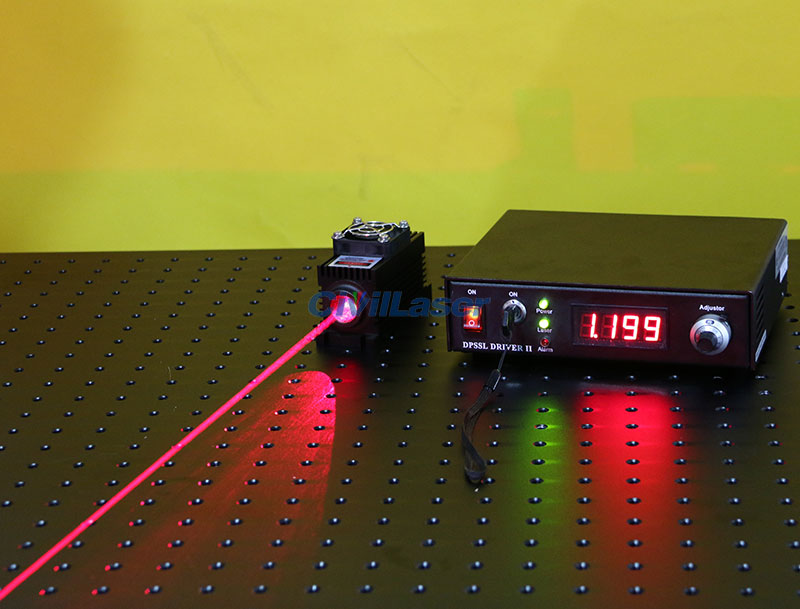

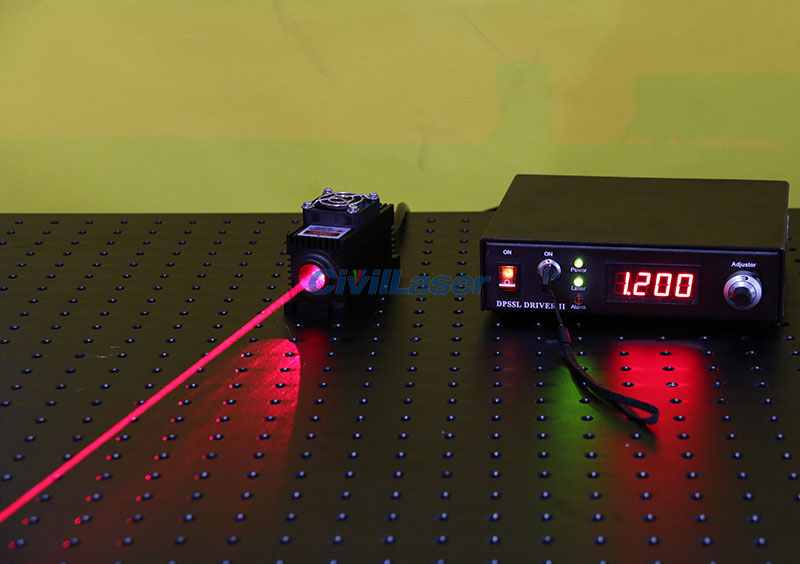

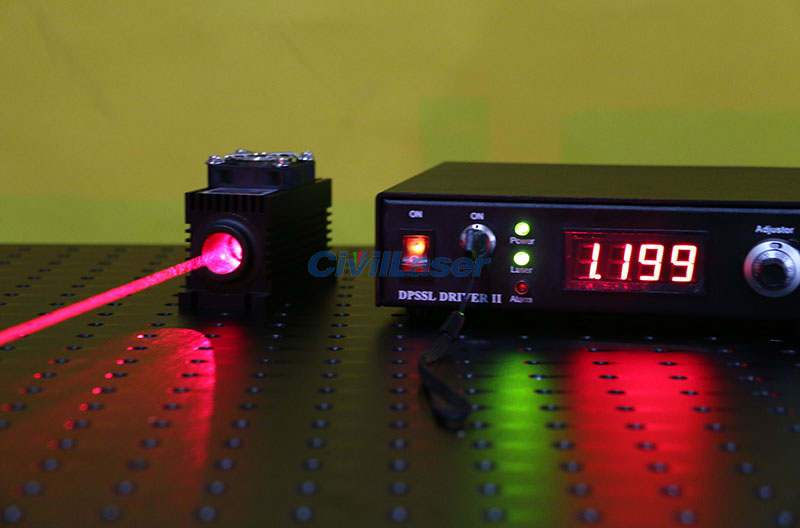

red solid state laser system

red solid state laser system

red solid state laser system

red solid state laser system

red solid state laser system

red solid state laser system

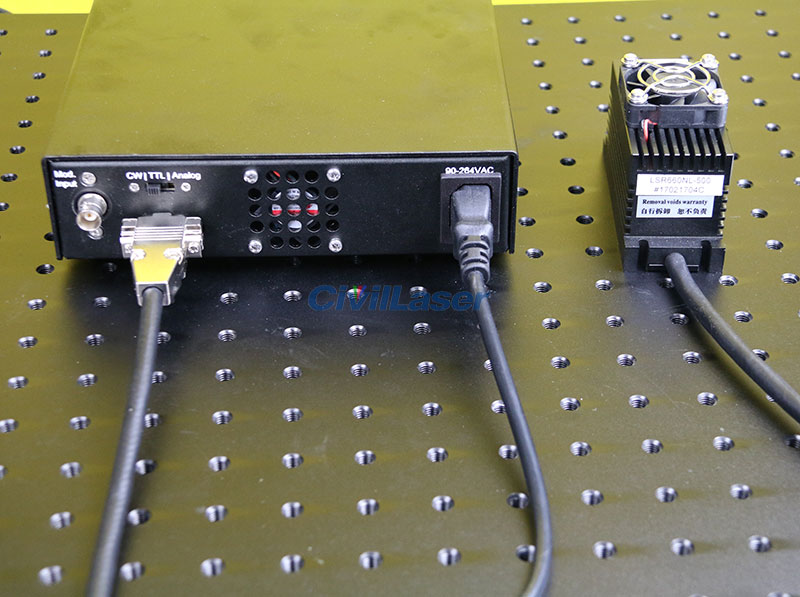

civillaser power supply
