800nm~2600nm 0.3mm InGaAs PIN Photodiode TO-46 Package
[Features]
High reliability, low dark current.
800-2600nm spectral range.
Active diameter 0.3mm.
Hermetic package TO46 Can or with receptacle or with fiber coupling.
[Applications]
Gas Analyzer
Environment measurement
Optical sensor, Temperature sensing
Covert IR sensing, Spectrography
Medical and Chemical analysis
Optical power meter, Space light detect equipment
Absolute maximum ratings:
| Parameter |
Symbol |
Value |
Unit |
| Operating temperature |
Top |
-40～+85 |
℃ |
| Storage temperature |
Tstg |
-50～+125 |
℃ |
| Forward current |
If |
5 |
mA |
| Reverse Voltage |
Vr |
0.4 |
V |
| Soldering temperature(time) |
Ts（10s） |
260 |
℃ |
Electrical and optical characteristics:(T=25℃)
| Parameter |
Symbol |
Unit |
Typical Value |
| Active diameter |
Φ |
mm |
0.3 |
| Spectral range |
λ |
nm |
800-2600 |

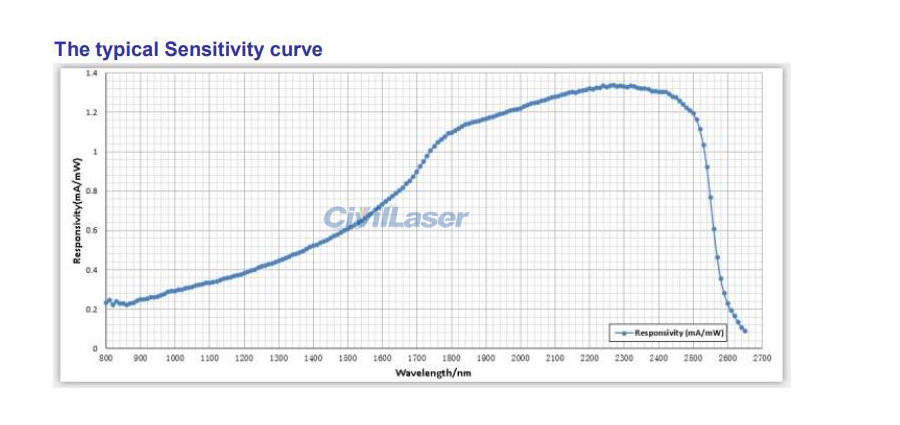

| Responsivity |
Re (VR=0.2V, λ=850nm) |
mA/mW |
0.21 |
| Re (VR=0.2V, λ=1310nm) |
mA/mW |
0.45 |
| Re (VR=0.2V, λ=2300nm) |
mA/mW |
1.3 |
| Re (VR=0.2V, λ=2600nm) |
mA/mW |
0.23 |
| Response time |
Tr (RL=50Ω,VR=0.2V) |
ns |
12 |
| Dark current |
Id (VR=0V) |
nA |
40 |
| Id (VR=0.2V) |
nA |
300 |
| Reverse Breakdown voltage |
VBR (IR=10μA) |
V |
2 |
| Junction capacitance |
Cj (f=1MHz, VR=0V) |
pF |
90 |
| Cj (f=1MHz, VR=0.2V) |
pF |
70 |
| Saturated Optical Power |
Ps(VR=0.2V) |
mW |
4 |
| Operating voltage |
VR |
V |
0-0.2 |
| Shunt impedance |
Rsh (VR=10mV) |
KΩ |
120 |
| Package |
Hermetic package TO46 Can or with receptacle or fiber coupling. |
Note:

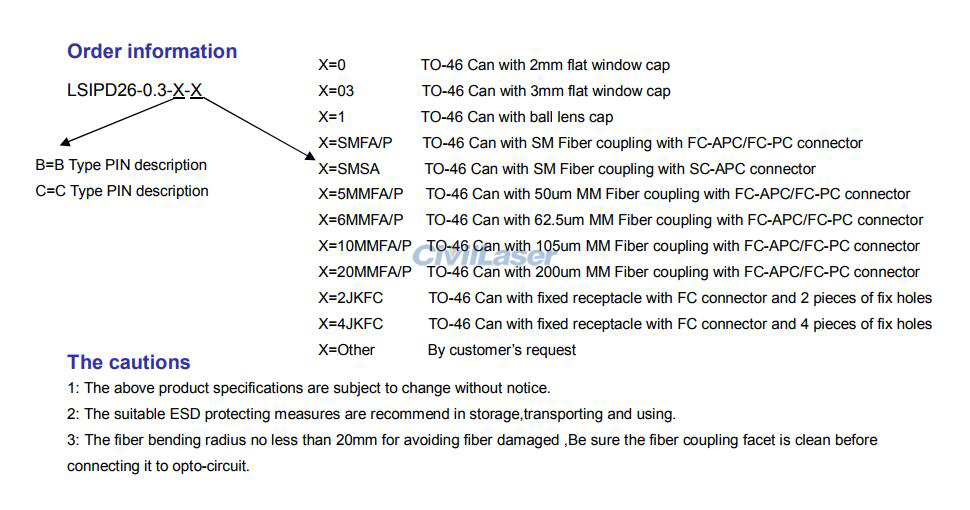

(1) The default is TO-46 Can package, please contact us if you need other intrefaces.
(2) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(3) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.
