500nm~880nm 0.25mm Visible Light PIN Photodiode TO46 Package
[Features]
High reliability, Ultra low dark current.
Active diameter 0.25mm.
Wavelength 500-880nm.
Blindness to IR light, without filter.
TO46 Can or Mini Can with receptacle or with fiber coupling.
[Applications]
Optical sensor
Optical power meter
Industrial automatic control
Science analysis and experiment
Space light detect equipment
Response spectrum testing
Absolute maximum ratings:
| Parameter |
Symbol |
Value |
Unit |
| Operating temperature |
Top |
-40～+85 |
℃ |
| Storage temperature |
Tstg |
-40～+100 |
℃ |
| Forward current |
If |
4 |
mA |
| Reverse Voltage |
Vr |
20 |
V |
| Soldering temperature(time) |
Ts（10s） |
260 |
℃ |
Electrical and optical characteristics:(T=25℃)
| Parameter |
Symbol |
Unit |
Typical Value |
| Active diameter |
Φ |
mm |
0.25 |
| Spectral range |
λ |
nm |
500-880 |

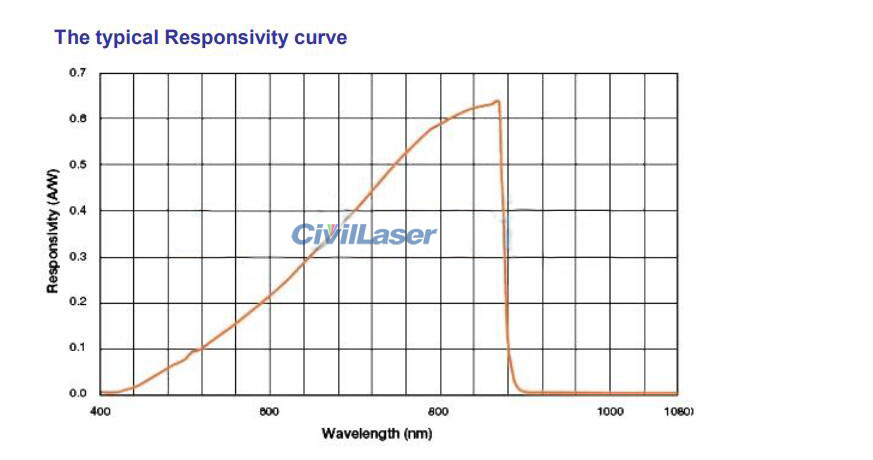

| Responsivity |
Re (VR=0V, λ=532nm) |
mA/mW |
0.10 |
| Re (VR=0V, λ=808nm) |
mA/mW |
0.55 |
| Response time |
Tr (RL=50Ω,VR=5V) |
ns |
0.4 |
| Dark current |
Id (VR=0V) |
pA |
0.1 |
| Id (VR=5V) |
pA |
1 |
| Reverse Breakdown voltage |
VBR (IR=10μA) |
V |
50 |
| Junction capacitance |
Cj (f=1MHz, VR=0V) |
pF |
40 |
| Cj (f=1MHz, VR=5V) |
pF |
3 |
| Saturated Optical Power |
Ps(VR=5V) |
mW |
5 |
| Operating voltage |
VR |
V |
0-10 |
| Shunt resistance |
Rsh (VR=10mV) |
GΩ |
100 |

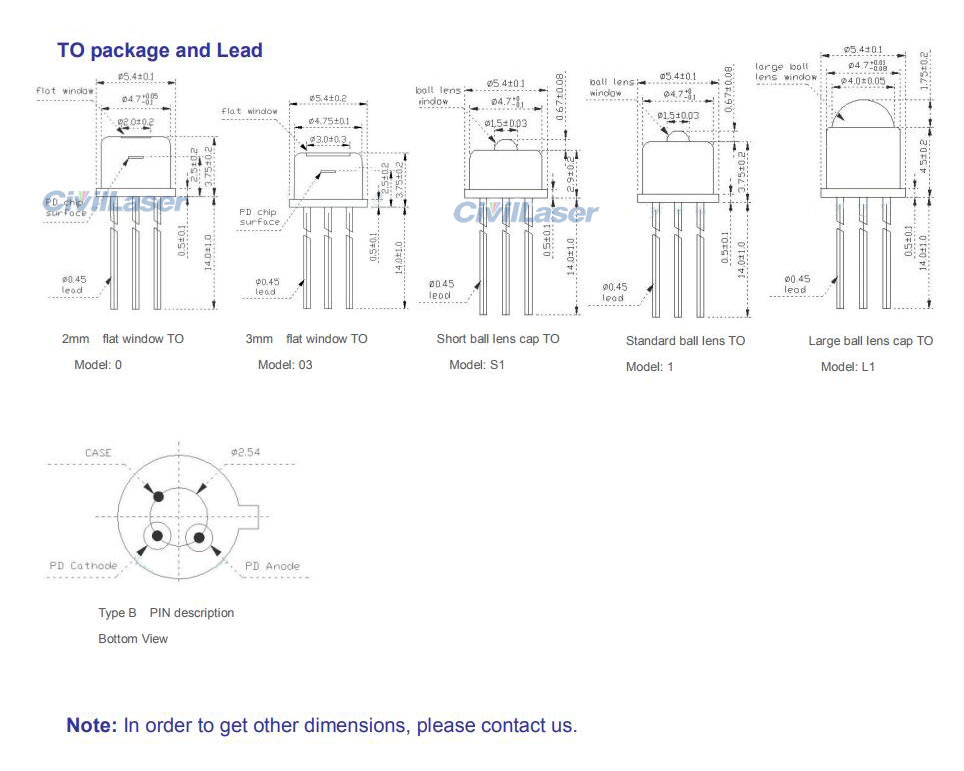

| Package |
TO46 Can or with receptacle or with fiber coupling. |
Note:

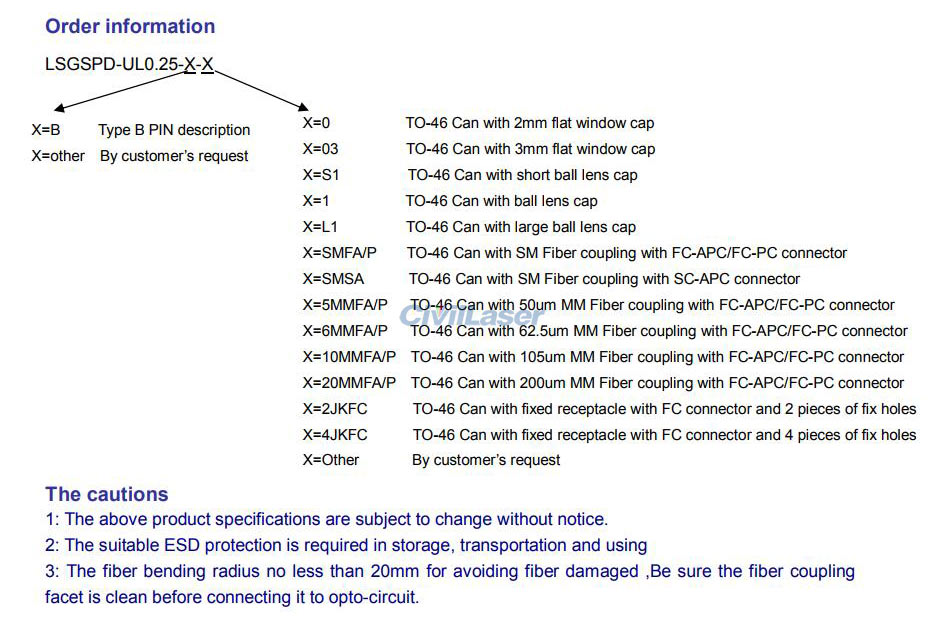

(1) The default is TO-46 Can package, please contact us if you need other intrefaces.
(2) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(3) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.
