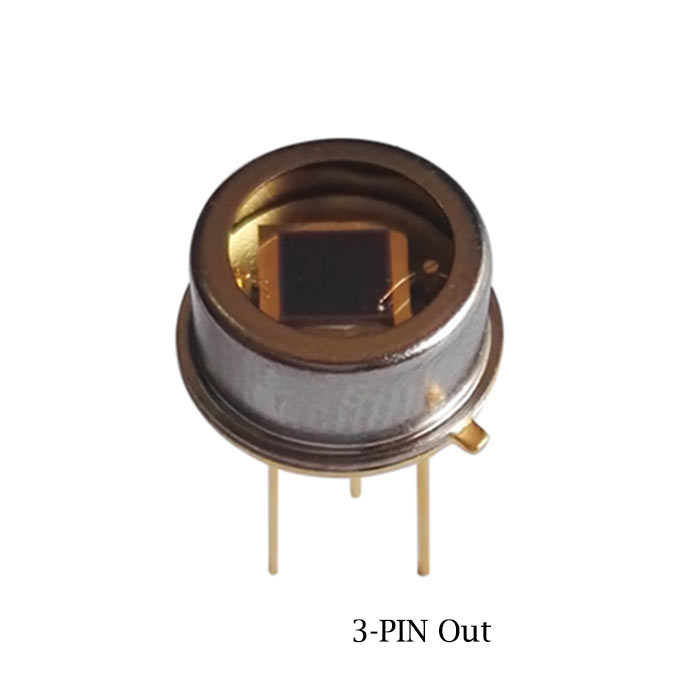

400nm~1100nm 2.5GHZ Fast Silicon PIN photodiode TO46 Can Package
[Features]
High reliability.
High speed up to 2.5 GHZ.
400-1100nm spectral range.

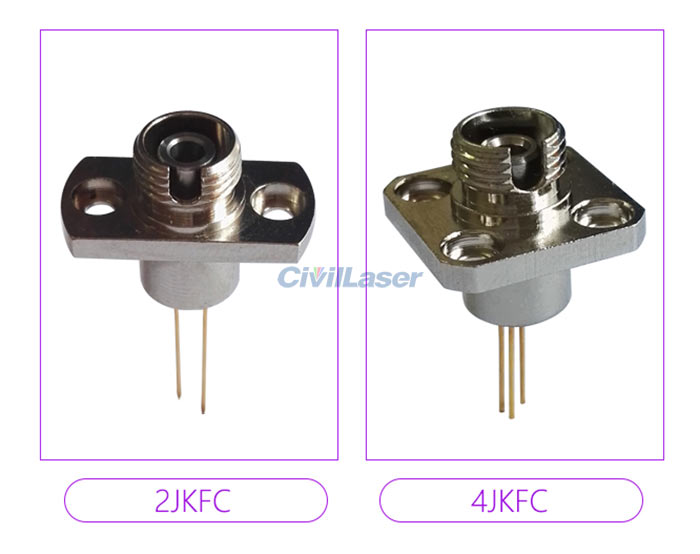

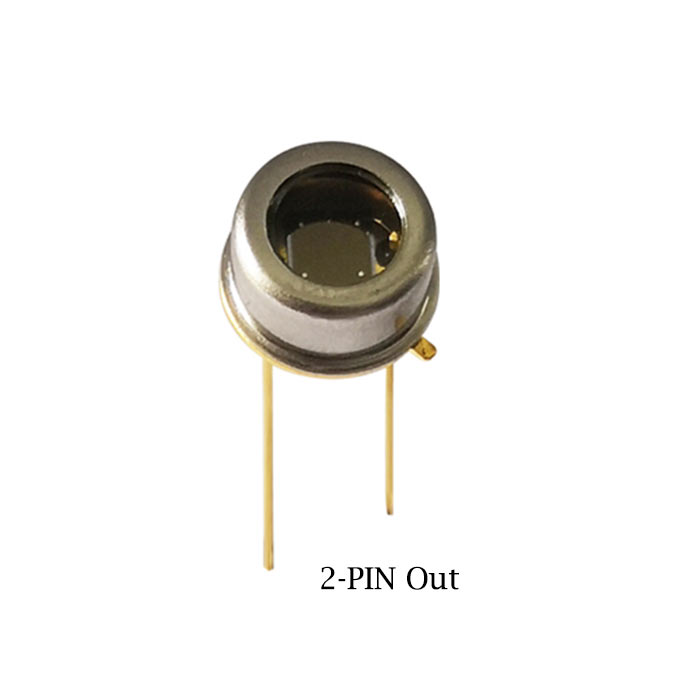

Low capacitanceHermetic TO46 Can or with receptacleor with fiber coupling.
[Applications]
Optical communications
Laser range finding and laser lidar
Industrial automatic control
Laser pulse test
Science analysis and experiment
Absolute maximum ratings:
| Parameter |
Symbol |
Value |
Unit |
| Operating temperature |
Top |
-40～+85 |
℃ |
| Storage temperature |
Tstg |
-40～+85 |
℃ |
| Forward current |
If |
3 |
mA |
| Reverse voltage |
Vr |
20 |
V |
| Soldering temperature(time) |
Ts（10s） |
260 |
℃ |
Electrical and optical characteristics:(T=25℃)
| Parameter |
Symbol |
Unit |
Typical Value |
| Active area |
Φ |
um |
200 |
| Spectral range |
λ |
nm |
400-1100 |

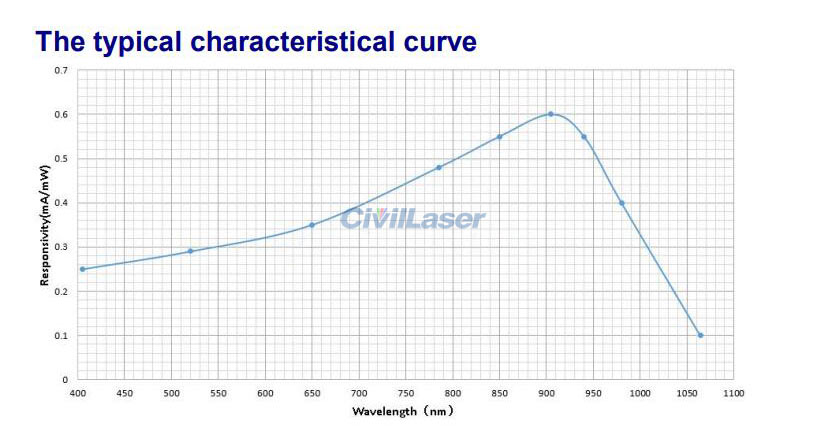

| Responsivity |
Re (VR=10V,λ=405nm ) |
mA/mW |
0.20 |
| Re (VR=10V,λ=650nm ) |
mA/mW |
0.35 |
| Re (VR=10V,λ=850nm ) |
mA/mW |
0.55 |
| Re (VR=10V,λ=1064nm ) |
mA/mW |
0.10 |
| Response time |
Tr (RL=50Ω,VR=10V) |
ps |
150 |
| Band width(-3dB) |
Tr (BW (RL=50Ω,VR=10V) |
GHZ |
2.5 |
| Dark current |
Id(VR=0V) |
pA |
0.1 |
| Id(VR=10V) |
pA |
100 |
| Reverse Breakdown voltage |
VBR (IR=10uA) |
V |
60 |
| Junction capacitance |
Cj (f=1MHz, VR=0V) |
pF |
20 |
| Cj (f=1MHz, VR=10V) |
pF |
1.0 |
| Saturated Optical Power |
Ps(VR=10V) |
mW |
5 |
| Operating voltage |
VR |
V |
0-15 |
| Shunt resistance |
Rsh (VR=10mV) |
GΩ |
100 |

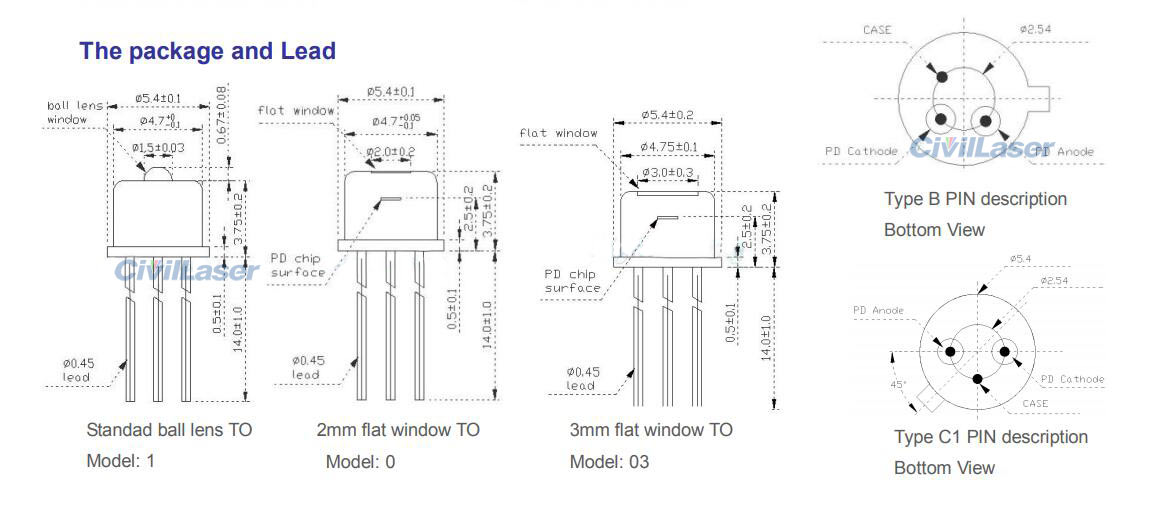

| package |
HermeticTO46 Can or with receptacle or with fiber coupling . |

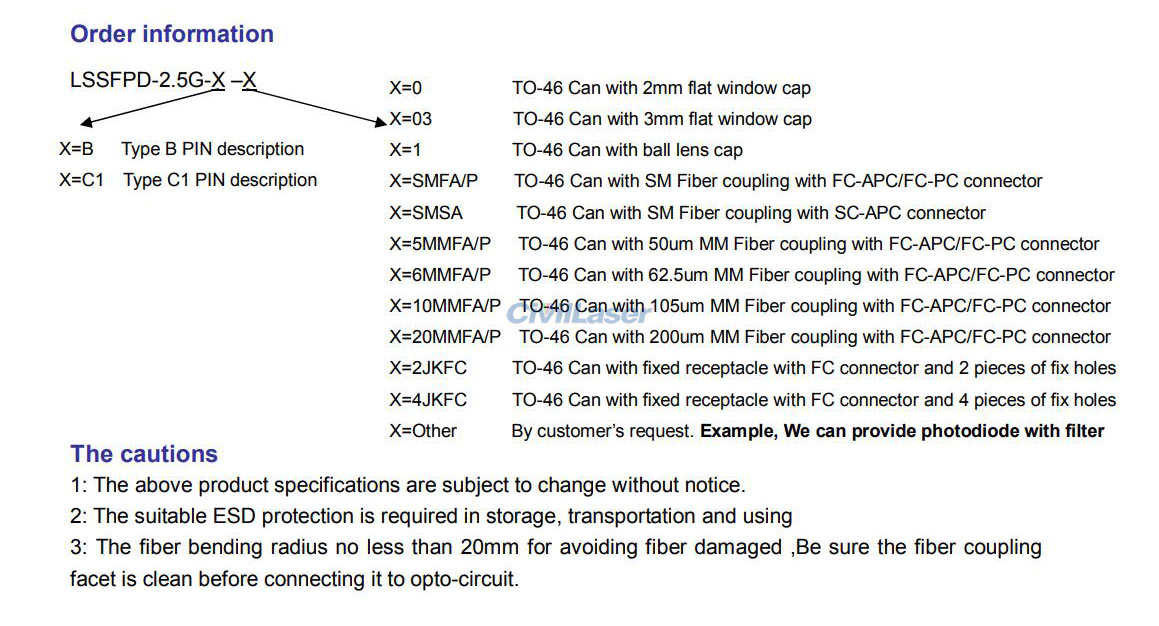

Note:
(1) The default is TO-46 Can package, please contact us if you need other models.
(2) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(3) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.
