400nm~1100nm 0.5mm Fast Silicon PIN Photodiode TO46 Package
[Features]
High reliability, low dark current.
400-1100nm spectral range.
Active diameter 0.5x0.5mm.
Very fast rise time up to 250ps.

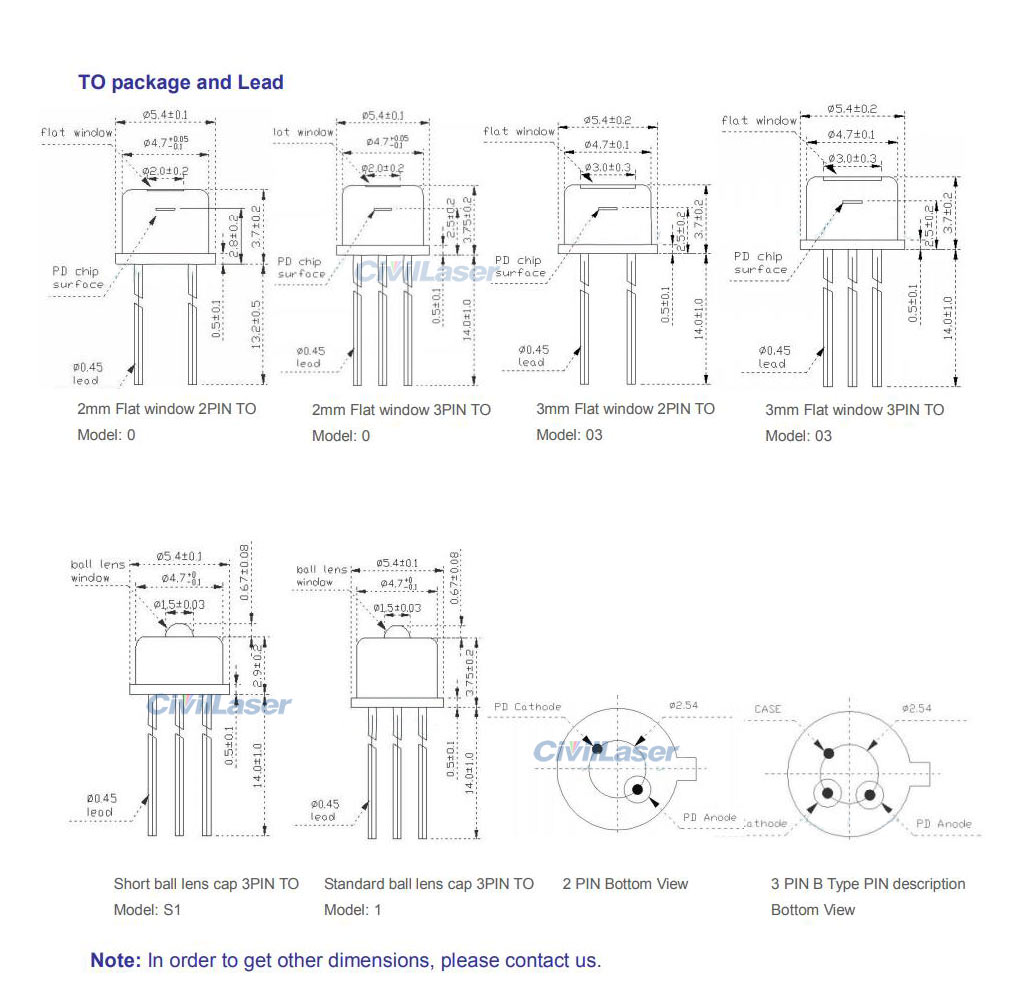

Hermetic TO46 Can or with receptacle or with fiber coupling.
[Applications]
Optical sensor
High speed light pulse test
Laser finding range and laser lidar
Industrial automatic control
Space light detect equipment
Absolute maximum ratings:
| Parameter |
Symbol |
Value |
Unit |
| Operating temperature |
Top |
-40～+85 |
℃ |
| Storage temperature |
Tstg |
-40～+100 |
℃ |
| Forward current |
If |
5 |
mA |
| Reverse voltage |
Vr |
30 |
V |
| Soldering temperature(time) |
Ts（10s） |
260 |
℃ |
Electrical and optical characteristics:(T=25℃)
| Parameter |
Symbol |
Unit |
Typical Value |
| Active diameter |
Φ |
mm |
0.5*0.5 |
| Spectral range |
λ |
nm |
400-1100 |

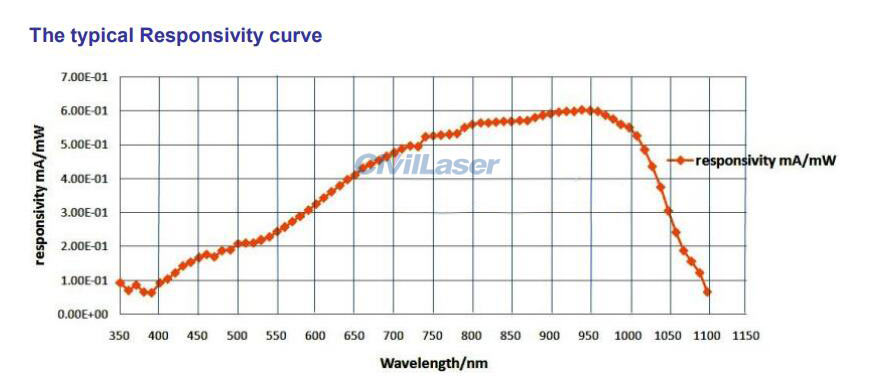

| Responsivity |
Re (VR=5V,λ=405nm ) |
mA/mW |
0.1 |
| Re (VR=5V,λ=650nm ) |
mA/mW |
0.35 |
| Re (VR=5V,λ=850nm ) |
mA/mW |
0.45 |
| Re (VR=5V,λ=1064nm ) |
mA/mW |
0.20 |
| Response time |
Tr (RL=50Ω,VR=5V) |
ps |
250 |
| Dark current |
ID(0V) |
pA |
0.1 |
| ID(5V) |
pA |
50 |
| Reverse Breakdown voltage |
VBR (IR=10uA) |
V |
120 |
| Junction capacitance |
Cj (f=1MHz, VR=0V) |
pF |
15 |
| Cj (f=1MHz, VR=5V) |
pF |
1.5 |
| Saturated Optical Power |
Ps(VR=5V) |
mW |
7 |
| Operating voltage |
VR |
V |
0-20 |
| Shunt resistance |
Rsh (VR=10mV) |
GΩ |
100 |
| package |
Hermetic TO46 Can or with receptacle or with fiber coupling. |
Note:

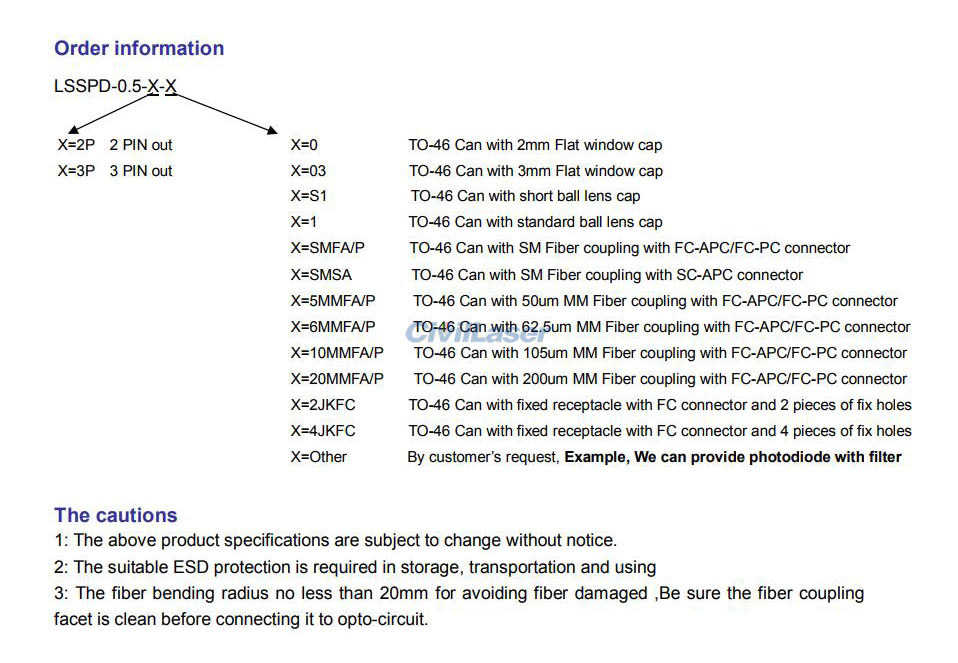

(1) The default is TO-46 Can package, please contact us if you need other models.
(2) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(3) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.
