355nm 3000mW UV DPSS Laser Pulsed Laser With Power Supply
[Specifications]
Product Name: 355nm UV laser pulsed laser with power supply
Lead Time: 2~4 weeks
Output Wavelength: 355nm±1nm
Output Power(Average): 3000mW@30KHz
Operating Mode: Pulsed laser
Single Pulse Energy: 100μJ@30kHz
Repeat frequency: 30~100kHz
Pulse Width: <20ns@30KHz
Spatial Mode: TEM00(M2<1.3)
Beam Diameter(1/e2): 0.5±0.1mm
Power Stability: <3% RMS over 8 hours
Pulse stability: <3% RMS over 10mins
Light spot stability: <50μrad
Beam Divergence: <2mrad (full angle)
Spot roundness: >90%
Control method: RS232, Gate, Trigger
Cooling method: Air-cooling
Polarization direction: Horizontal
Polarization: >100:1
Optimum Operating Temperature: 15~35℃
Relative humidity: 10% ~ 80%
Warm Up Time:<15 minutes
Operating Voltage: 90V ~ 260V
Warranty: 1 Year
Note:

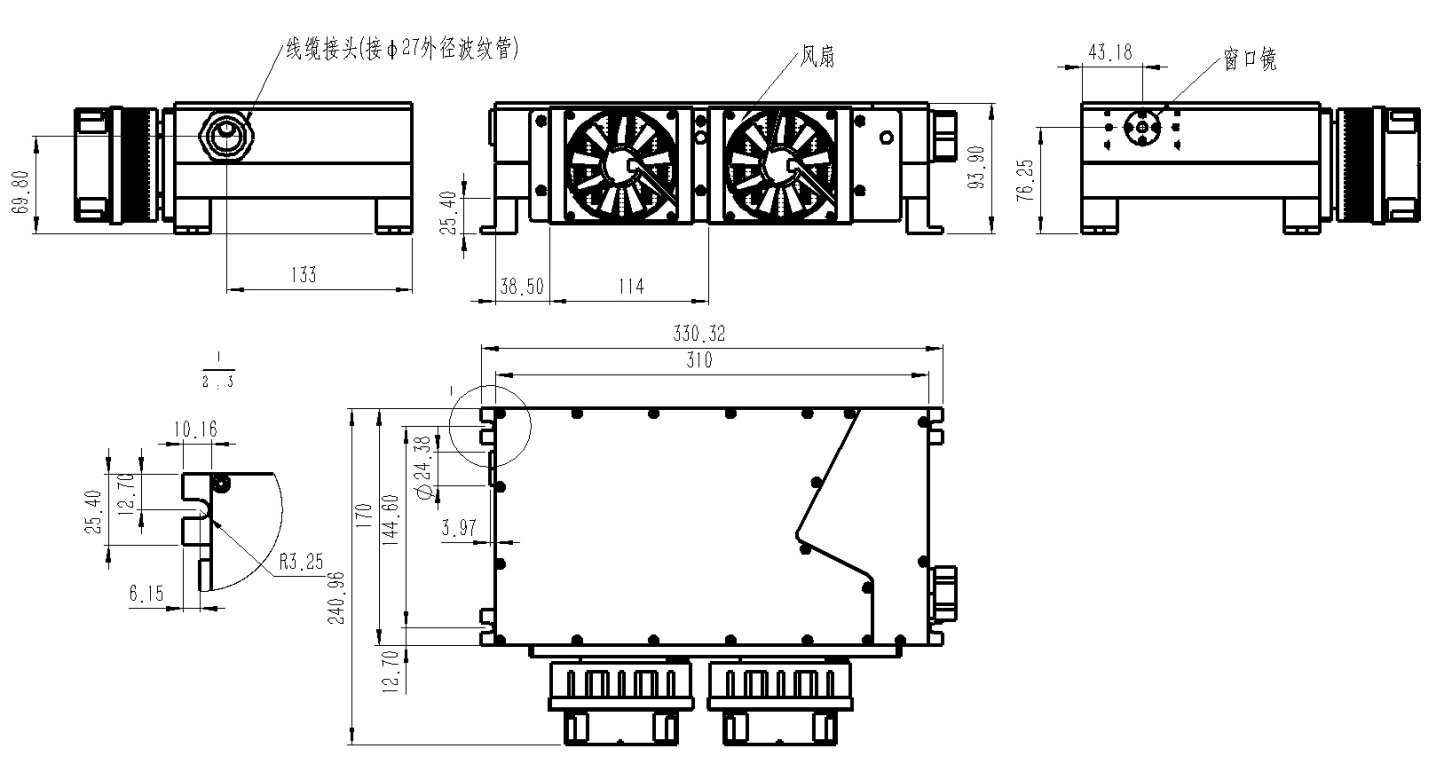

From 2022.1.1, the model of 355nm 3w high power pulsed laser will be changed to the following size.

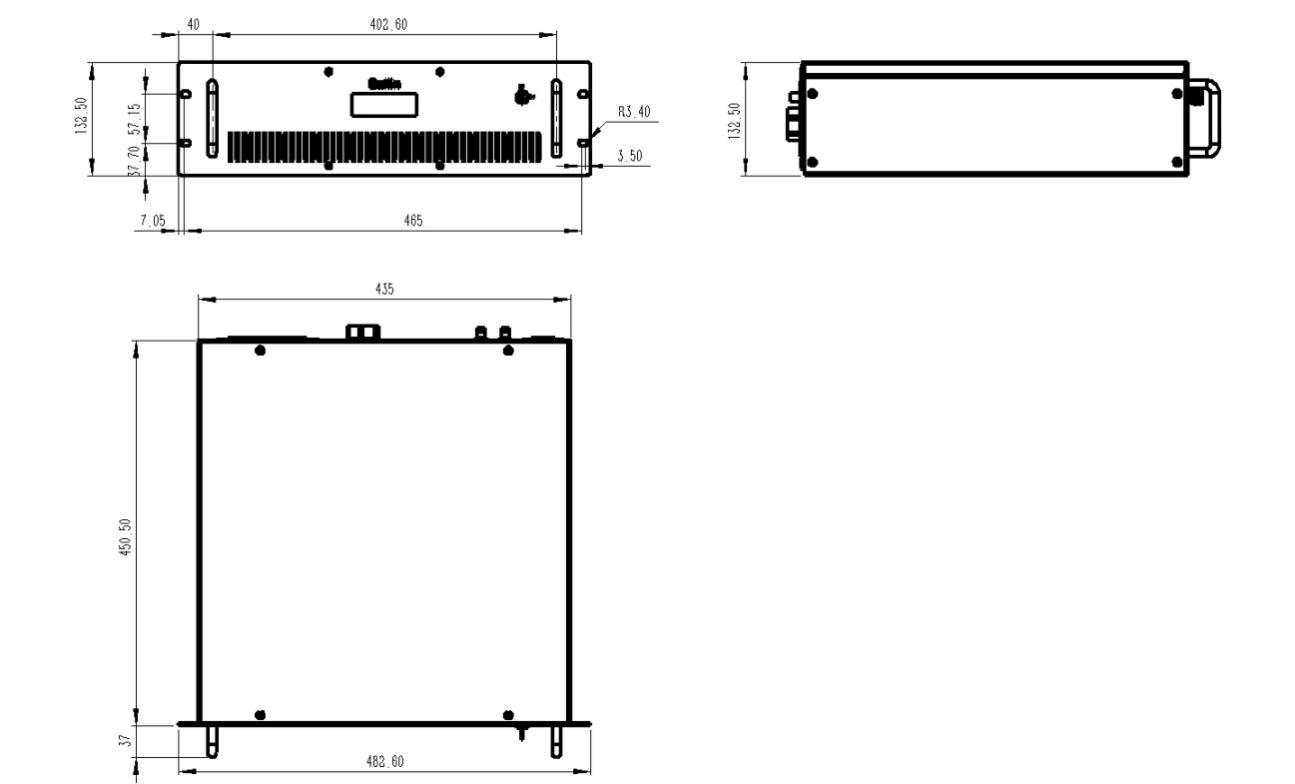

The following old models are only suitable for 355nm low-power pulsed lasers.
