210nm~280nm 1.5mm UVC Photodetector Low Dark Current Photodiode
[Features]
Blindness to visible light without optical filter.
Wavelength 210-280nm.
High reliability，low dark current.
Top illumination planar PD.
Active diameter 1.5mm.
Hermetic TO46 Can with UV flat-window cap with receptacle.
[Applications]
UV sensors
Pure UV-C Monitoring
Sterilization Lamp Monitoring
Environmental technology
Medical applications
Industrial sensors
Inspecting and controlling of UV radiation.
Absolute maximum ratings:
| Parameter |
Symbol |
Value |
Unit |
| Operating temperature |
Top |
-30～+80 |
℃ |
| Storage temperature |
Tstg |
-40～+90 |
℃ |
| Forward current |
If |
1 |
mA |
| Reverse voltage |
Vr |
2 |
V |
| Soldering temperature(time) |
Ts（10s） |
260 |
℃ |
Electrical and optical characteristics:(T=25℃)
| Parameter |
Symbol |
Unit |
Value (typ.) |
| Active diameter |
|
mm |
1.5*1.5 |

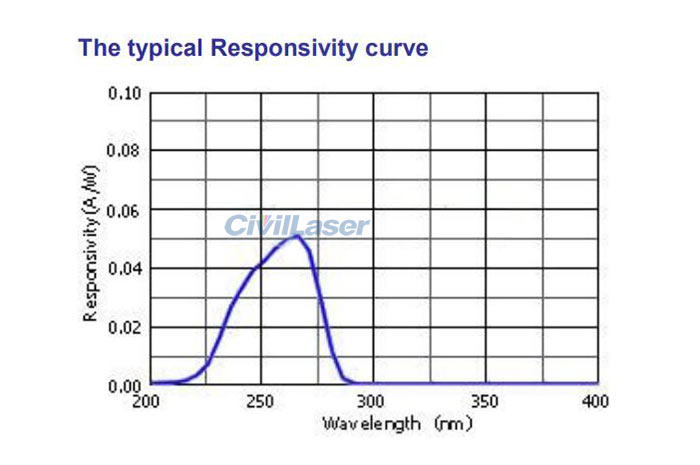

| Spectral range |
λ |
nm |
210-280(10% Rp) |
| Responsivity |
Re (VR=0V,λ=254nm ) |
mA/mW |
0.05 |
| Dark current |
ID(VR=0.5V) |
pA |
10 |
| Reverse Breakdown voltage |
VBR (IR=10uA) |
V |
3 |
| Junction capacitance |
Cj (f=1MHz, VR=0V) |
pF |
60 |
| Saturated Optical Power |
Ps(VR=0.5V) |
mW |
8 |
| Operating voltage |
VR |
V |
0-0.5 |

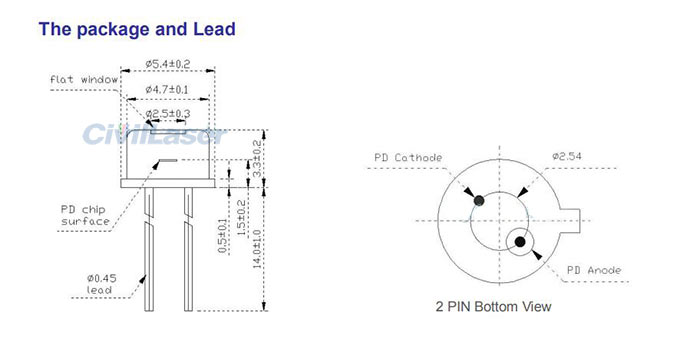

| Package |
Hermetic TO46 Can with UV flat-window cap or with receptacle. |

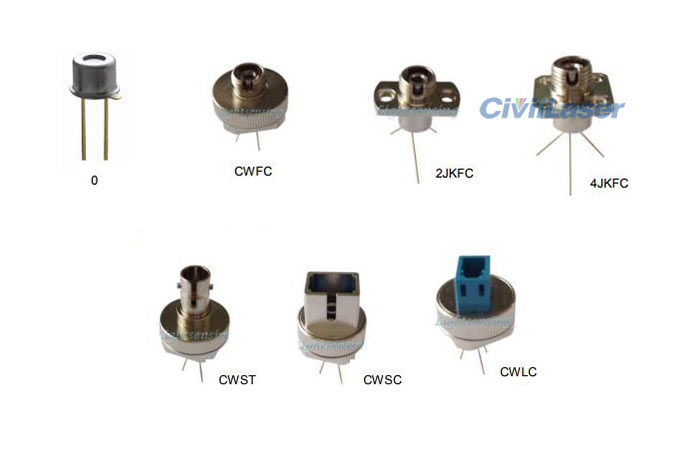

Order information: LSGPD-UVC1.5-X
X=0 TO-46 Can with UV flat window cap (Default)
X=CWFC TO-46 Can with replaceable receptacle with FC connector.
X=CWSC TO-46 Can with replaceable receptacle with SC connector.
X=CWLC TO-46 Can with replaceable receptacle with LC connector.
X=CWST TO-46 Can with replaceable receptacle with ST connector.
X=2JKFC TO-46 Can with fixed receptacle with FC connector and 2 pieces of fix holes.
X=4JKFC TO-46 Can with fixed receptacle with FC connector and 4 pieces of fix holes.
X=Other By customer’s request.
Note:
(1) The default is TO-46 Can package, please contact us if you need other models.
(2) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(3) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.
