YVO4 Crystal Yttrium Vanadate Birefringent Crystals Customizable
Note:
1. This is a customized product.
2. $55 is a deposit, not the final price of the product.
3. The main factors affecting the price: quantity, size, processing index.
4. Please provide crystal processing drawings or crystal size, membranes, quantity, processing index. (Contact us）
5. Crystal customization time: 3~6 weeks.
6. Warranty: 1 year

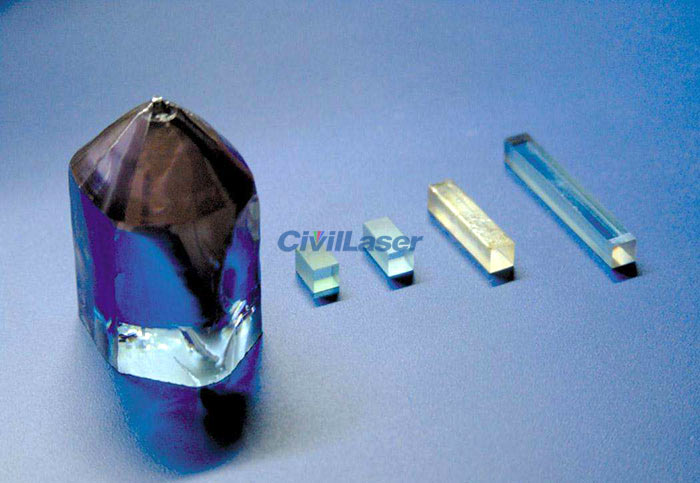

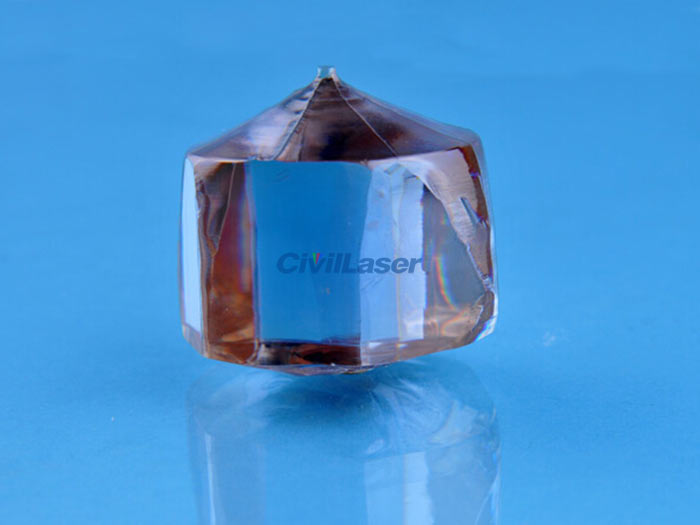

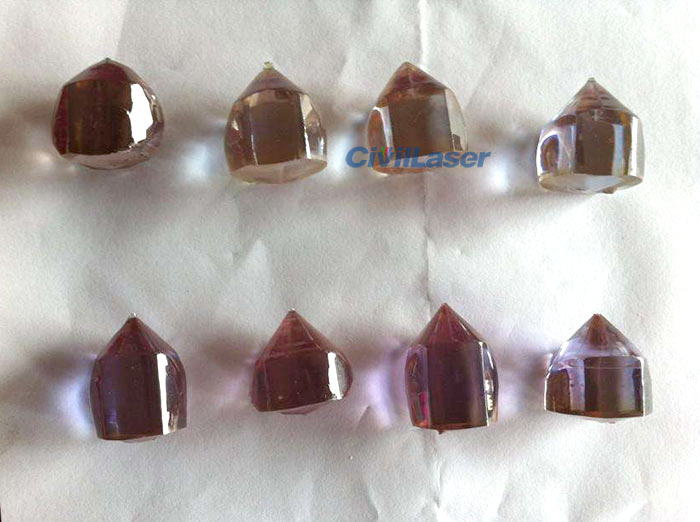

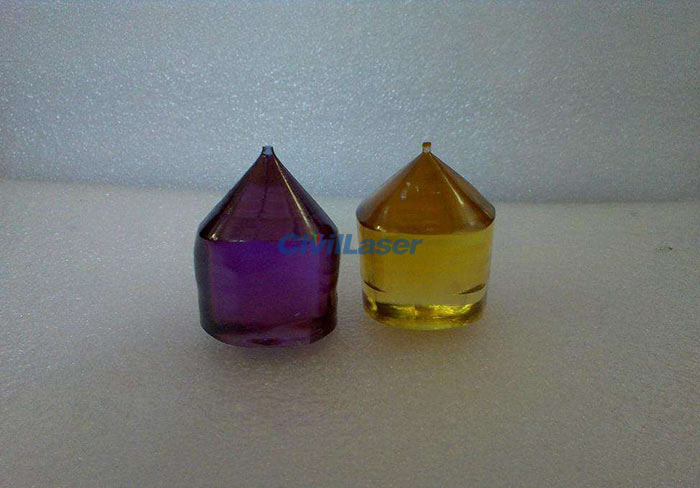

The Yttrium Orthovanadate (YVO4) is a positive uniaxial crystal grown with Czochralski method. It has good temperature stability and physical and mechanical properties. It is ideal for optical polarizing components because of its wide transparency range and large birefringence. It is an excellent synthetic substitute for Calcite (CaCO3) and Rutile (TiO2) crystals in many applications including fiber optic isolators and circulators, interleavers, beam displacers and other polarizing optics(refer to table 1).
Table 1.Comparison of basic properties betweenYVO4 and Other Birefringent Crystals.
| |
YVO4 |
TiO2 |
CaCO3 |
LiNbO3 |
| Thermal Expansion (/℃) |
c-axis |
11.4x10^-6 |
9.2x10^-6 |
26.3x10^-6 |
16.7x10^-6 |
| a-axis |
4.4x10^-6 |
7.1x10^-6 |
5.4x10^-6 |
7x10^-6 |
| Refractive Index |
no |
1.9447@1550nm |
2.454@1530nm |
1.6346@1497nm |
2.2151@1440nm |
| ne |
2.1486@1550nm |
2.710@1530nm |
1.4774@1497nm |
2.1413@1440nm |
| Birefringence(ne-no) |
0.2039@1550nm |
0.256@1530nm |
-0.1572@1497nm |
-0.0738@1440nm |
| Mohs Hardness |
5 |
6.5 |
3 |
5 |
| Deliquescence |
None |
None |
Weak |
None |
| Transparency range |
0.4-5μm |
0.4-5μm |
0.35-2.3μm |
0.4-5μm |
Nd:YVO4 specification:
| Prameter |
Value |
| Dimension Tolerance |
±0.1mm |
| Flatness |
λ/10@ 632.8nm |
| Wavefront distortion |
λ/10@ 632.8nm |
| Surface quality |
10/5 per MIL-O-13830B |
| Parallelism |
10″ |
| Perpendicularity |
10′ |
| Bevel/chamfer |
<0.1mm@45deg. |
| Chips |
<0.1mm |
| Clear Aperture |
>95% |
| Coating |
AR/HR/PR coating upon customer’s request. |
| Damage Threshold |
750MW/CM² at 1064nm, TEM00, 10ns, 10Hz |
| Warranty |
One year under proper use |
