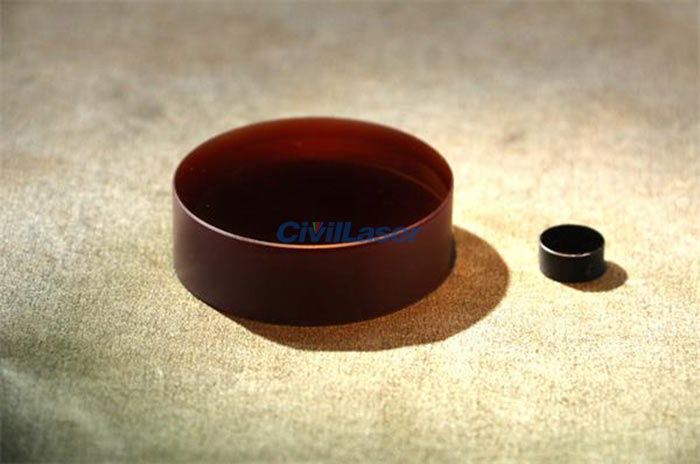

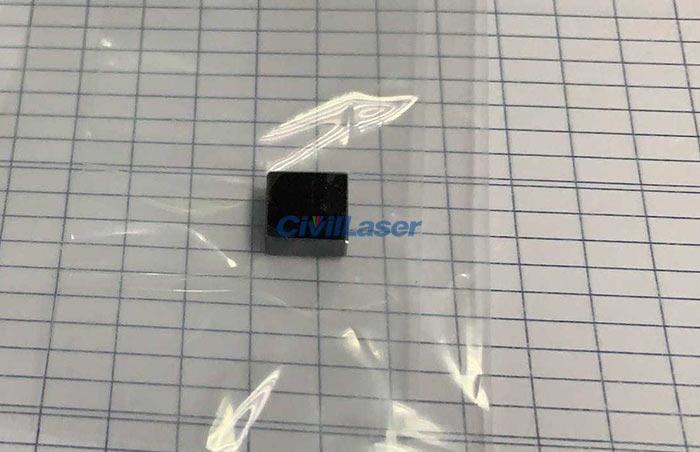

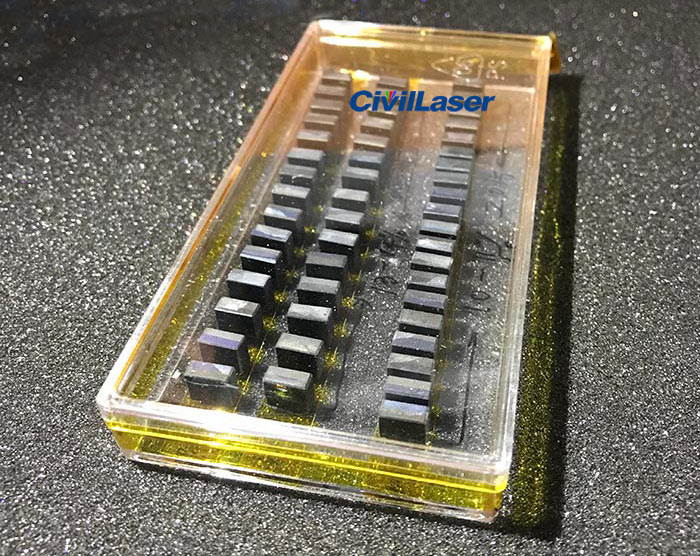

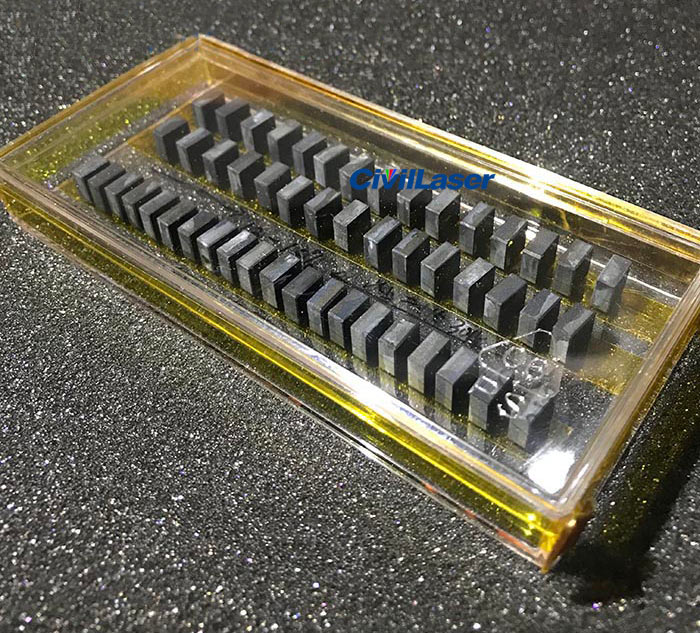

Cr⁴+:YAG Laser Crystal Chromium Doped Yttrium AIuminum Garnet Crystals Customizable
Cr⁴+:YAG (Y3Al5O12) is an ideal material for passive Q-switching of Nd:YAG and other Nd and Yb doped lasers in the wavelength range of 0.8 to 1.2 mm. One of the remarkable features of Cr4+:YAG is high damage threshold (better than 500 MW/cm2). Passive Q-Switching is preferred for simplicity of manufacturing and operation, low cost and reduced system size and weight.
Note:
1. This is a customized product.
2. $55 is a deposit, not the final price of the product.
3. The main factors affecting the price: quantity, size, processing index.
4. Please provide crystal processing drawings or crystal size, membranes, quantity, processing index. (Contact us）
5. Crystal customization time: 3~6 weeks.
6. Warranty: 1 year
Basic Properties:
| Chemical Formula |
Cr⁴+:Y3Al5O12 |
| Crystal Structure |
Cubic garnet |
| Recovery time |
8.5 μs |
| Hardness |
8.5 Mohs |
| Density |
4.56 g/cm³ |
| Thermal conductivity |
12.13 W/m/K |
| Refractive index |
1.82 @ 1064nm |
| Ground state absorption cross section |
σs1=4.3x10-18cm² |
| Excited state absorption cross section |
σs2=8.2x10-19cm² |
| Fluorescence lifetime |
3.4 μs |
Cr:YAG Specifications:
| Prameter |
Value |
| Orientation |
The rod axis is along [100] within5°,[111] and [110] within 5° |
| Cr4+ concentration |
0.5 mol% ~ 3 mol% |
| Aperture |
2x2 ~ 20x20 mm |
| Length |
0.1 ~ 12 mm |
| Initial transmission |
5% ~ 99% |
| Angle tolerance |
Δθ< ± 0.5°; Δφ< ±0.5° |
| Flatness |
λ /8 @ 633 nm |
| Parallelism |
20 arc sec |
| Perpendicularity |
5 arc minutes |
| Surface finishing |
20/10 scratch/dig to MIL-O-13830A |
| Wavefront distortion |
less than λ/8 @ 633 nm |
| Coating |
AR/HR/PR coating upon customer’s request. |
| Quality Warranty Period |
One year under proper use |
Note: When ordering Cr⁴+:YAG crystal, please specify the aperture, initial transmission(To) and coatings.
About Cr⁴+:YAG crystals price:
| Concentration |
Size |
Membranes |
Price (1~5 pcs) |
Price (>10 pcs) |
| T=20% |
3*3*T |
S1/S2:AR@1064nm |
$98 |
$85 |
| Note |
For prices of other customized crystals, please contact us. |
