Bonding Crystals Laser Crystal Customizable Crystals Bonding
Note:
1. This is a customized product.
2. $55 is a deposit, not the final price of the product.
3. The main factors affecting the price: quantity, size, processing index.
4. Please provide crystal processing drawings or crystal size, membranes, quantity, processing index. (Contact us)
5. Crystal customization time: 3~6 weeks.
6. Warranty: 1 year
Bonding (Diffusion bonded) crystals consist of one laser crystal and one or two undoped material. They are combined by optical contact method and further bonded under high temperature. Diffusion Bonded Crystal helps to decrease thermal lens effect considerably.
[Features]
1. Reduced thermal lens effect.
2. Improve light-to-light conversion efficiency.
3. To improve the anti-damage threshold.
4. Improve the laser output beam quality.
5. Reduced volume.

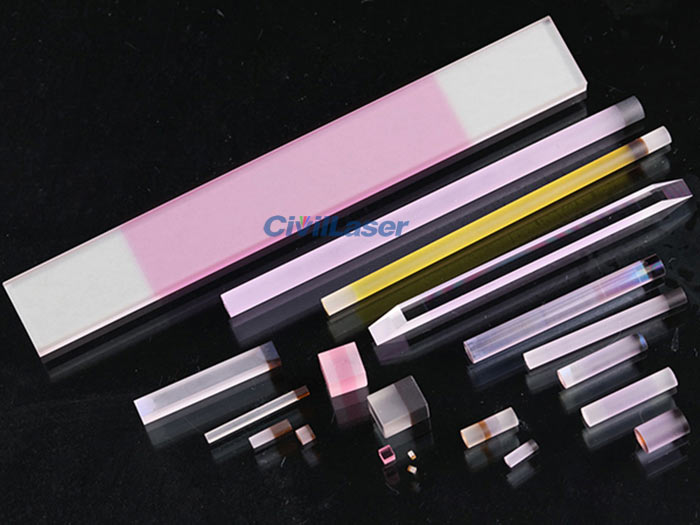

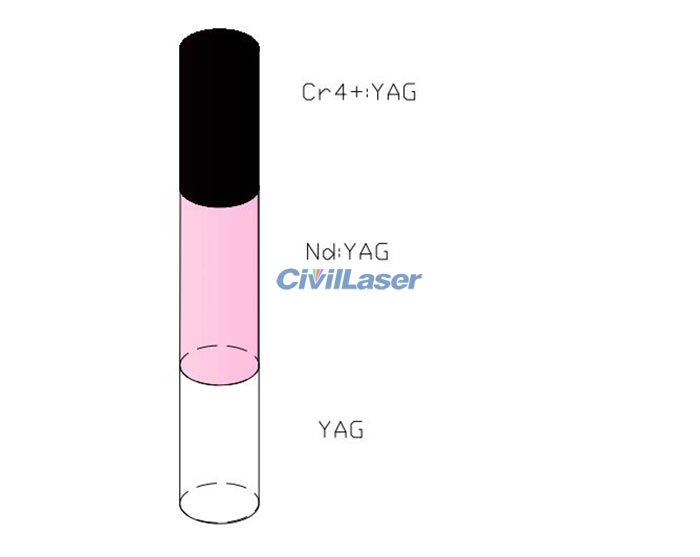

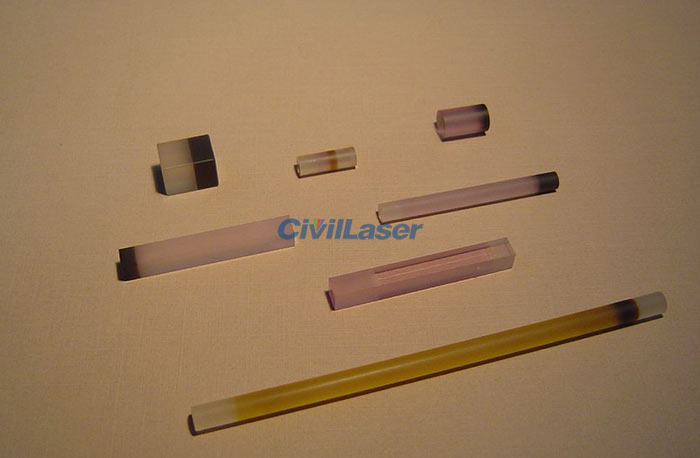

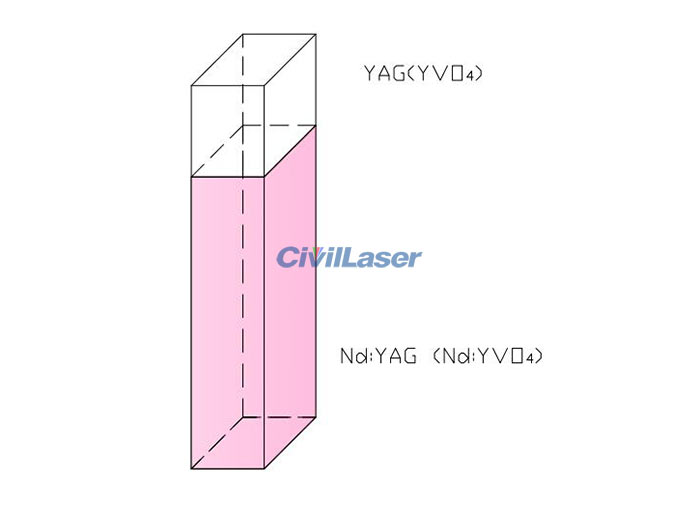

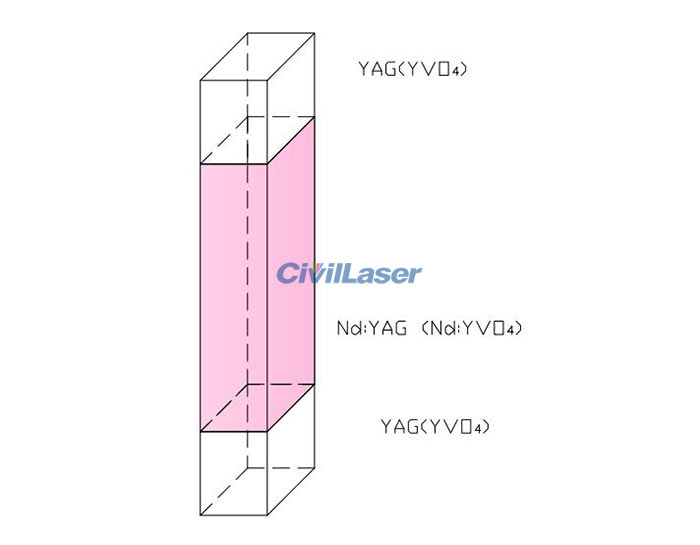

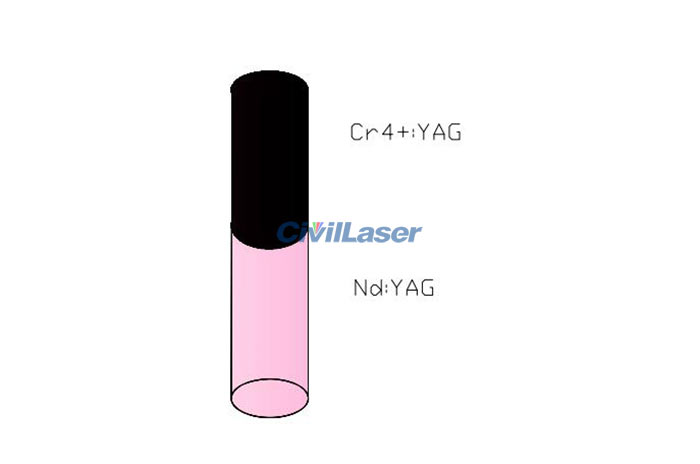

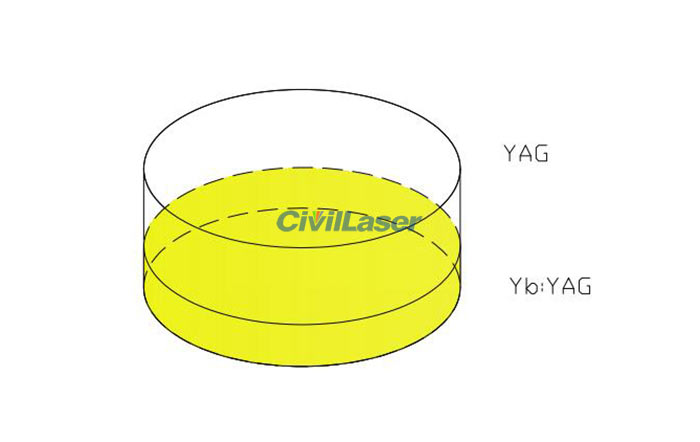

CivilLaser supply various standard assembly types as follows:
Other assembly type are also available, please contact us for more information.
| Material |
Doping Concentration(atm) or Optical Density(cm-1) |
Aperture (mm) |
Length of Laser Crystal(mm) |
| YVO4+ Nd:YVO4 + YVO4 |
0.1%-3% |
1×1-20×20 |
0.15-30 |
| Φ2-15 |
| YAG+Nd:YAG+ YAG |
0.1%-2.5% |
1×1-20×20 |
0.125-200 |
| Φ2-15 |
| YAG+Nd:YAG+Cr⁴+:YAG |
0.1%-2.5% / 0.6~7 |
1×1-20×20 |
0.125-200 |
| Φ2-15 |
| YAG+Nd:Ce:YAG+ Cr⁴+:YAG |
0.6~7 |
1×1-20×20 |
0.125-200 |
| Φ2-10 |
| YAG+Yb:YAG+ Cr⁴+:YAG |
1%-45% / 0.6~7 |
1×1-20×20 |
0.125-200 |
| Φ2-10 |
| Prameter |
Value |
Unit |
| Diameter Tolerance |
-0.00/-0.05 |
mm |
| Length Tolerance |
+0.5/-0 |
mm |
| Parallelism |
<10″ |
|
| Verticality |
<5′ |
|
| End Surface Flatness |
λ/10@632.8nm |
|
| Surface Quality |
10-5（MIL-O-13830A） |
|
| Beveled |
0.1±0.05mm×45° |
|
Some bonding crystals price:
| Concentration |
Size |
Membranes |
Price
(1~5 pcs) |
Price
(>10 pcs) |
| 1%Nd:YAG+Cr:YAG |
3*3*（5+T） |
S1:HR@1064+HT@808 S2:PR@1064 |
$519 |
$360 |
| 0.3%ND:YVO4+YVO4 |
3*3*(13+2) |
S1/S2:AR@1064nm+808nm |
$318 |
|
| YVO4+0.3%ND:YVO4+YVO4 |
3*3*(2+16+2) |
S1/S2:AR@1064nm+808nm |
$488 |
|
| Note |
For prices of other customized crystals, please contact us. |
