OSRAM 515 PL 515nm 520nm 30mw laser diode TO38(3.8mm)

OSRAM 515 PL 515nm 520nm 30mw laser diode TO38(3.8mm)



Place of production: Gremany (OSRAM)

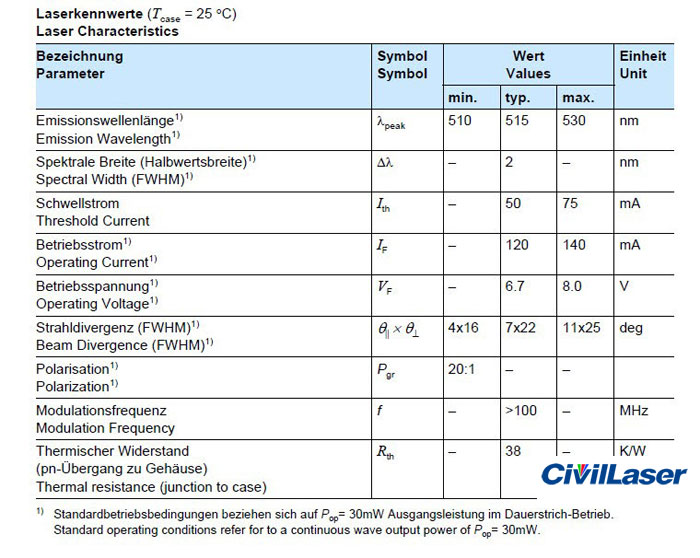

Output Wavelength: 520nm

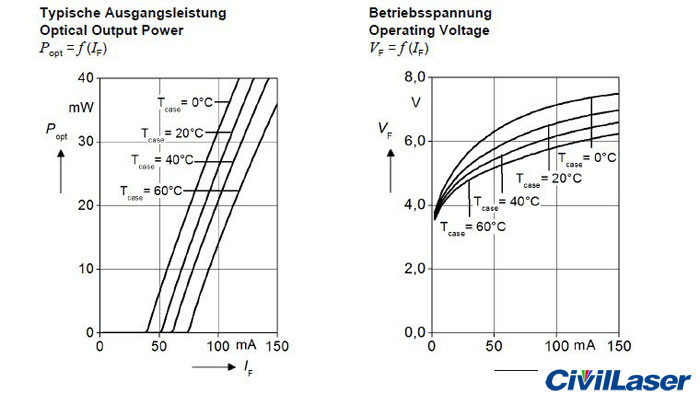

Output power: CW 30mW

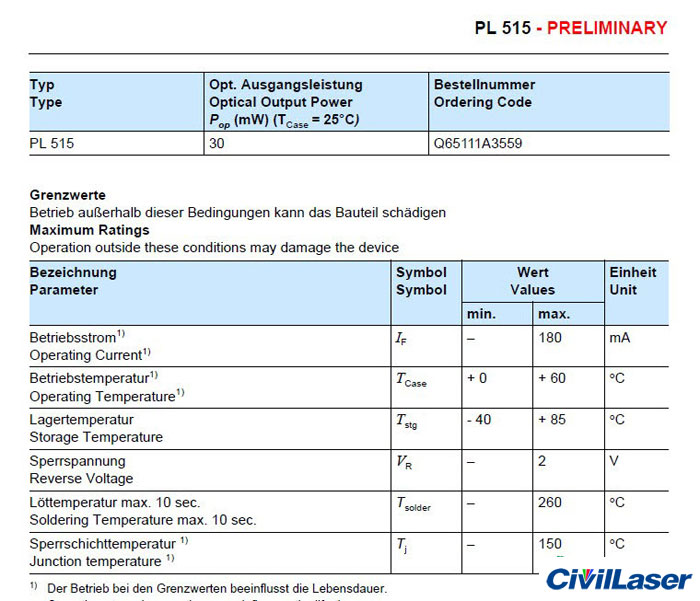

Operating Current: <180mA

Operating Voltage: <DC 8V

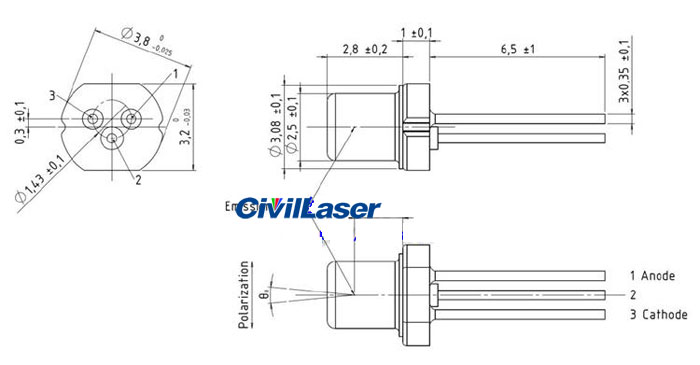

Package Type: TO38 (3.8mm)

Operating Temperature: 0℃~60℃

Storage Temperature: -40℃~85℃

Welding time: < 10 seconds

Welding Temperature: < 260℃

Working life: >10,000 hours





This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.
