SPECIFICATIONS:
Name: 405nm 200mw Blue Voilet laser module Dot/Line/Cross
Output Wavelength: 450nm
Output Power: ≤200mW (Because the lens on the attenuation of laser power, the actual exit pupil power is 150mW)

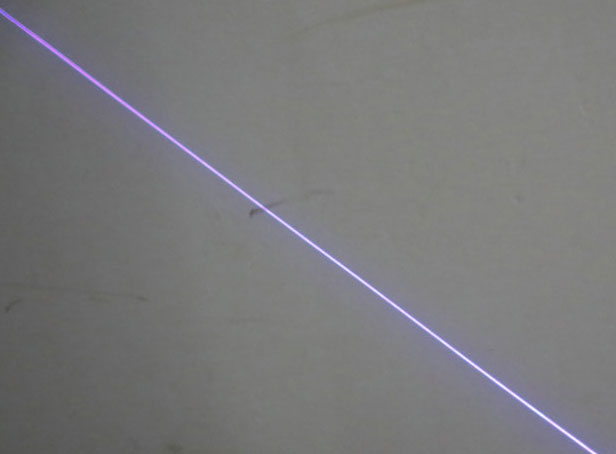

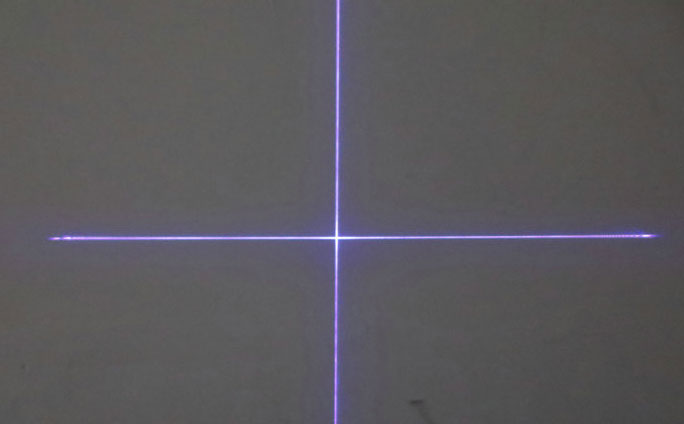

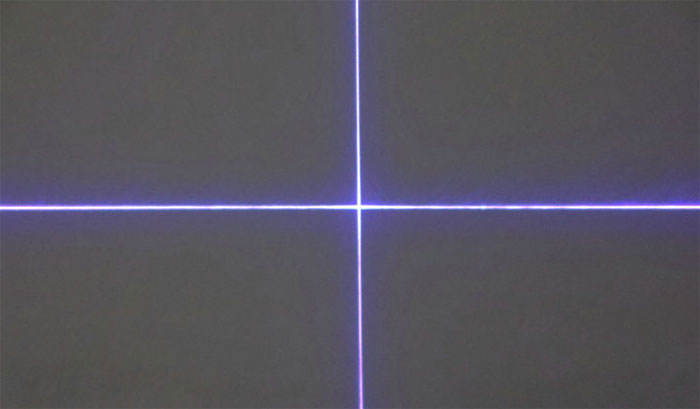

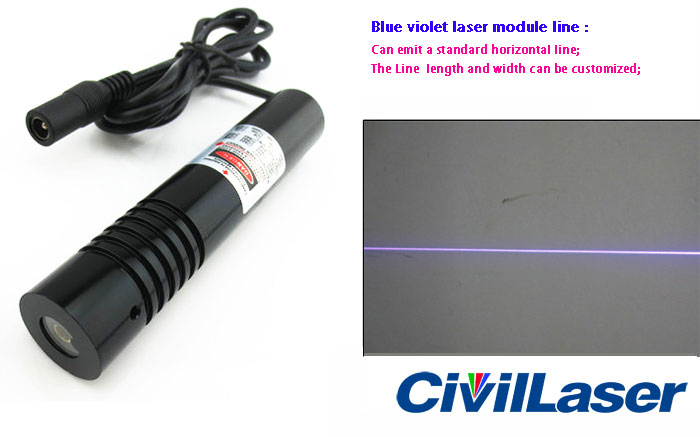

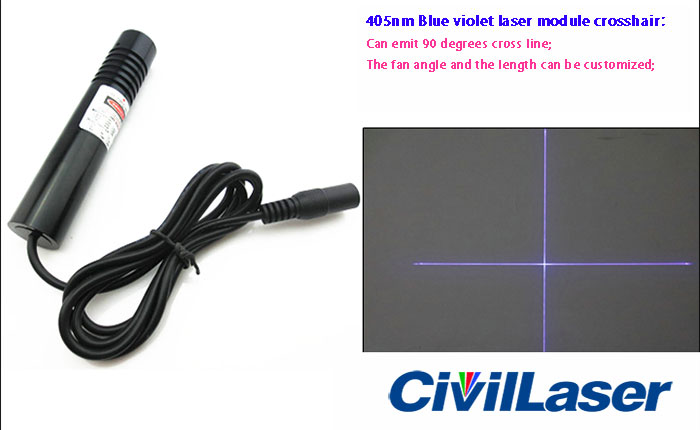

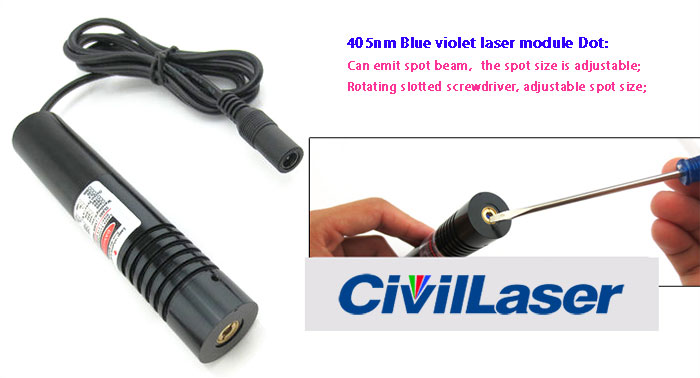

Laser Shape: Dot/Line/Cross
Laser type: Visible laser, Blue Voilet color
Outside Color: Black

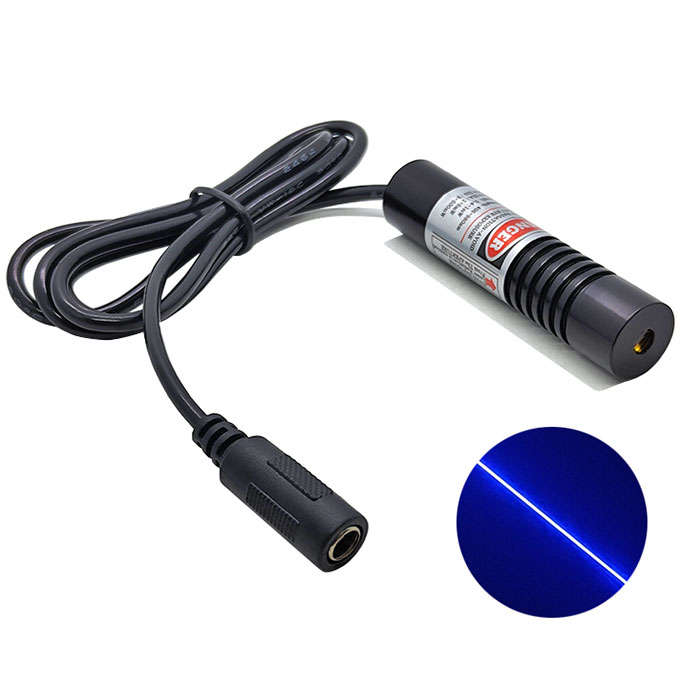

Size: φ22*110mm(the size can be customized as φ9*26mm, 10*30mm, 12*40mm, 16*70mm, 22*110mm)
Current: ≤150mA
Operating Voltage: DC 5.0-7.5(V)
Operating Temperature: -10--50℃
Storage Temperature: -40℃~80℃
Line width: 1.2m (can be customized)
Warranty: 12 Months Factory warranty
Structure Features: high quality laser diode + metal shell + High quality lens + constant power circuit board + Wireway

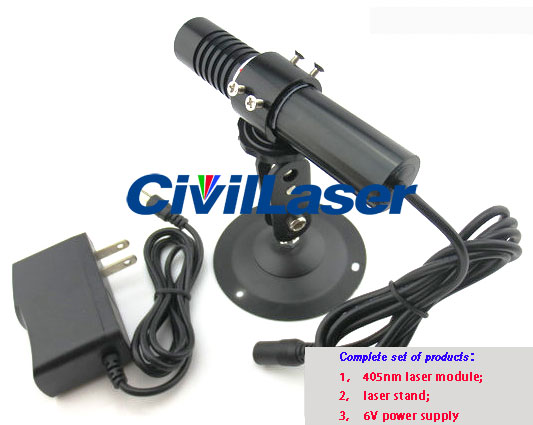

Package includes:
1* Blue Voilet laser module;
1* Laser stand;
1* Power supply;
This is the upgraded version of laser spot, the advantages of this laser module are:
1, The large size, beneficial to the heat dissipation, increase life expectancy;
2, The drive circuit controlled by intelligent IC, the stability is better;
3, Oxidation blackening shell, permanent anti-static;
4, Added the window film at the light outlet, can prevent the dust;
5, Use the latest high technical laser diode, can withstand temperatures up to 60 degrees;
6,Use thermal conductivity of silica gel and AD glue filled the inside, to ensure the full heat, vibration and falling;
7,Tail power line using high temperature line, good toughness and corrosion resistance.
