Raster Pattern Laser Module 658nm 100mW Red Diode Module Patterns Optional

Raster Pattern Laser Module 658nm 100mW Red Diode Module Patterns Optional

Note:

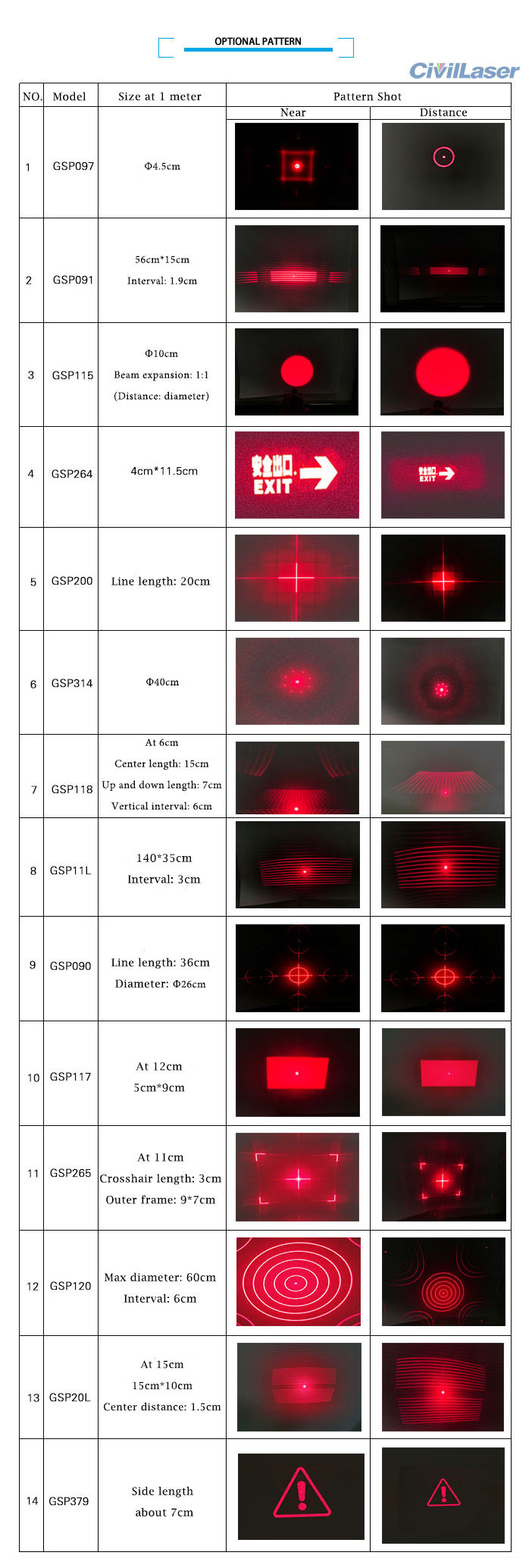

1. Various patterns are available, please indicate the pattern number when purchasing online: such as GSP097.
2. Grating graphics modules with other wavelengths and powers can be customized, please contact us.

[Specification]
Product Name: Laser module
Wavelength: 658±10nm
Outout Power: 100mW
Laser Shape: Choose the laser shape. (e.g.  GSP097)
Drive Voltage: DC 5V
Current: <200mA
Material: Aluminum
Surface Treatment: Oxidized black
Drive Mode: ACC constant current, continuous drive (customizable TTL)
Lens: PMMA adjustable
Wire: UL1007 26#150mm red and black wire
Operating Temperature: -20℃ ~ +60℃
Storage Temperature: -40℃ ~ +100℃
Working Life: > 10,000 hrs
