SPECIFICATIONS:

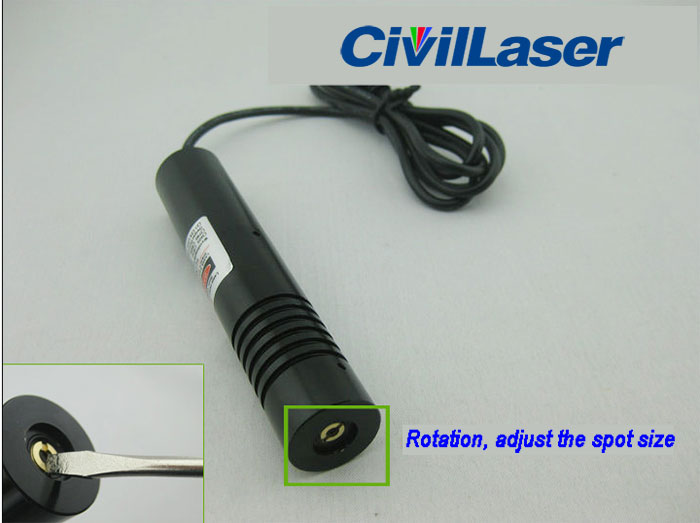

Name: 450nm 100mw Blue laser module Dot Focus adjustable
Output Wavelength: 450nm
Output Power: ≤100mW
Laser Shape: Dot
Laser type: Visible laser, Blue color
Outside Color: Black

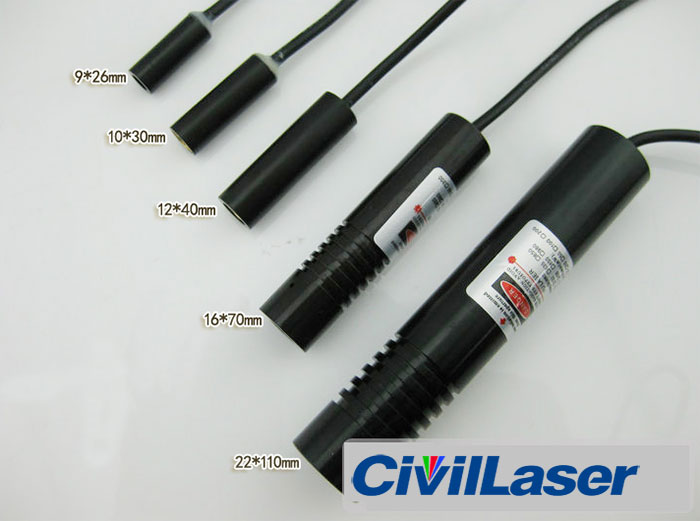

Size: φ9*26mm, 10*30mm, 12*40mm, 16*70mm, 22*110mm(default)
Current: ≤180mA
Operating Voltage: DC 5.0-7.5(V)
Operating Temperature: -10--50℃
Storage Temperature: -40℃~80℃

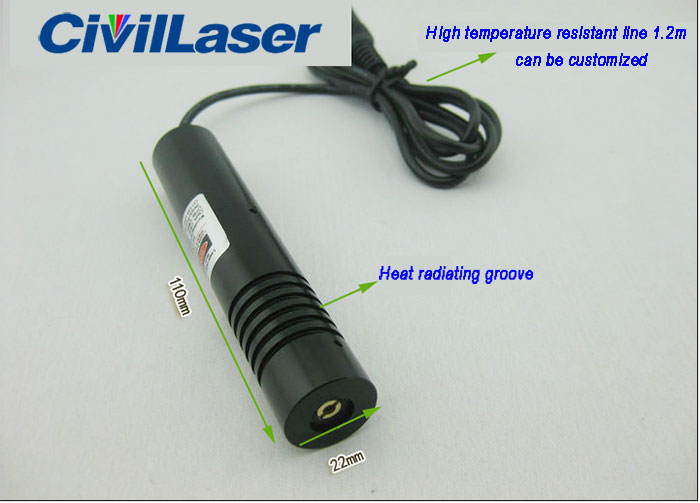

Line width: 1.2m (can be customized)
Warranty: 12 Months Factory warranty
Structure Features: high quality laser diode + metal shell + High quality lens + constant power circuit board + Wireway

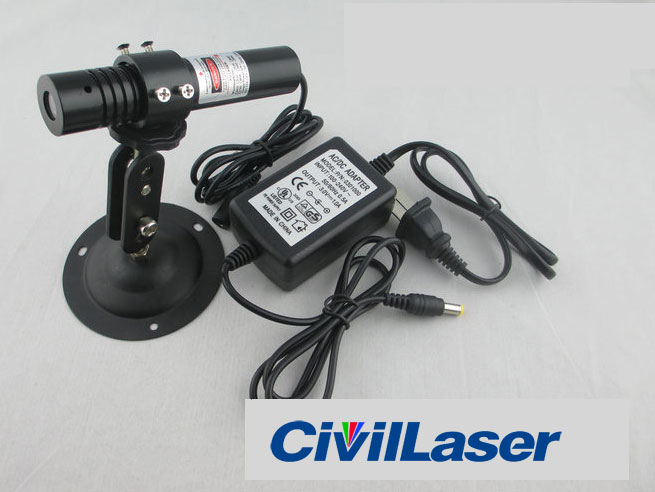

Package includes:
1* Blue laser module;
1* Laser stand;
1* Power supply;
This is the upgraded version of laser spot, the advantages of this laser module are:
1, The large size, beneficial to the heat dissipation, increase life expectancy;
2, The drive circuit controlled by intelligent IC, the stability is better;
3, Oxidation blackening shell, permanent anti-static;
4, Added the window film at the light outlet, can prevent the dust;
5, Use the latest high technical laser diode, can withstand temperatures up to 60 degrees;
6,Use thermal conductivity of silica gel and AD glue filled the inside, to ensure the full heat, vibration and falling;
7,Tail power line using high temperature line, good toughness and corrosion resistance.
