520nm 50mw/85mw Green laser module Crosshair--The world's first

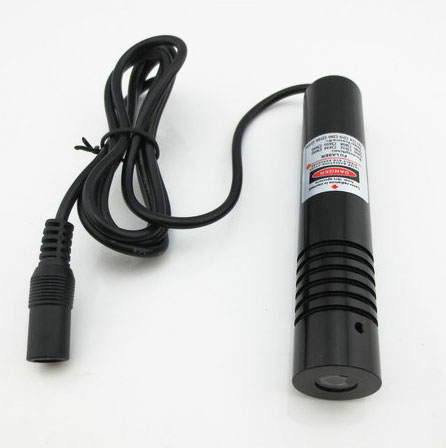

Name: 520nm Green laser module Crosshair

Output Wavelength: 520nm

Output Power: 50mw/85mw (can be customized)

Laser Shape: Cross

Laser type: Visible laser, Green color

Outside Color: Black

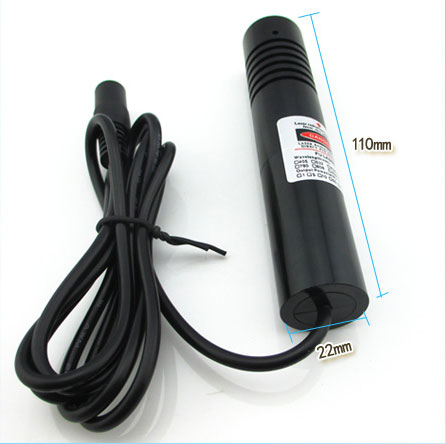

Size: Φ22*110mm

Current: ≤280mA

Operating Voltage:  DC 2.8-7.5(V)

Operating Temperature: -10--50℃

Storage Temperature: -40℃~80℃

Line width: 1.2m (can be customized)

Continuous work: 24h

Power stability: 95%

Warranty: 12 Months Factory warranty

In indoor environment, visible length up to 8 meters,in semi outdoor (non direct sunlight) environment, visible length up to 4 meters‚

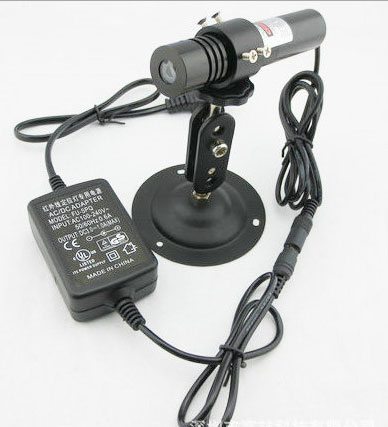

1* Green laser module;

1* Laser stand;

1* Power supply

This is the upgraded version of laser spot, the advantages of this laser module are:

1, The large size, beneficial to the heat dissipation, increase life expectancy;

2, The drive circuit controlled by intelligent IC, the stability is better;

3, Oxidation blackening shell, permanent anti-static;

4, Added the window film at the light outlet, can prevent the dust;

5, Use the latest high technical laser diode, can withstand temperatures up to 60 degrees;

6,Use thermal conductivity of silica gel and AD glue filled the inside, to ensure the full heat, vibration and falling;

7,Tail power line using high temperature line, good toughness and corrosion resistance.
