Home :: Laser Module(Dot/Line/Cross..) :: Infrared Laser Module Dot :: 1310nm 5mw IR laser module Dot Communication Sensor

1310nm 5mw IR laser module Dot Communication Sensor

Infrared Laser Module Dot

Product 6/82

Return to the Product List

1310nm 5mw IR laser module Dot Communication Sensor

larger image

$142.00

Add to Cart:

1310nm 5mw IR laser module Dot Communication Sensor

[Specifications]
Wavelength: 1310nm
Output Power: <5mw
Laser Safety: Class ⅢA
Circuit Mode: CW
Spot Size: <3mm at 50 meters distance
Divergence Angle: <0.7mard
Lens: Glass collimating lens
Driver Circuit: ACC
Operating Voltage: 2.8-3.5V
Operating Current: <100mA
Operating Temperature: -20℃~+50℃
Storage Temperature: -40°~+85℃
Housing Material: Aluminum
Mean Time to Failure: >8000H
Size: 12*40mm(Diameter*Length)
Wire Length: 150mm

1310nm IR laser module Dot Communication Sensor

Additional Images

1310nm 5mw IR laser module Dot Communication Sensor

larger image

1310nm 5mw IR laser module Dot Communication Sensor

larger image

1310nm 5mw IR laser module Dot Communication Sensor

larger image

Similar products

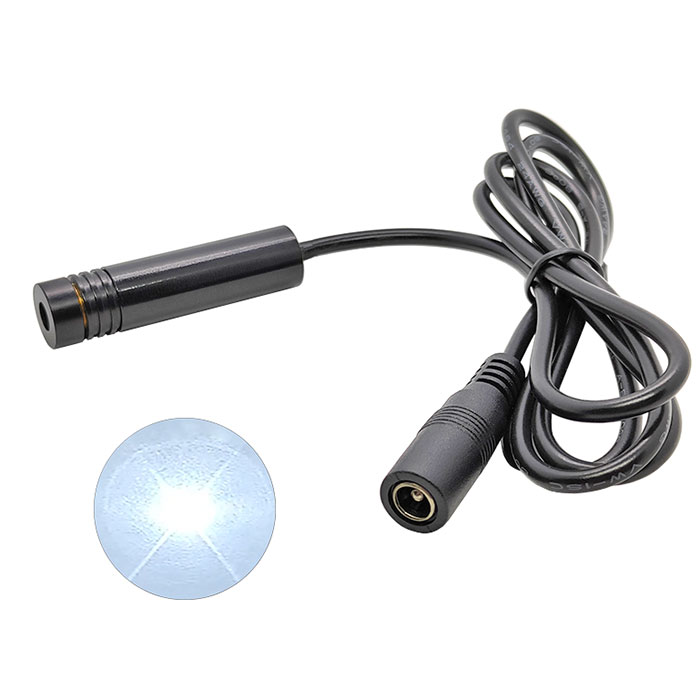

830nm 5~150mW Infrared Laser Module Dot Focus adjustable Φ16mmx60mm / IR illuminator
