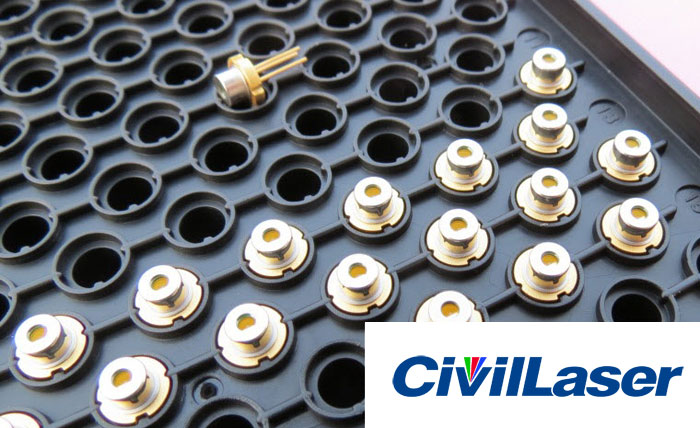

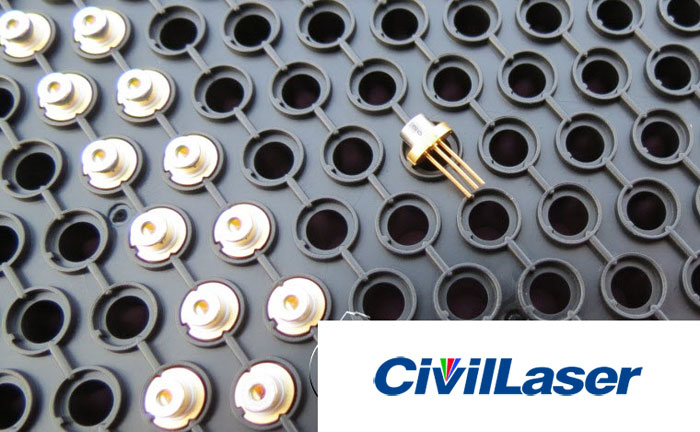

OSRAM PL-520-B2 520nm 90mw grass green laser diode T018

OSRAM  PL-520-B2 520nm 90mw grass green laser diode T018



Place of production: Gremany (OSRAM)

Output Wavelength: 520nm

Output power: CW 90mW

Operating Voltage: DC 6V

Package Type: TO-18 ( Φ5.6mm)

Operating Temperature: 0℃~60℃

Storage Temperature: -40℃~85℃

Welding time: < 10 seconds

Welding Temperature: < 260℃

Working life: >10,000 hours





This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.
