Xenon light source Optical experiment of UV irradiation with Fiber coupled HPX-2000

Xenon light source Optical experiment of UV irradiation with Fiber coupled HPX-2000

Brief introduction:
Most of the photochemistry experiments need to simulate the sunlight. Civillaser photoelectric xenon lamp has a spectrum similar to the sunlight, and the output wavelength range is 200 ~ 2200nm. The xenon lamp system of Civillaser photoelectric is a high-power all band light source with continuous wavelength distribution. Adopt the imported xenon lamp bulb, the leading module heat dissipation mode, ensure the light energy concentration and stable output, high efficiency coupling SMA905 interface output, convenient for the effective use of light in the test; a variety of optional accessories, improve the convenience of the test. It can be loaded with multi specification filters, etc.

Application area：
Civillaser xenon lamp light source is widely used in spectral application analysis, photocatalysis, photodegradation of aquatic hydrogen, photochemistry catalysis, photochemical synthesis, photodegradation of pollutants, water pollution treatment, biological lighting, optical detection, various kinds of visible light accelerated experiments, ultraviolet band accelerated experiments and other research fields.

Characteristic：
*High power output: high power light source specially used for fluorescence;
*UV visible range: covering 200-2200 spectrum;
* module cooling mode, extend the life of bulb, at least 1000H;
*With high electro-optic conversion efficiency, it can output high-energy parallel light, and the optical power can be up to 10mW;
*The simple optical structure can choose different wavelengths and wavebands to meet the diversified use needs;
*Modular design greatly improves the safety and stability of the product;
*It can achieve high energy density and long time continuous irradiation;
*Abundant optional accessories, and multi-purpose expansion.

Hpx-2000 technical specifications:
Dimensions: 267 mm x 245 mm x 90 mm
Weight: 6000g
Power consumption: 50W AC

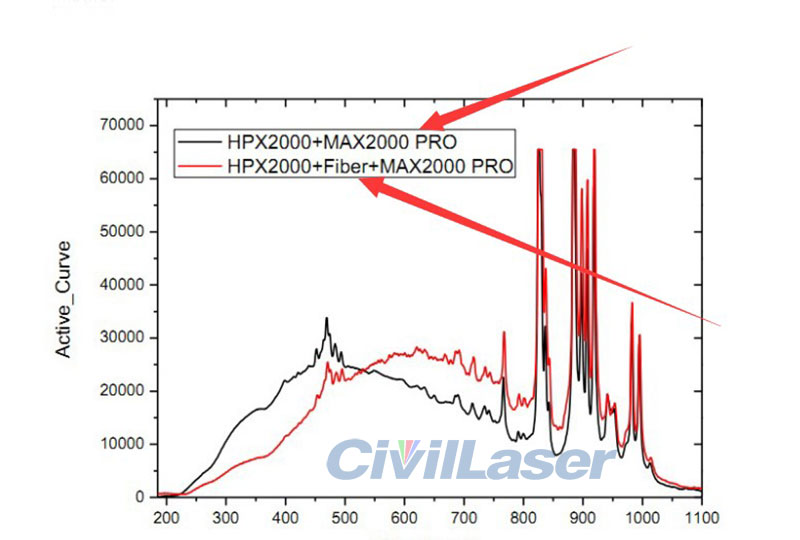

Wavelength range: 200nm-2200NM
Output optical power: Near 10mW
Input voltage: 85 ~ 250V AC
Bulb life: 1000 hours minimum
Connector: SMA905


It is recommended to use fiber: core diameter ≥ 600um, numerical aperture 0.22NA.
