473nm 200mw DPSS laser system CW & modulation working mode

 473nm 200mW DPSS laser system CW & modulation working mode



Product Name: 473nm 200mW Blue DPSS Laser

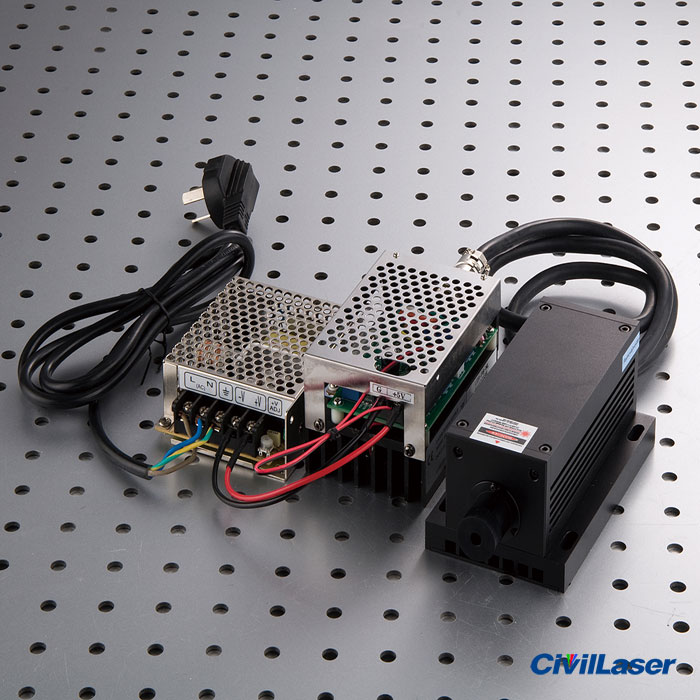

Product Include: Laser system + Controller + Power source
Lead Time:  1~3 weeks

Output Wavelength: 473nm ±2nm

Output Power: 200mW

Spatial Mode: Near TEM00

Operating Mode: CW or Modulation

Beam Diameter:  Near 3mm

Beam Divergence:  1.5 mrad
Beam Height: Near 29mm
Beam Quality(M2): <2

Power Stability:  <±5% per 2 hrs

Temperature Stabilizing: TEC

Warm Up Time: <5 minutes

Optimum Operating Temperature: 20~30℃

Storage Temperature: 10~50℃

MTTF(mean time to failure): 10,000 hrs
Laser Head dimension: Near 155(L)x77(W)x60(H)mm (Click here find detail)
Power Supply: Split type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Split Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)

Modulation: 0~30KHz Analog or TTL

Warranty: 1 Year



Thermal printing

Material Inspection

Scanning Biochemistry

Lidar



1 x 473nm laser

1 x Laser power supply
