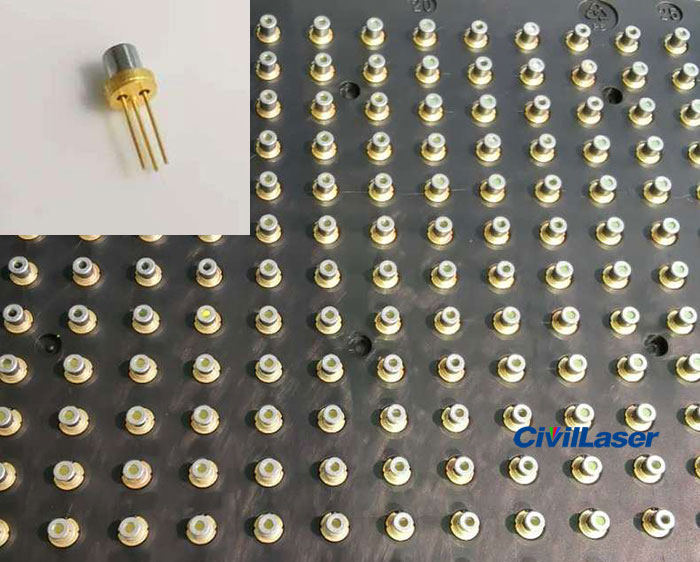

Sharp GH04P25A4G2 Laser Diode 405nm 200mW Singlemode Laser T033 Package

Sharp GH04P25A4G2 Laser Diode 405nm 200mW Singlemode Laser T033 Package

[Specification]
Product Name: Laser diode
Wavelength: 405nm
Output Power: CW 200mW Max 400mW
Operating Current: Max 260mA
Operating Voltage: 5V
Package Type: T033(3.3mm)
Operating Temperature: +10℃~+70℃
Storage Temperature: -40℃~+85℃
Working Life: 10000hrs

Note: This component is sensitive to static electricity. Do not touch the laser diode directly with your hands without anti-static measures. In addition, this diode must have a qualified drive circuit to work properly. The voltage of different power is the same, but the working current is different. The circuit is on the tube. The driving current needs to be controlled within a safe range, otherwise it will affect the life.
