Home :: Fiber Optic Components :: Fiber Collimator :: 1060/1310/1550nm Fiber Optic Collimator Can be Customized

1060/1310/1550nm Fiber Optic Collimator Can be Customized

Fiber Collimator

Product 1/11

Return to the Product List

1060/1310/1550nm Fiber Optic Collimator Can be Customized

larger image

$109.00

Add to Cart:

1060/1310/1550nm Fiber Optic Collimator Can be Customized

Specification:

Parameter	Unit	Value	Note
Working Wavelength	nm	1060/1310/1550	Other wavelength optional
Operating Band Width	nm	1260~1620	Wider operating band width available upon request
Lens Type	N/A	C-lens / G-lens
Fiber Type	N/A	SMF-28e+	Other fiber is optional
Working Distance	mm	5.5 +/- 0.5 (Standard)	Customizable
Insertion Loss	dB	0.15 (Typ.); 0.20 (Max.)	For a pair of collimators spaced at working distance
Return Loss	dB	60
Beam Spot Diameter	mm	0.45 (Typ.); 0.50 (Max.)	2w diameter (at 1/e2 intensity) measured at beam waist; Customizable
Maximum Optical Power	W	1；5；10	High-power available upon request
Storage Temperature	℃	-40 ~ 85
Operating Temperature	℃	-5 ~ 70

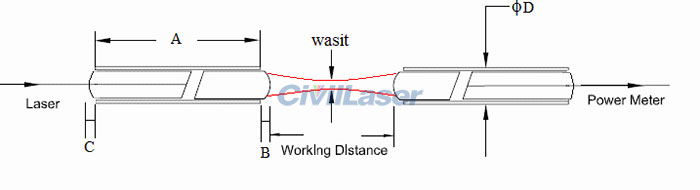

Dimension (ФD x A)A	mm	Ф 3.20 × 11 (with metal tube)	Customizable
Dimension (ФD x A)A	mm	Ф2.78 × 9 (with glass tube)	Customizable
Lens Chip (size B)	mm	1.0~2.0	Customizable
Pigtail Chip (size C)	mm	1.0~2.0	Customizable

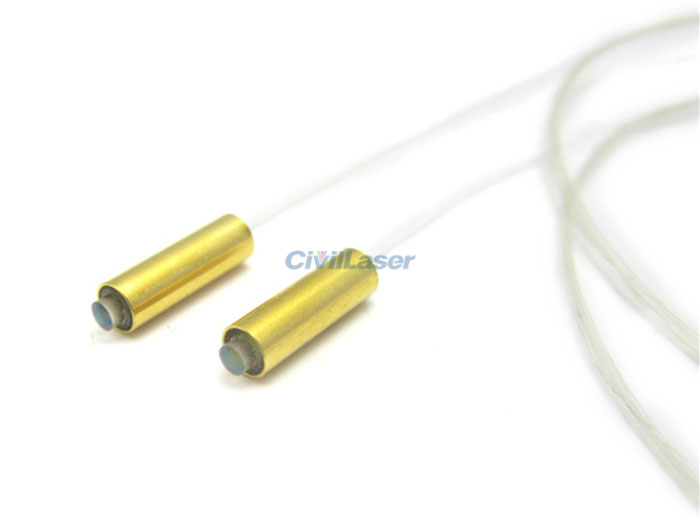

fiber collimator

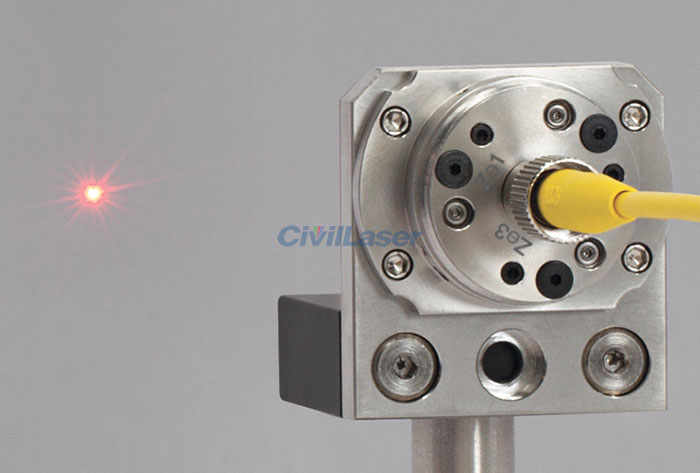

fiber collimator

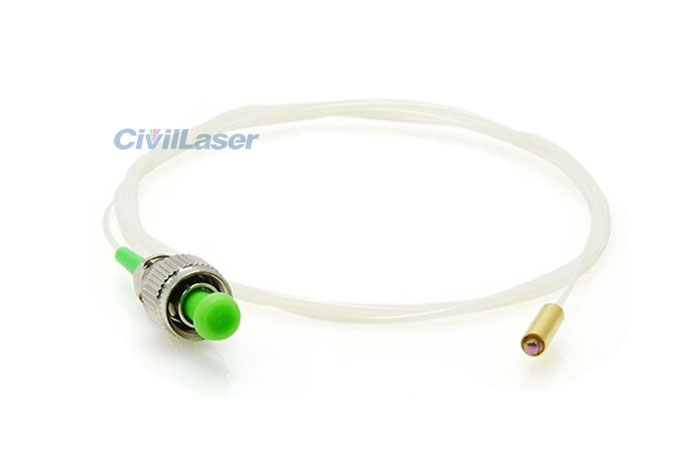

fiber collimator

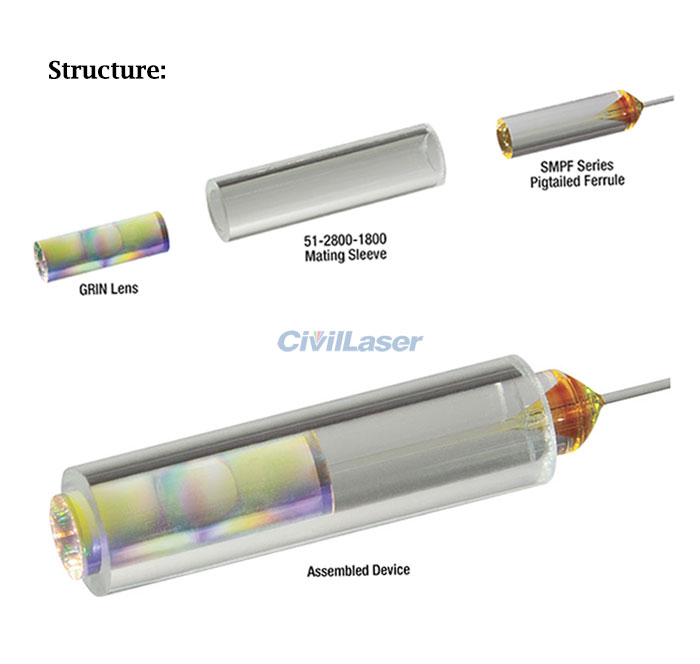

fiber collimator

fiber collimator
