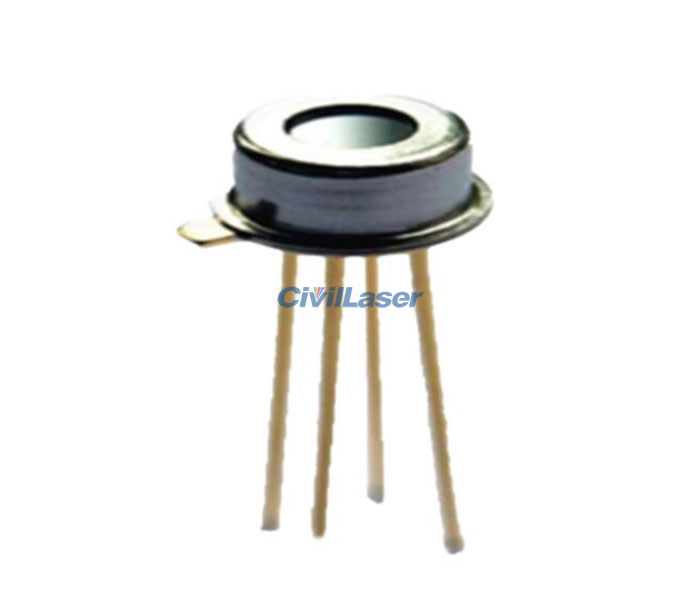

Infrared Sensor MTP10-B1F55 Thermopile Sensor TO-46 Package
[Features]
1. MEMS Electrothermal reactor principle.
2. TO-46 Package.
3. High sensitivity.
4. 5.5μm long wave pass filter
5. High-precision NTC.
[Application]
1. Non-contact temperature measurement
2. Ear thermometer, forehead thermometer
3. Continuous control of production temperature
4. Consumer electronics products
5. Home appliance temperature measurement
[Specification]
| Parameter |
Typ. |
Unit |
Condition |
| Chip Size |
1.1x1.1 |
mm² |
|
| Sensitive Area |
0.35x0.35 |
mm² |
|
| Field of View |
108 |
° |
50% maximum signal |
| Thermopile Resistance |
130±10 |
KΩ |
Ambient temperature 25℃ |
| Noise Voltage |
46±2 |
nV/Hz1/2 |
Ambient temperature 25℃ |
| Noise Equivalent Power |
0.709 |
nW/Hz1/2 |
500K, 1Hz |
| Response Rate |
85 |
V/W |
500K, 5.5μm (Long wave pass) |
| Temperature Coefficient of Resistance |
0.06 |
%/℃ |
Ambient temperature 25℃~75℃ |
| Time Constant |
13 |
ms |
|
| Detection Rate |
0.5E08 |
cmHz1/2W |
500K, 1Hz |
| NTC Resistance |
100±1% |
KΩ |
25℃ |
| NTCβ Value |
3950±1% |
K |
25℃ / 50℃ |
| Operating Temperature |
-30~100 |
℃ |
|
| Storage Temperature |
-40~125 |
℃ |
|
