639nm 640nm 20mW Red Laser HL6360MG Laser Diode

639nm 640nm 20mW Red Laser HL6360MG Laser Diode

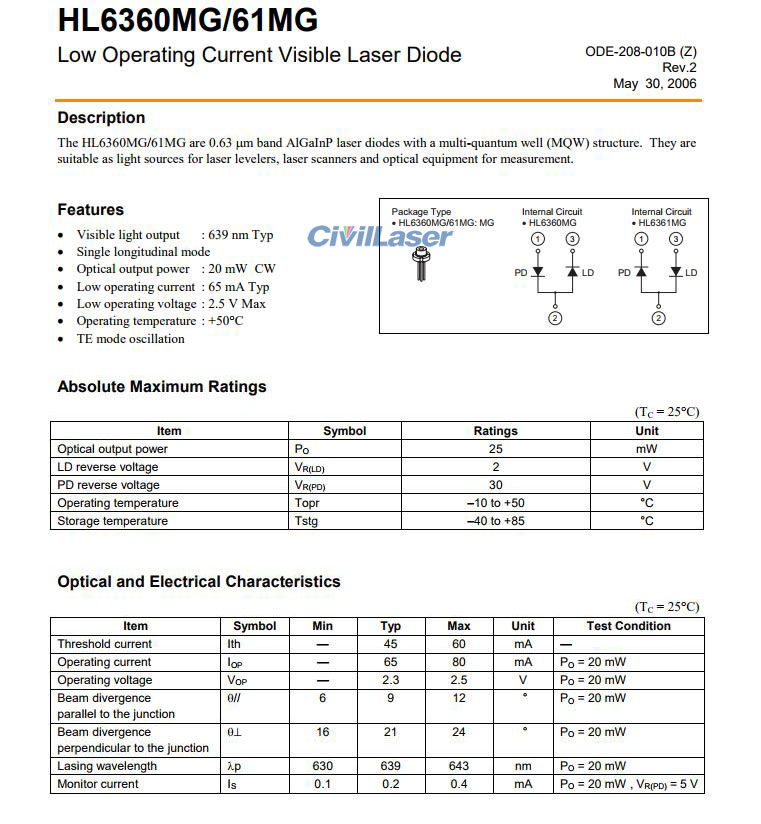

The HL6360MG/61MG are 0.63 µm band AlGaInP laser diodes with a multi-quantum well (MQW) structure. They are suitable as light sources for laser levelers, laser scanners and optical equipment for measurement.

[Features]
1. Visible light output : 639 nm Typ
2. Single longitudinal mode
3. Optical output power : 20 mW CW
4. Low operating current : 65 mA Typ
5. Low operating voltage : 2.5 V Max
6. Operating temperature : +50°C
7. TE mode oscillation

[Specification]
Product Name: Laser Diode
Product Model: HL6360MG
Wavelength: 639nm
Optical Output Power: 25mW
LD Reverse Voltage: 2V
PD Reverse Voltage: 30V
Operating Temperature: -10~50°C
Storage Temperature: -40~85°C
