650nm 200mw Multi mode fiber coupled Red laser module with FC interface

650nm 200mW Multi-Mode Fiber Coupled Red Laser Module with FC Interface

Specifications：
Output Wavelength: 650nm
Core Power: 200mW
Exit Pupil Power: The power is about 30MW after connect the optical fiber
Operating Voltage: DC 4.8V~5.2V
Working Current: 500mA
Optical Lens: optical coating glass lens (import)

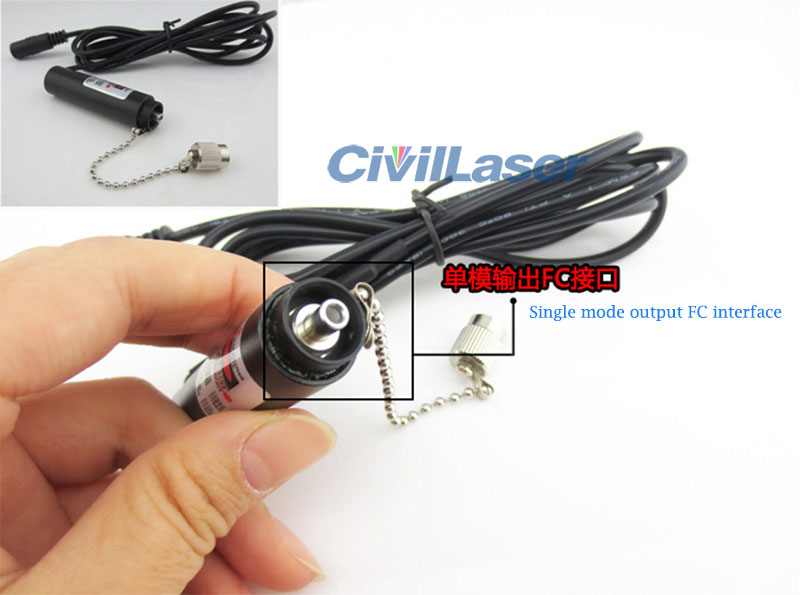

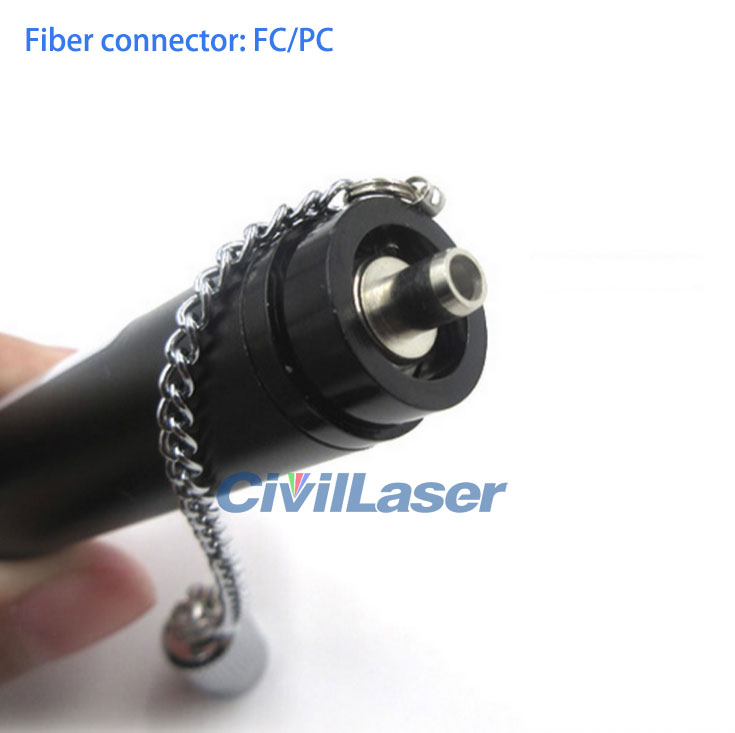

Fiber Interface: FC/PC
Fiber Length: 1 meters
Fiber Core Diameter：100um
Fiber Type: Multi mode fiber

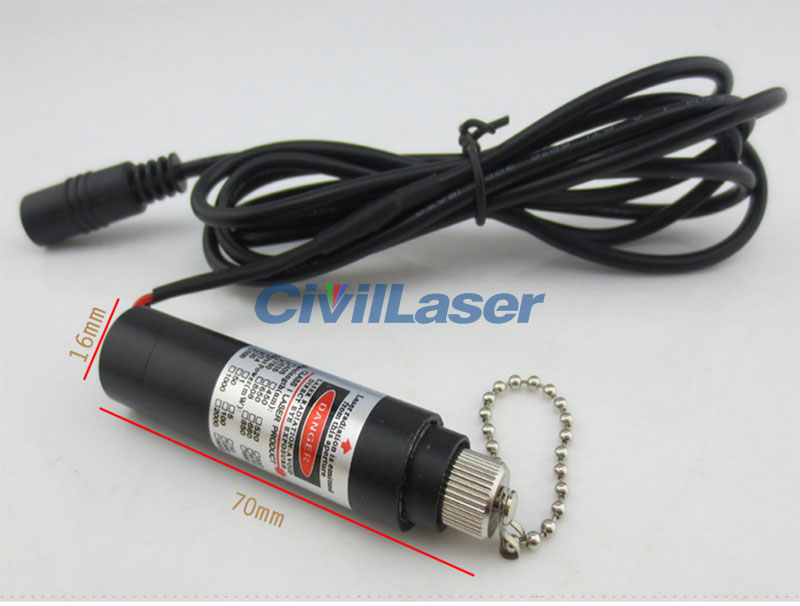

Dimensions: 22*90mm or 26*100mm
Operating Temperature: -10°C ~ 50°C
Storage Temperature: -40°C ~ 85°C

Advantages:
1. The laser almost no temperature after optical fiber jumper, it is similar to cold light source, more safe and more stable performance.
2. The fiber because of its flexibility can make the laser emitting end of flexible, mobile use and more convenient.
3. We can make better mode of laser beam shaping, beam is Gauss distribution.
4. It can be used in laser beam integration to improve output power.
