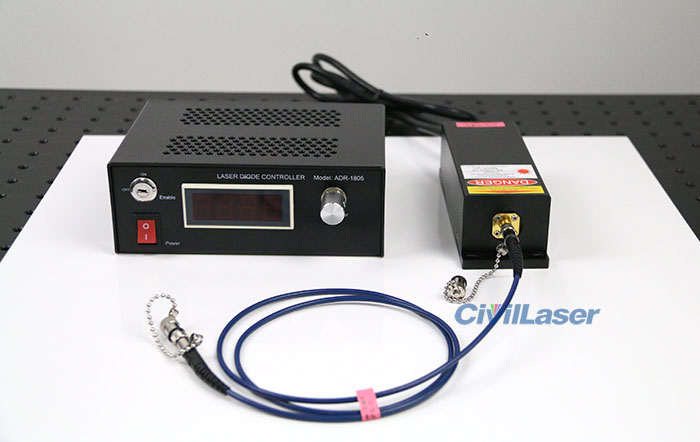

1310nm 1~150mW Singlemode Fiber Laser Source Output Power Adjustable

1310nm 1~150mW Singlemode Fiber Laser Source Output Power Adjustable

1310nm single-mode fiber coupled laser uses single-mode fiber coupling, which has the advantages of high coupling efficiency and good output laser beam quality.
The TEC temperature control system is used to ensure that the laser is more stable and has better performance. Compact structure, strong and reliable, suitable for various industrial and scientific research applications.

[Features]
Single-mode fiber coupled output.
TEM00 spot mode.
High power stability.
Polarization-maintaining single-mode fiber coupled output available.
Can be customized according to customer requirements.

[Specifications]
Wavelength: 1310nm±20nm
Output Power: 150mW (@ Fiber output side, and 0~max power adjustable)
Power Stability: 3% (with temperature control)
Spectral Linewidth: 10nm
Fiber Type: SM fiber
Fiber Interface: FC/PC, FC/APC, SMA905 (choose)
Fiber Length: 1m (If you need other length, please contact us.)
Operating Temperature: 0°C-40°C
Storage Temperature:  -10°C-60°C
Warming Up Time: <5 minutes
Noise: 1% RMS(10Hz-100MHz)
Laser Head size: 35mm*35mm*102mm
Laser Power Supply: Include, Input AC 90~240V
Work Mode: CW/Modulation
Modulation: 0~10KHz TTL
Service Life: 10000Hrs

Note:
Lead time: 2~4 weeks for SM FC lasers.
