Home :: Fiber Optic Components :: PM Fiber Optical Isolator :: 1310nm 1550nm Single-stage Polarization Maintaining PM Fiber Optical Isolator

1310nm 1550nm Single-stage Polarization Maintaining PM Fiber Optical Isolator

PM Fiber Optical Isolator

Product 5/6

Return to the Product List

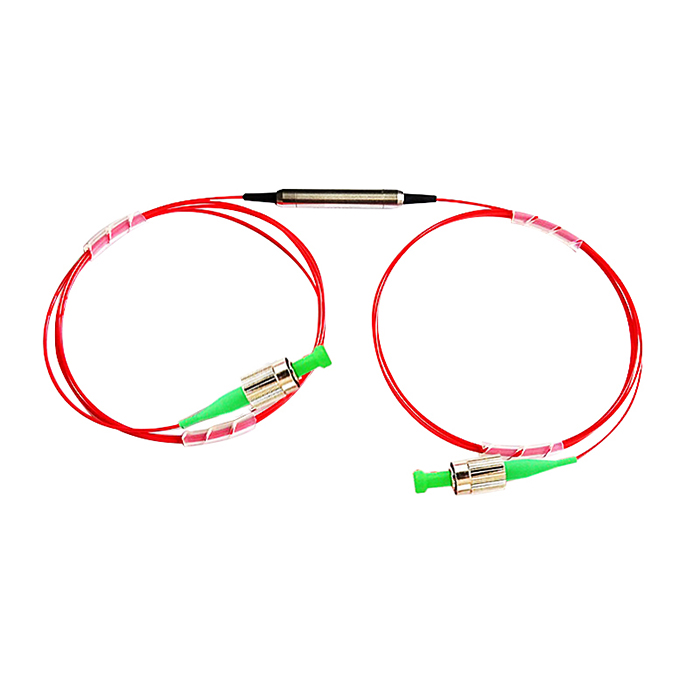

1310nm 1550nm Single-stage Polarization Maintaining PM Fiber Optical Isolator

larger image

$163.00

Please Choose:

Wavelength

Add to Cart:

1310nm 1550nm Single-stage Polarization Maintaining PM Fiber Optical Isolator

[Features]
Low insertion loss
High extinction ratio
High isolation

[Applications]
optical fiber amplifier
Fiber sensing
Fiber laser

[Specification]

Parameters	Unit	Typical Value
Single and double stage type	--	Single-stage
Working Wavelength	nm	1310, 1550
Spectral Bandwidth	nm	±20
Typical Isolation	dB	42
Min Isolation	dB	28
Typical Insertion Loss	dB	0.4
Max. Insertion Loss	dB	0.55
Polarization Extinction Ratio	dB	20
Polarization Extinction Ratio (Single axis only)	dB	25
Return Loss (Input/Output)	dB	50 / 50
Withstand Optical Power (Continuous light)	mW	500
Pull Test	N	5
Fiber Type	--	PM Panda fiber
Operating Temperature	°C	-5~+65
Storage Temperature	°C	-40~+85

Note:
1. With a fiber connector, the insertion loss increases by 0.3dB, the return loss decreases by 5dB, and the polarization extinction ratio decreases by 2dB.
2. Fiber connector slot type default is slow axis alignment.

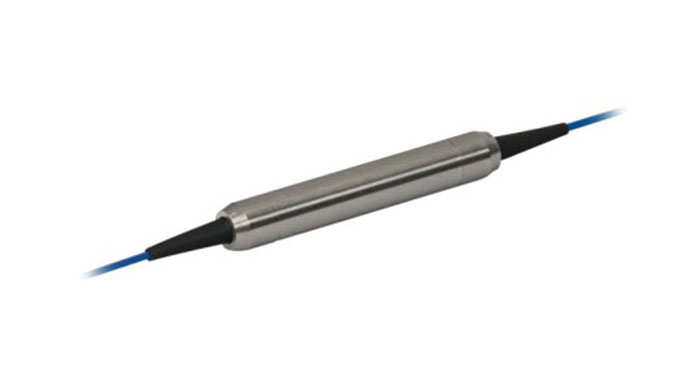

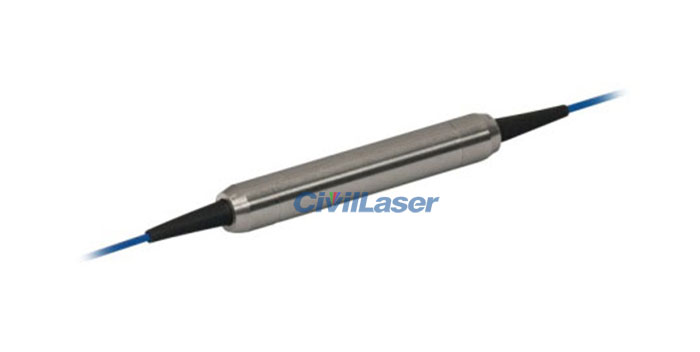

PM fiber isolator

PM fiber isolator

Similar products

1310nm 1550nm Single-stage Polarization Maintaining PM Fiber Optical Isolator
$163.00
1310nm 1550nm Double Stage Polarization Mmaintaining PM Fiber Optical Isolator
$186.00
1064nm/1310nm/1480nm/1550nm Single-stage Polarization Maintaining Fiber Isolator FC/UPC
$247.00

1060nm/1310nm/1480nm/1550nm Single-stage PM Optic Fiber Isolator FC-APC
$240.00
1064nm PM Optical Fiber Isolator FC/APC Single/Dual Stage Slow Axis
$247.00
980nm Fiber Isolator With PM980 Fiber Polarization Maintaining Isolator FC/APC
$240.00

Customers who bought this product also purchased...

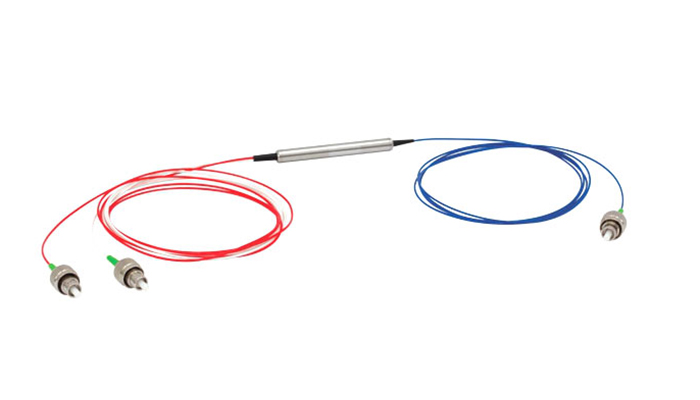

PM Fiber Optical Circulator 1310nm 1550n...
