PM Fiber Optical Circulator 1310nm 1550nm 500mW Withstand Power

[Features]
Low insertion loss
High extinction ratio
High stability and reliability

[Applications]
optical fiber amplifier
Fiber sensing
Fiber laser

[Specification]

Parameters

Unit

Biaxial

Single Axis

Single and Double Stage Type

--

Single-stage

Single-stage

Port Type

--

3

3

4

Working Wavelength

nm

1310, 1550

1310, 1550

Spectral Bandwidth

nm

±30

±30

Typical Insertion Loss

dB

0.6

0.7

1.1

Max. Insertion Loss

dB

0.8

0.9

1.3

Typical Isolation

dB

50

46

Min. Isolation

dB

40

40

Polarization Extinction Ratio (Single axis only)

dB

18

22

Crosstalk

dB

50

50

Return Loss

dB

50

50

Withstand Power (Continuous light)

mW

500

Pull Test

N

5

Fiber Type

--

PM Panda fiber

Operating Temperature

°C

-5~+65

Storage Temperature

°C

-40~+85


Note:
1. With a fiber connector, the insertion loss increases by 0.3dB, the return loss decreases by 5dB, and the polarization extinction ratio decreases by 2dB.
2. Fiber connector slot type default is slow axis alignment.

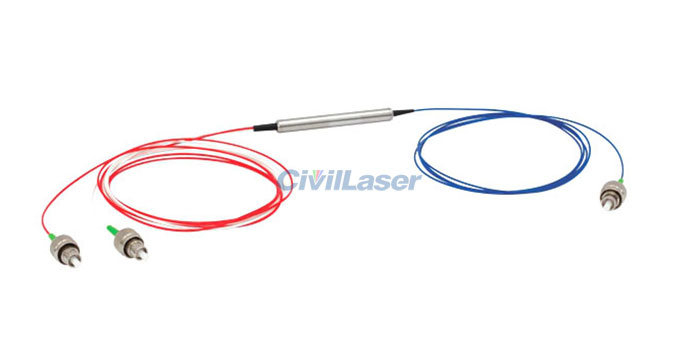

PM fiber Circulator

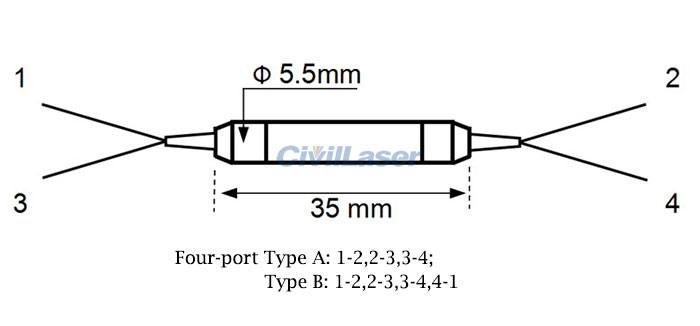

PM fiber Circulator

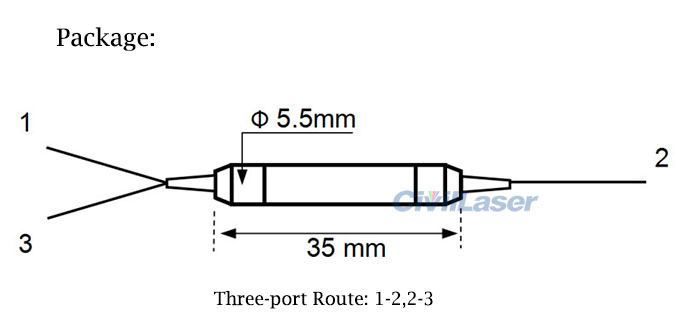

PM fiber Circulator
