900~1700nm Singlemode InGaAs PIN High-speed Photodetector Module PD03
PD03 series high-speed photodetector module has photoelectric response bandwidth ≥3GHz, pulse rising edge time 125ps, and working wavelength covering 1020~1650nm wavelength. The RF signal output adopts SMA interface to facilitate connection with RF test equipment. Suitable for use in optical transmission systems, ultrafast laser pulse detection, etc.
[Features]
High bandwidth
High sensitivity
DC coupled output
[Applications]
Optical fiber communication
Pulse Laser Measurement
Optical fiber sensing
[Specification]
|
Parameters
|
Unit
|
Typical Value
|
Remarks
|
|
Model
|
--
|
PD03
|
|
|
Detector Material
|
--
|
InGaAs
|
|
|
Detection Wavelength
|
nm
|
900~1700
|
|
|
Optical Power Input Range
|
dBm
|
-10 ~ 17
|
|
|
Rise Edge Time
|
ps
|
≤125
|
|
|
Max. Electrical Pulse Output
|
mV
|
1500
|
|
|
Photoelectric Response
|
--
|
1.0A/W; 30mV/mW
|
|
|
Return Loss
|
dB
|
-37
|
|
|
Output Matching Impedance
|
Ω
|
50
|
|
|
Frequency Bandwidth
|
GHz
|
DC~3GHz
|
@3dB
|
|
Optical Signal Input Interface
|
--
|
FC / APC
|
|
|
RF Signal Output Port
|
--
|
SMA
|
|
|
Electrical and environmental parameters
|
Photo-detector Module
|
|
Power supply
|
DC 12V, 1A
|
|
Size
|
100(W)×70(D)×25(H)mm
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|
.jpg)

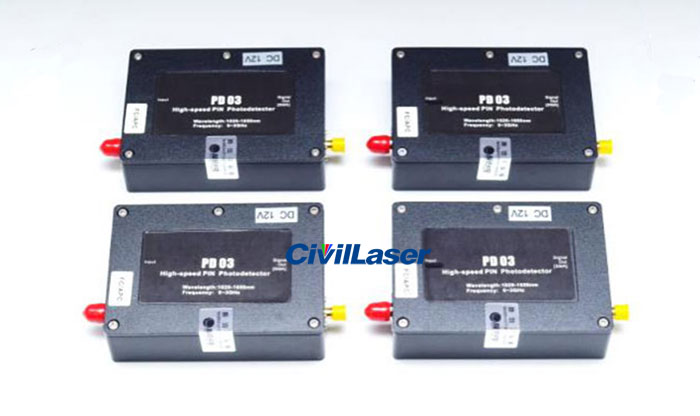

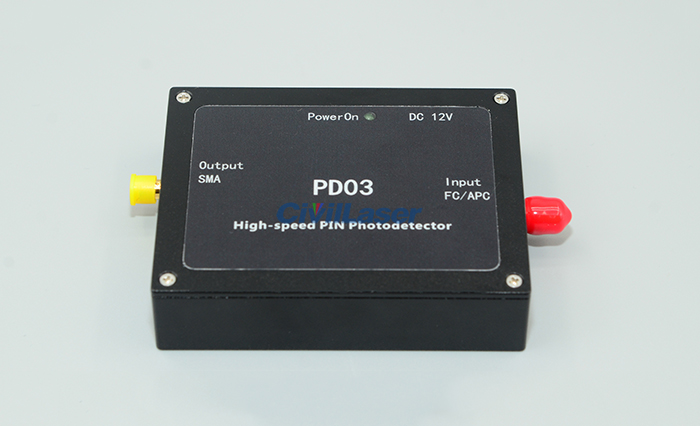

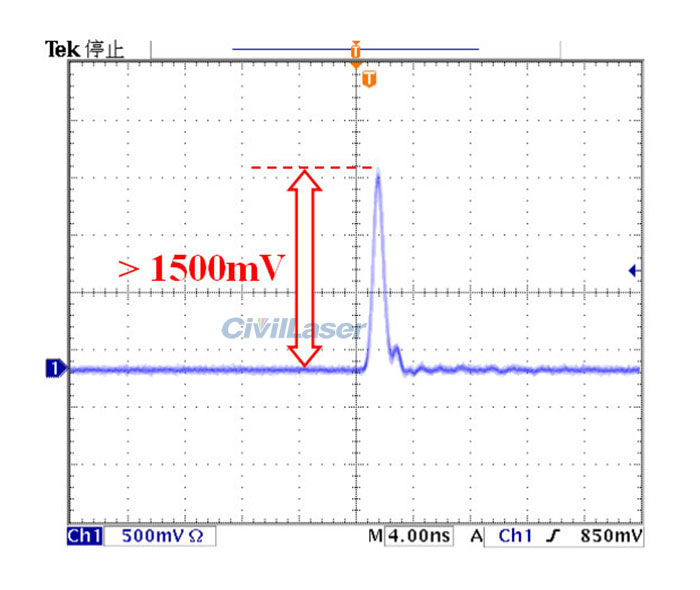

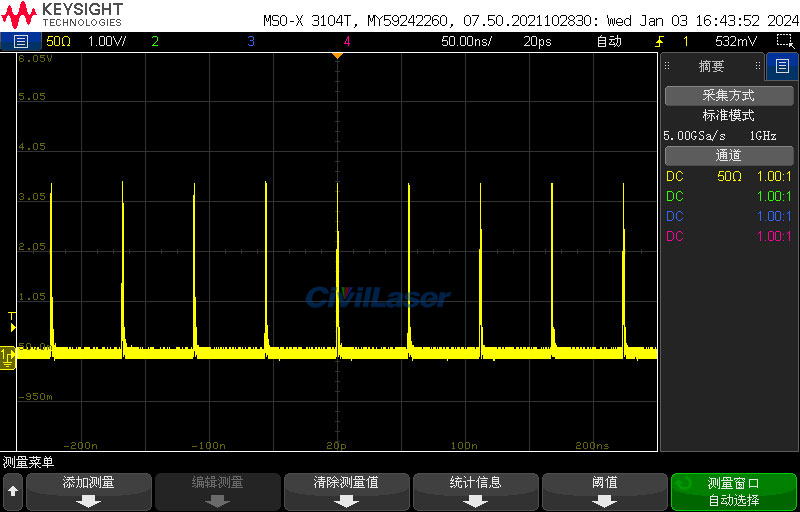

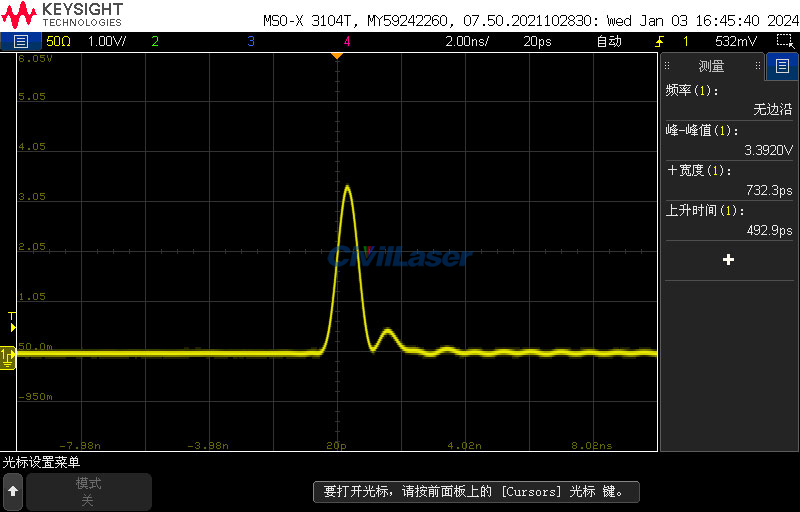

Picosecond Pulse Laser Response:
