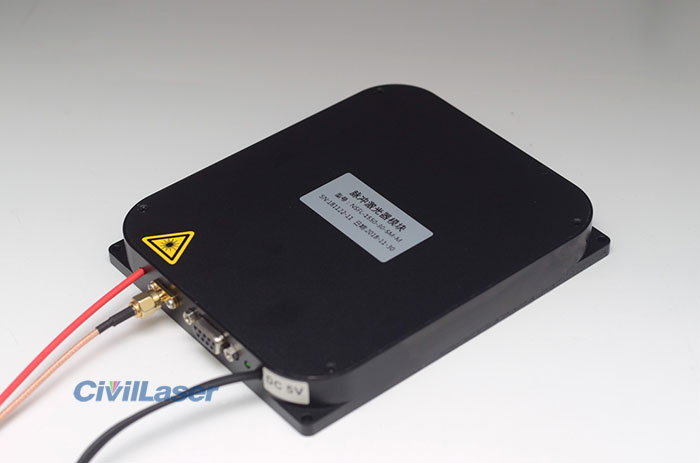

Nano-second Pulse Fiber Laser 1550nm±1nm 10W Peak Power Ultra-fast Laser Module Type NSFL-1550-10-SM-M
Nanosecond pulse laser adopts unique circuit and optical optimization design, output laser pulse width, peak power and repetition frequency can be adjusted, working wavelength and power output are stable, single-mode fiber output, modular type is convenient for system integration, suitable for distributed Fiber optic sensing system.
[Features]
Full fiber structure
Pulse width, repetition frequency, and power can be adjusted
Desktop or module package
[Applications]
Lidar
Nonlinear optics
Distributed Fiber Optic Sensing
[Specification]
|
Parameters
|
Unit
|
Typical Value
|
Remarks
|
|
Model
|
|
NSFL-1550-10-SM-M
|
|
|
Central Wavelength
|
nm
|
1550±1
|
|
|
Spectral Width
|
nm
|
≤1
|
|
|
Output Peak Power
|
W
|
10
|
Maximum power can be customized.
10W@100kHz frequency, 10ns pulse width (average power 10mW at this time)
|
|

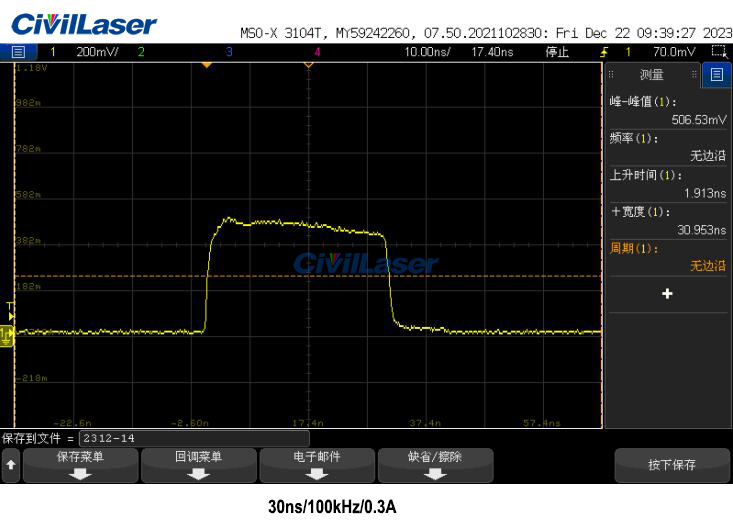

Pulse Width
|
ns
|
5~30ns
|
Customizable
|
|
Repeat Frequency
|
kHz
|
1~100 Adjustable
|
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (10 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Trigger Method
|
--
|
External trigger or Internal trigger
|
SMA connector.
Trigger method is customizable.
Please contact us
|
|
Pigtail Type
|
--
|
SMF-28 single-mode fiber
|
L=1m
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|

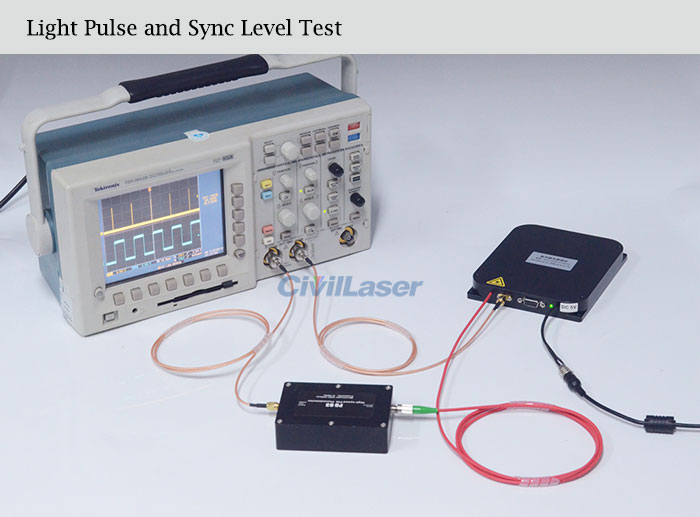

Note-Trigger:
Trigger Method - External trigger：
If it is an external trigger, it means that the customer needs to input a periodic clock signal to the laser source to trigger the laser light source from the outside in order to output a nanosecond periodic pulse signal.
|
Electrical and environmental parameters
|
DeskTop Type
|
Module Type
(Current product)
|
|
Control method
|
Button
|

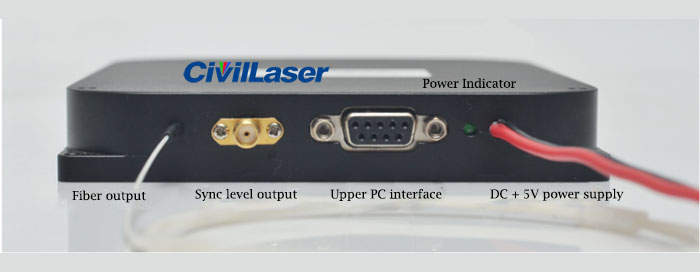

RS232 Serial communication
|
|
Communication interface
|
DB9 Female(Default not include)
|
DB9 Female
|
|
Power supply
|
100~240V AC, <30W
|
5V DC, <15W
|
|
Size
|
260(W)×280(D)×120(H)mm
|
125(W)×150(D)×20(H)mm
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|
