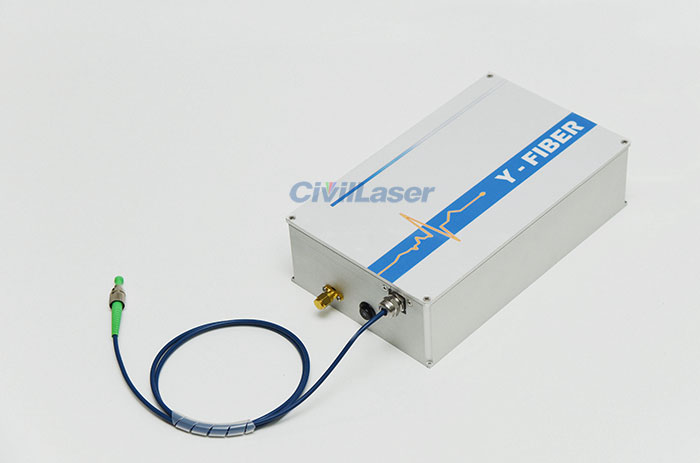

Ultra-fast Fiber Laser Source 532nm 50mW Picosecond Pulse Fiber Laser PSPL-532-25-50-20-FR-M
CivilLaser's ultrafast lasers use high-performance rare earth fiber as the working medium, combined with high-precision dispersion compensation technology and active servo control system. It can be fully self-starting and stable for a long time. It has the characteristics of extremely narrow laser pulse and high pulse peak optical power. This light source can be used in scientific research in the fields of high power laser, supercontinuum, and nonlinear optics.
Parameters such as pulse width, power, and repetition rate can be customized.
[Features]
Pulse width 10~100 ps
Wavelength 532nm
High stability
[Application]
High power laser
Supercontinuum generation
Seed laser
[Specifications]
| Parameter |
Unit |
Value |
Remarks |
| Model |
|
PSPL-532-25-50-20-FR-M |
|
| Wavelength |
nm |
532 |
515/532nm Customizable |

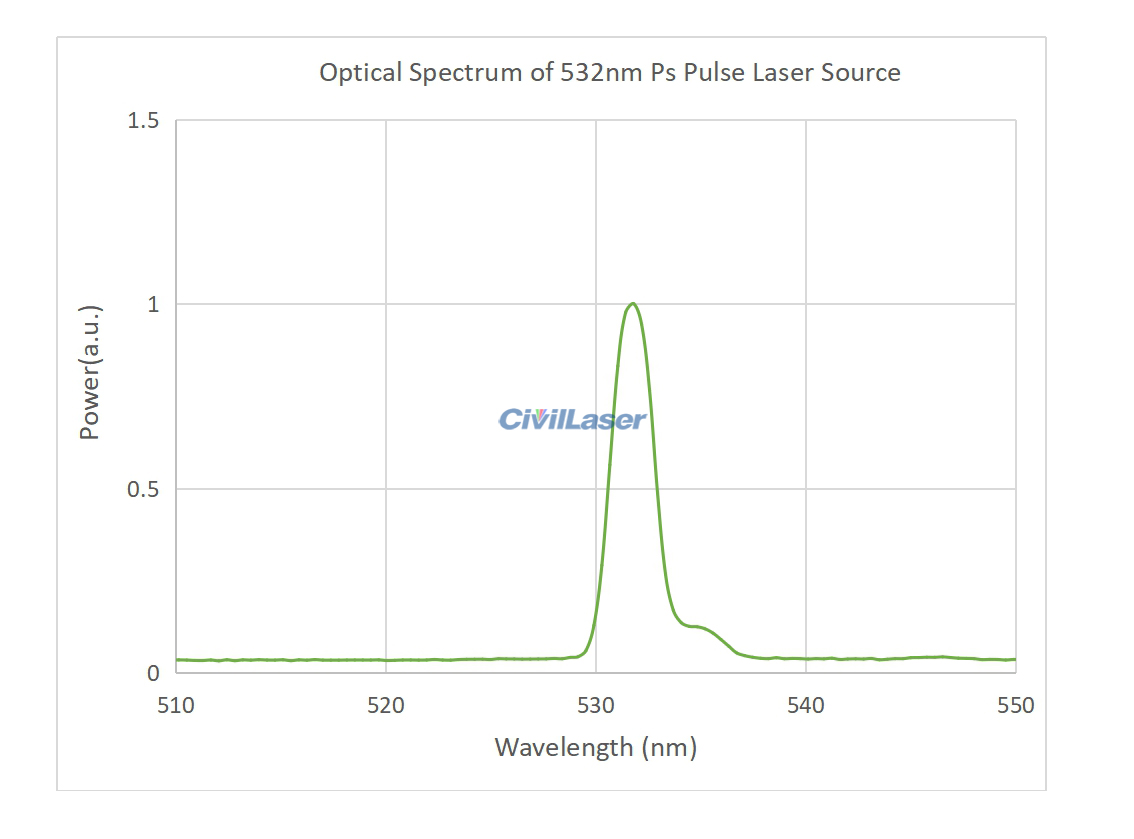

| Spectral Width |
nm |
1~2nm@3dB |
Customizable |

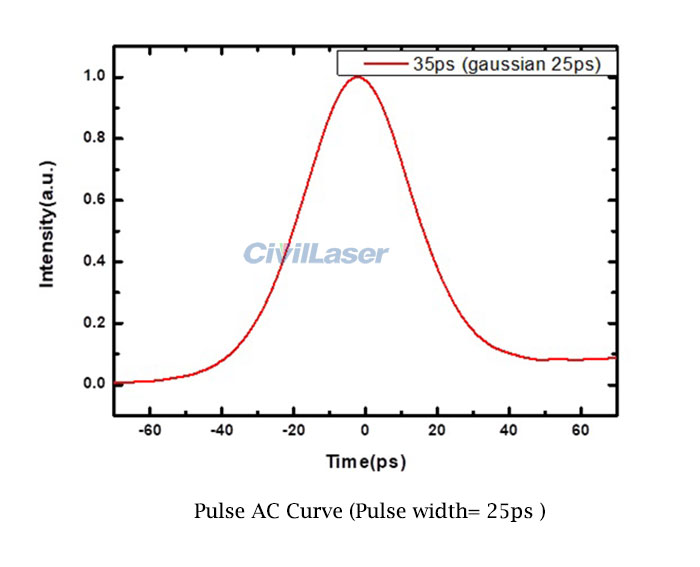

| Pulse Width |
ps |
≤25 |
10/20/50/100ps Customizable |
| Output Power |
mW |
≥50 |
Customizable |

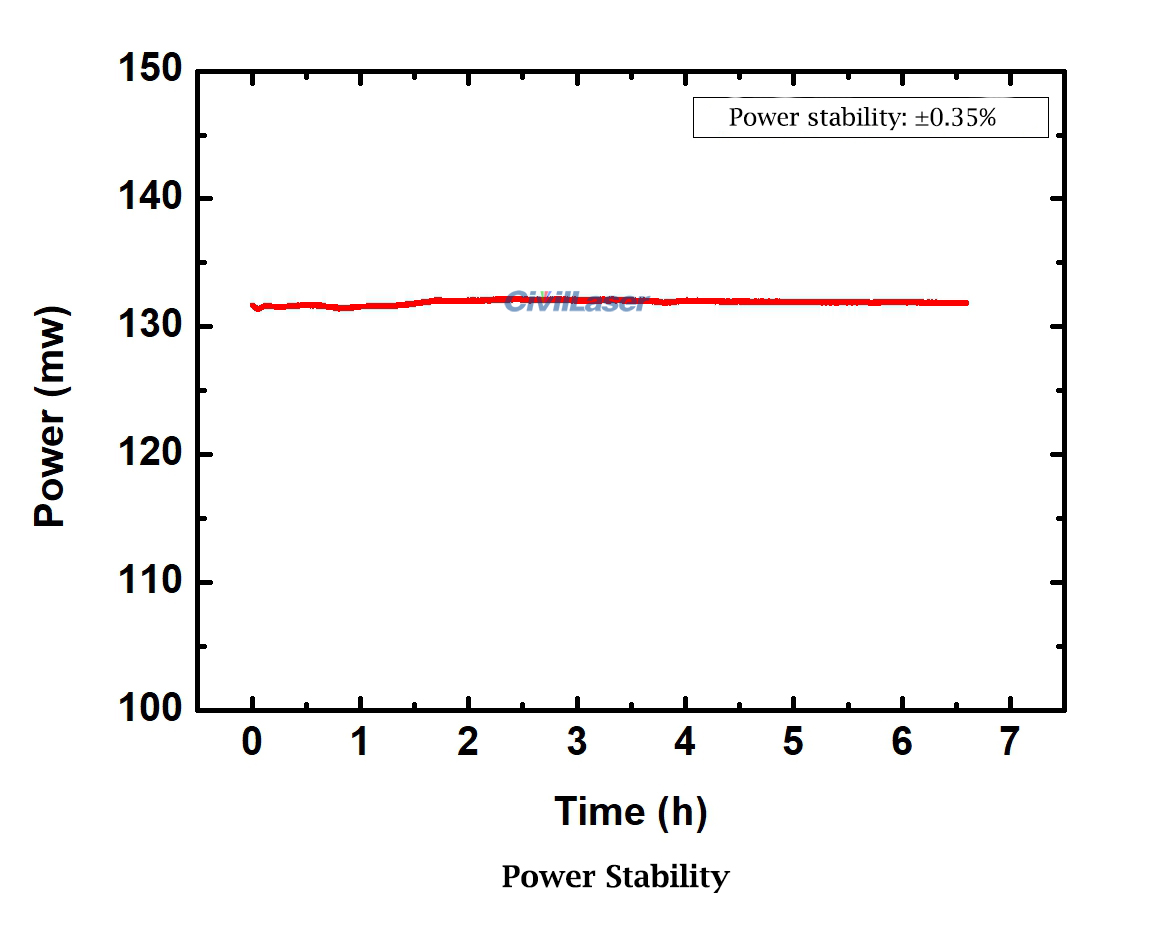

| Power Instability |
|
<± 1% |
25℃, 5 minutes after starting |

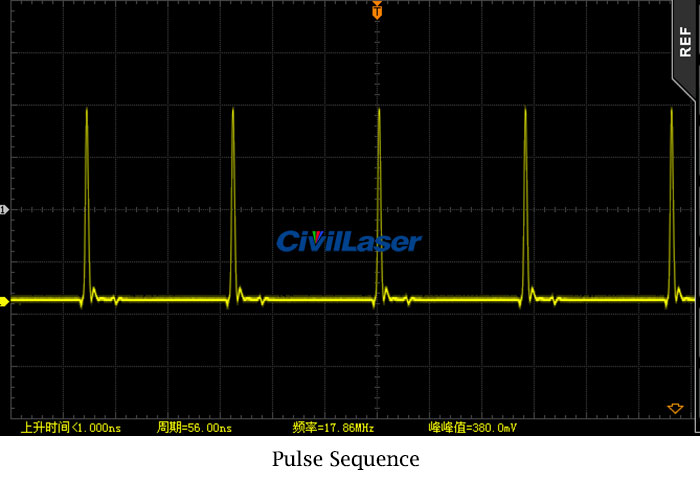

| Repeat Frequency |
MHz |
20±1 |
15~100MHz Customizable |
| Single Pulse Energy |
nJ |
>0.5 |
|
| Stable Time of Mode Locking After Startup |
s |
<20 |
|
| Laser polarization state |
|
Linear polarization |
|
| Ouput Type |
|
Spatial light collimated output |
|
| Preheat Time |
min |
<1 |
|
Electrical and environmental parameters：
| Parameter |
Desktop Type |
Module Type
(Current Product)
|
| Control Mode |
Button |
RS232 Serial communication |
| Synchronous Electrical Signal Interface |
USB |
USB |
| Power Supply |
AC 100~240V |
DC 5V, 4A |
| Size |
330(W)×398(D)×112(H)mm |
200(W)×121(D)×65(H)mm |
| Operating Temperature |
5 ~ 45°C |
| Operating Humidity |
0~70% |
