The micro-optical reflectance testing platform produced by our company has the characteristics of stable center and multi-directional control of the incident and exit angles of optical fibers. Widely used for non-fixed angle measurement.

Reflection is the basic means of spectral measurement. In order to realize the measurement of reflectance spectrum, spectrometer, light source, optical fiber, measuring bracket, standard reference sample and measuring software are usually needed. For different kinds of samples, in order to obtain the best spectral data, the basic mode of reflection will evolve into more forms.

With these equipments, our company can build a variety of common spectral measurement systems. The reflectance spectrum measurement system can be equipped with one or two brackets for measuring the reflectance of solid and powder samples. This product can also be used to fix optical fiber probe and light source, with very good flexibility and practicability.

SPECIFICATIONS:
Reflective FS Series Brackets：

FA-TA(D6.35)
FA-TA1 1-way TA joint reflector bracket:
1, Can install 1 TA joint of Y-type Optical Fiber;
2, Mainly used for solid surface reflection and laser fluorescence measurement
3, A cylinder with a diameter of 6.35mm can be installed, fixed hole diameter 6.35mm;

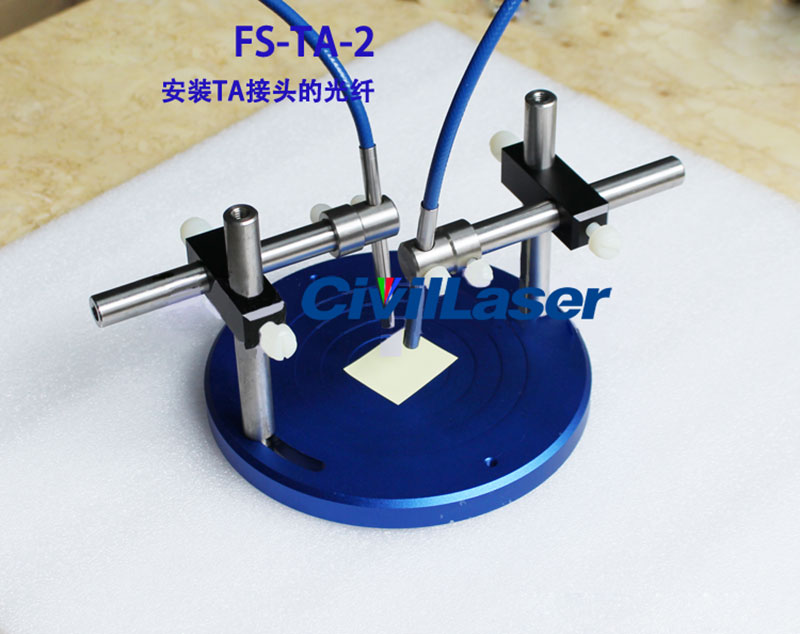

FA-TA2 2-way TA joint reflector bracket:
1, Can install 2 TA joint of Y-type Optical Fiber;
2, Mainly used for solid surface reflection and laser fluorescence measurement;
3, Each front end of TA joint can be fitted with an optical fiber collimator.

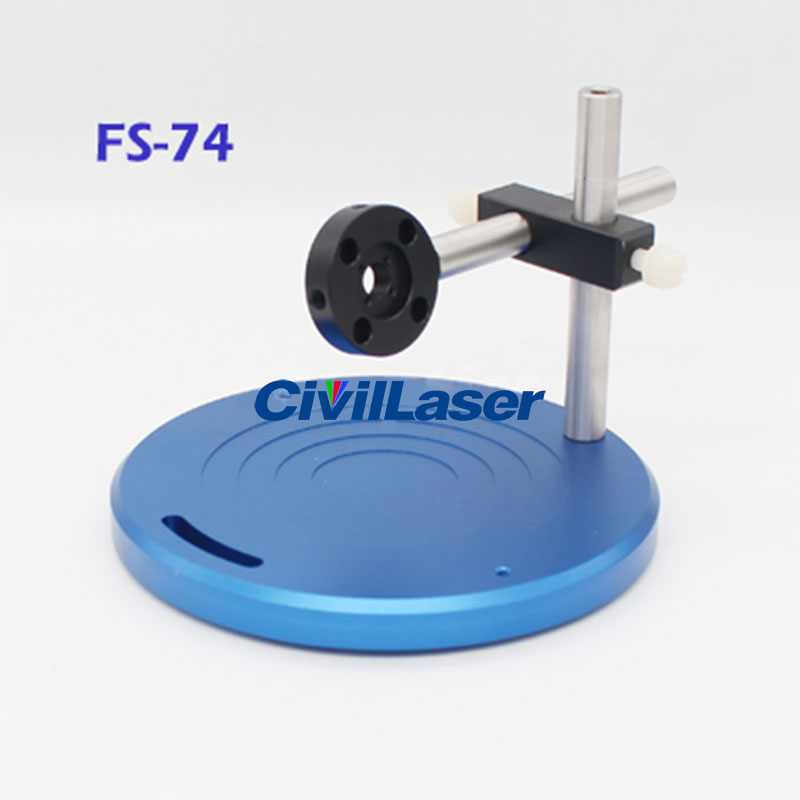

FS-74  74-UV Collimater bracket SMA Flange Bracket:
1, Can install 1 74-UV collimator;
2, Easy to adjust the angle of collimator or optical fiber.

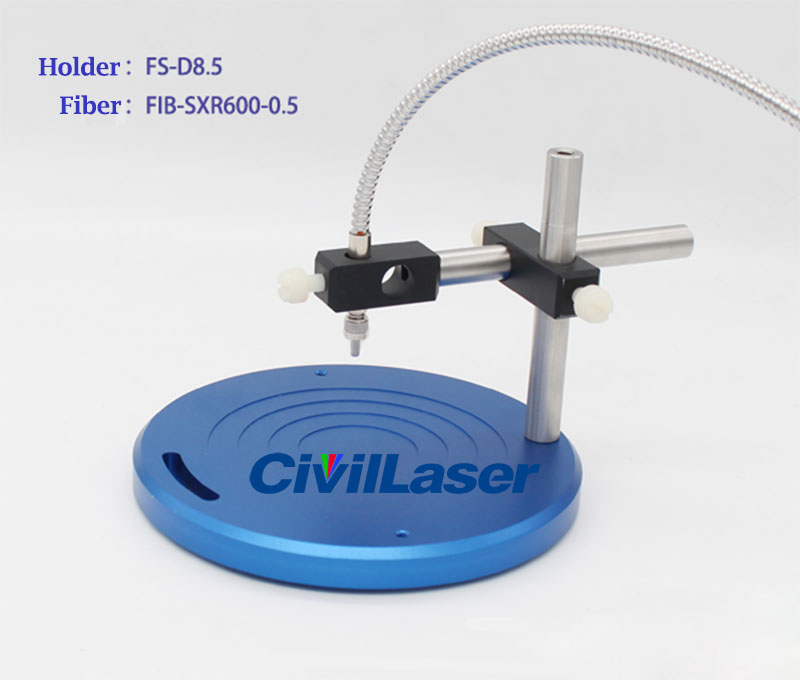

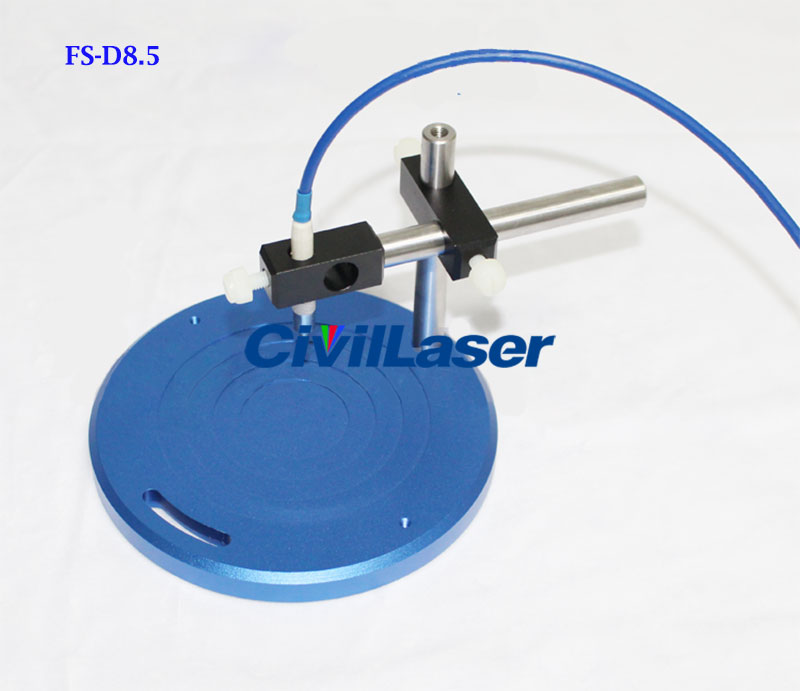

FS-D8.5 SMA905 fiber Bracket:
1, Can install 1 SMA905 connector fiber;
2, A cylinder with a diameter of 8.5mm can be installed, fixed hole diameter 8.5mm.

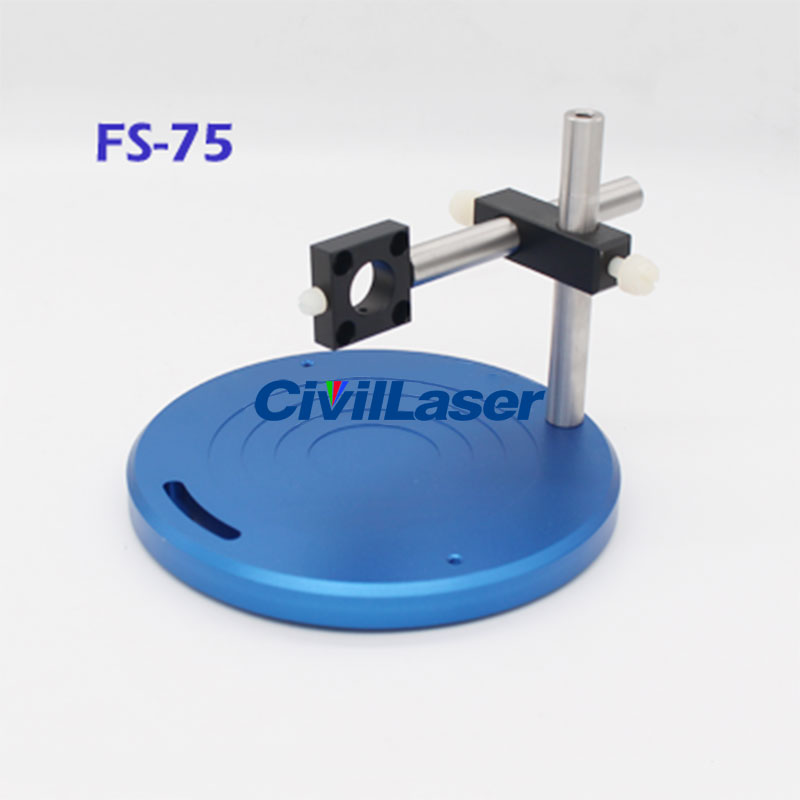

FS-75 75 Series Lens Bracket:
1, Can install 75 series lens;
2, A cylinder with a diameter of 16mm can be installed, fixed hole diameter 16mm;

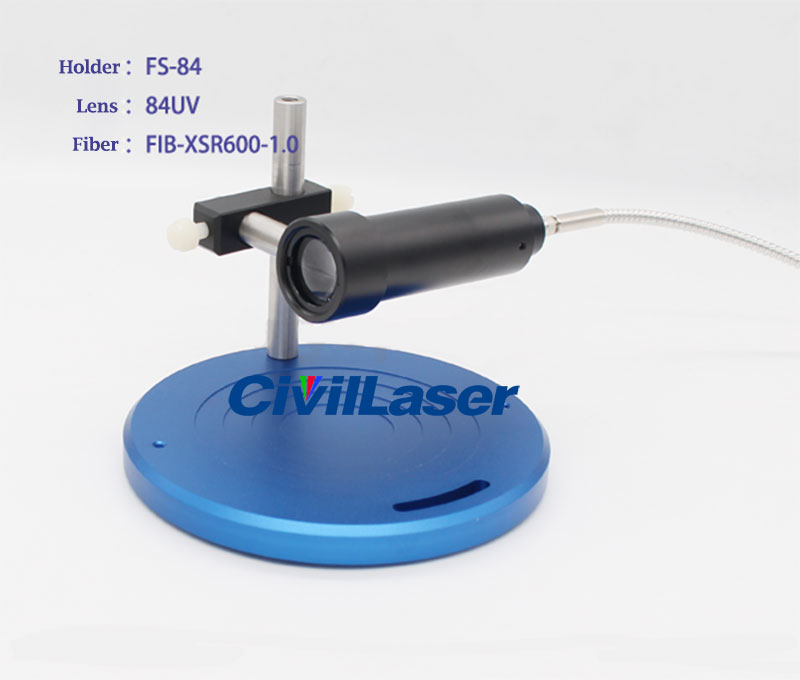

FS-84 84-UV Series Lens Bracket:
1, Can install 84 series lens;
2, Equipments with M4 screw holes can be installed.

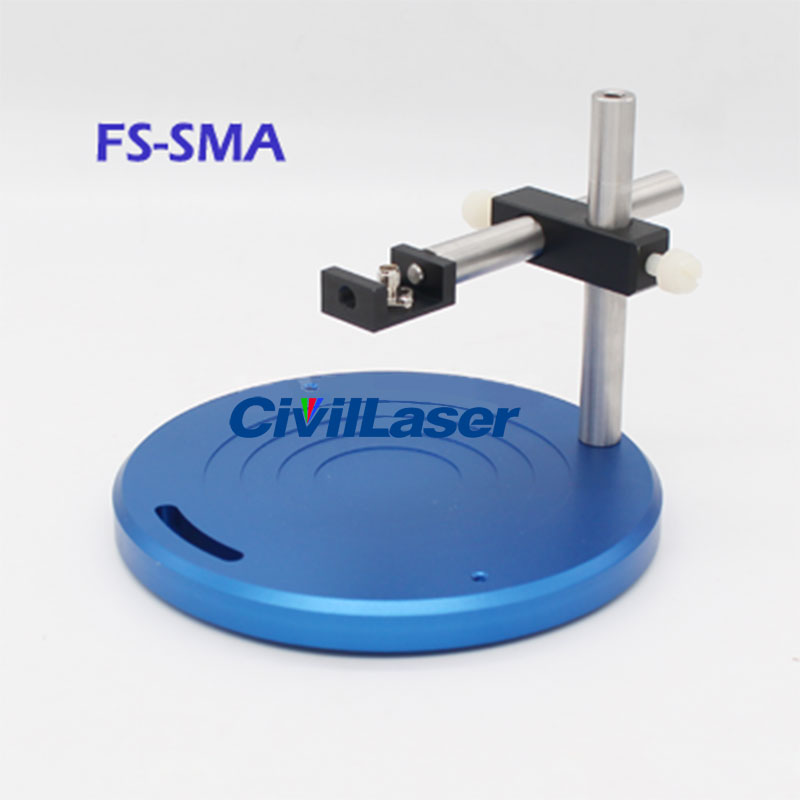

FS-SMA SMA905 fiber bracket:
Can fix any SMA connector fiber.

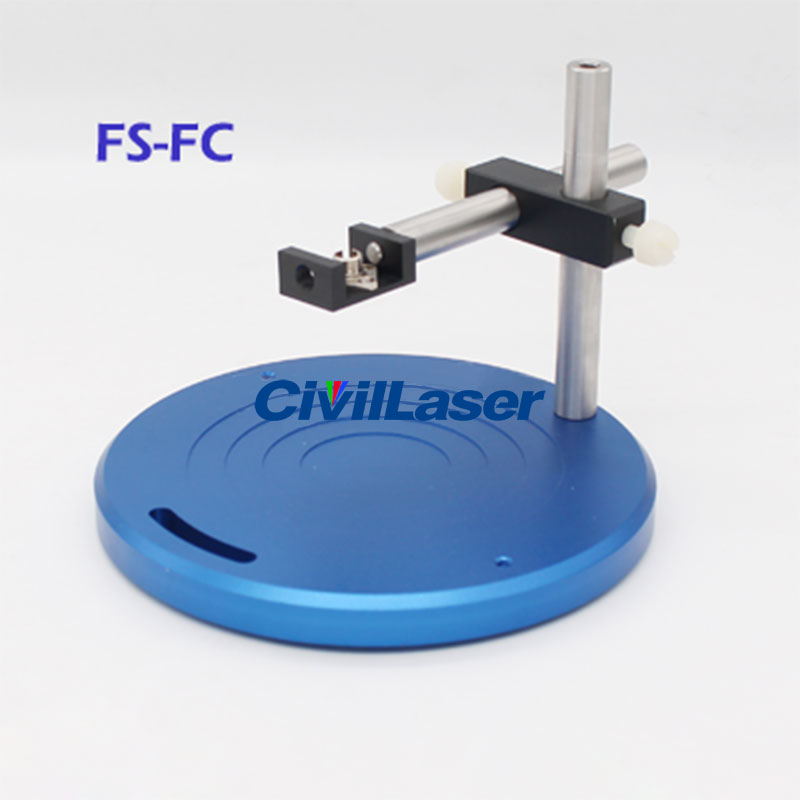

FS-FC FC fiber bracket:
Can fix any FC connector fiber.

FC-D12 Optical support:
A cylinder with a diameter of 12mm can be installed, fixed hole diameter 12mm.

FS-IS30/50T Integral Sphere Projection Bracket-TA connector:
1, Can install 1 TA connector fiber;
2, Can install an inverted integrating sphere.

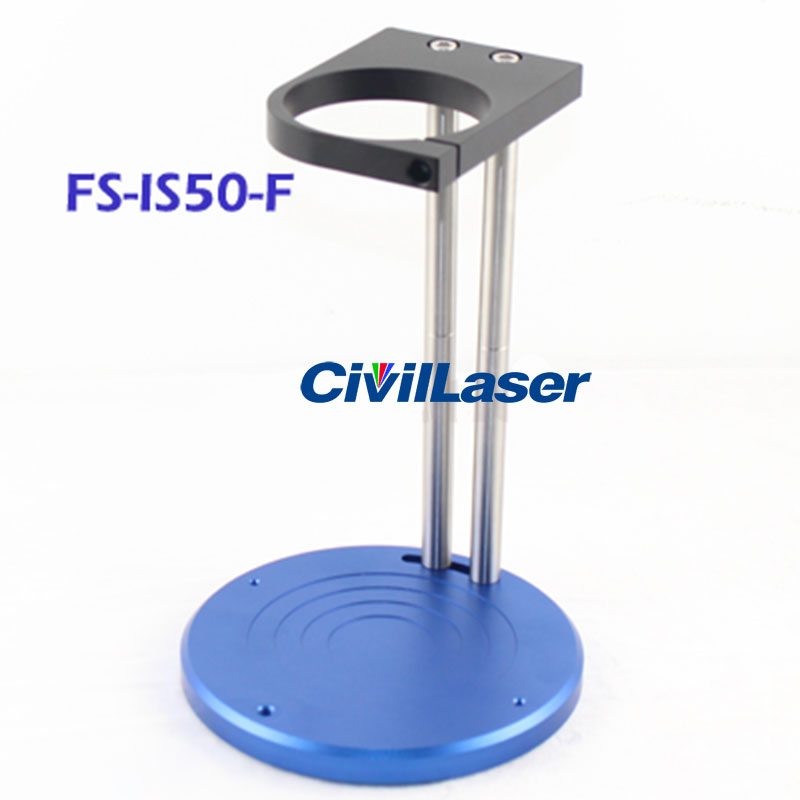

FS-IS30/50F Integrating sphere transmission bracket-TA connector:
1, Can install 1 TA connector fiber;
2, Can install an inverted integrating sphere.

FS-IS30/50F Integral sphere diffuse reflector bracket:
1, You can install 1 integral sphere;
2, Diffuse Reflection Measurement for Solid Surface.

FS-IS30/50TF Integrating sphere transmission + diffuse reflector bracket:
Bracket fusing transmission and reflection of integrating sphere.
