650nm 50mW~500mw Red laser module Dot/Line/Crosshair,Industrial Laser Module,Industrial positioning,Focus adjustable
Note:
500mw is out of stock.
This product has passed the environmental protection ROHS. European CE.IOS-9001 system. Other international safety quality environmental authority certificate.
SPECIFICATIONS:
Name: 650nm 50mW~500mw Industrial Red laser module
Output Wavelength: 650nm
Output Power: 50mW~500mW (choice)
Laser Shape: Dot/Line/Crosshair (choice)
Laser Spot size: focusable
Laser type: Visible laser, Red color
Outside Color: Black
Outer Casing Material: Aerospace aluminum Oxidation Absolute source Technology
Operating Voltage: DC=3V ~ 5V
Operating Current: 100mA~200mA
Laser Class: IIIB
Operating Temperature: -10℃~+40℃
Storage Temperature: -10℃~70℃

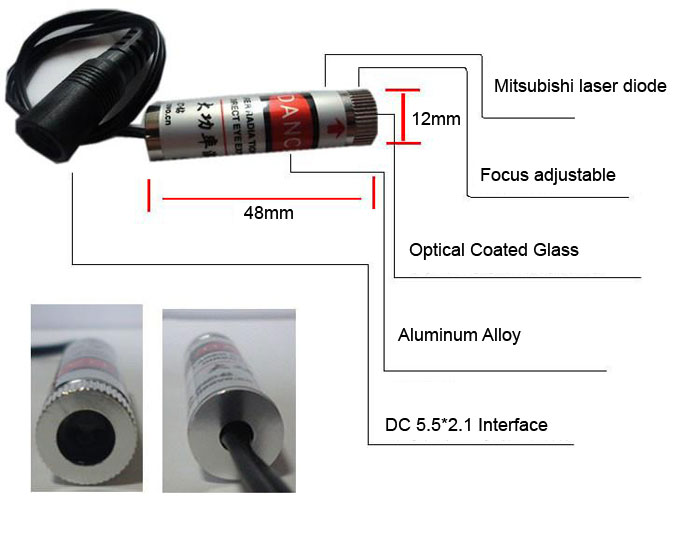

Size: φ12*48mm
Weight: 12.88g
Continuous work warning: More than 40 degrees,it need to dissipate the heat.
Working life: 6000 hours
Outer Casing Material: Aerospace aluminum Oxidation Absolute source Technology
Power Stability: < 1% (10H)
Laser Line width: Adjustable / 1m Distance => The minimum width Φ1.5mm
Fan Angle: 120°(Default) -- 60°90°(choice) -- Only for Line,Crosshair
Structural features: laser tube + lens + IC driver board
Package includes:
1 x Red laser module
1 x Power Transformer (Choice)
1 x Laser Module Adjustable Holder/Clamp/Mount Heatsink (Choice)
Warning :
1. All of laser products are harmful for eyes,please don't aim people eyes(contain animal eyes) directly.
2. It is Industrial laser ,not toy .Keep far from Children under 18years old.
