1000mW High Power Single-mode C-Band ASE Broadband Light Source ASE-C-1000-T-SM-B Desktop type
The fiber ASE broadband light source is an incoherent light source, which is the spontaneous radiation generated by the semiconductor laser pumping erbium-doped silica fiber, and the spectral flattening technology is introduced to achieve a broadband flat spectrum. The wavelength of the light source covers the C-band, and the spectral flatness is better than 3dB. It is output through single-mode fiber or polarization-maintaining fiber, which is suitable for applications such as fiber sensing.
[Features]
Spectrally flat
Wide spectral range
High output stability
[Applications]
Fiber optic sensing
Medical imaging
Production testing
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
--
|
ASE-C-1000-SM-B /
ASE-C-1000-T-SM-B
|
T: Tunable power
|
|

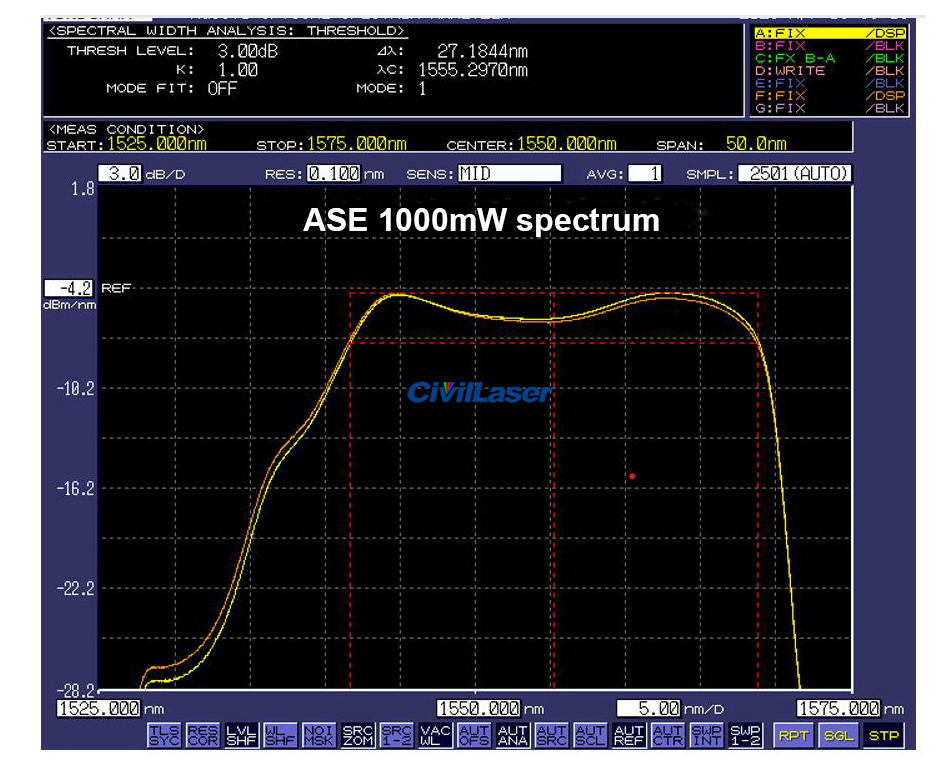

Spectral Range
|
nm
|
1528~1563
|
C-band
|
|
Ouput Power
|
mW
|
1000
|
|
|
Power Adjustable Range
|
--
|
10%~100%
|
(Optional function)
Note: Spectral flatness does not change.
|
|
Spectral Flatness
|
dB
|
3
|
|
|
Output Isolation
|
dB
|
>35
|
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Polarization Extinction Ratio
|
dB
|
≤ 0.2
|
|
|
Pigtail Type
|
--
|
SMF-28 Single mode fiber
|
Ф=3mm loose tube，L=1m
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Electrical and Environmental Parameters
|
Desktop Type
(Current product)
|
Module Type
|
|
Control Method
|
Touch screen/RS232 serial communication
|
RS232 Serial communication
(Only for power Tunable )
|
|
Communication Interface
|
DB9 Female(Default not include)
(Only for power Tunable )
|
DB9 Female
(Only for power Tunable )
|
|
Power Supply
|
AC 100~240V
|
DC 12V, 3A
|
|
Size
|
260(W)×320(D)×120(H)mm
|
125(W)×150(D)×31.5(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
