780nm 5mw-200mw IR Laser Module Dot Focusable With TTL Modulation

780nm 5mw-200mw IR Laser Module Dot Focusable With TTL Modulation

[Features]
Continuous laser with TTL modulation 0-50KHz(Adjustable)
Ultra high brightness indoor and outdoor
Clear and bright and soft light
Stability is particularly high can open 24 hours a day

[Tips]

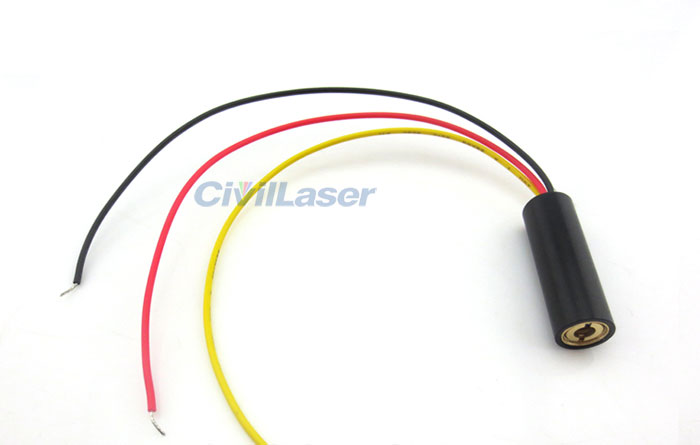

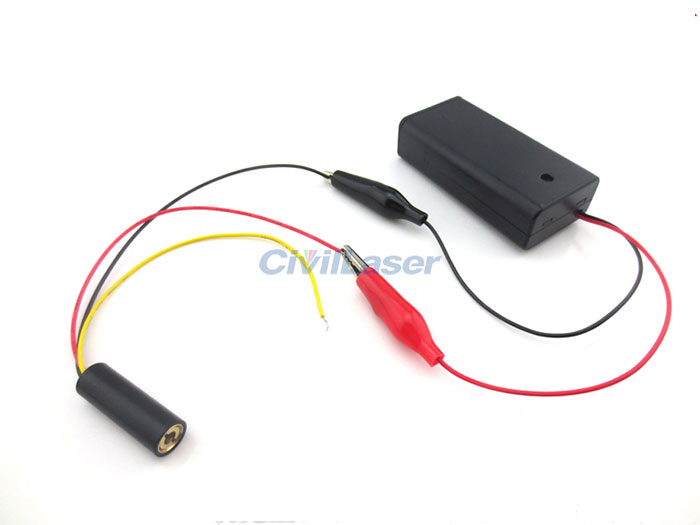

The red line is connected with a power supply cathode
The black line is connected with a power supply anode,
Yellow with TTL modulation signal

780nm 5mw IR Laser Module Dot With TTL Modulation
[Specifications]
Output Wavelength:780nm
Output Power: 5mw
Operating Voltage: DC 2.8-5.2（V）
Operating Current:≤35mA
Modulation Voltage: DC 2.8-5.2V (0V off, 2.8-5.2V on)
Modulation Frequency: 1HZ-100KHZ
Spot Mode:dot ( focus adjustable)

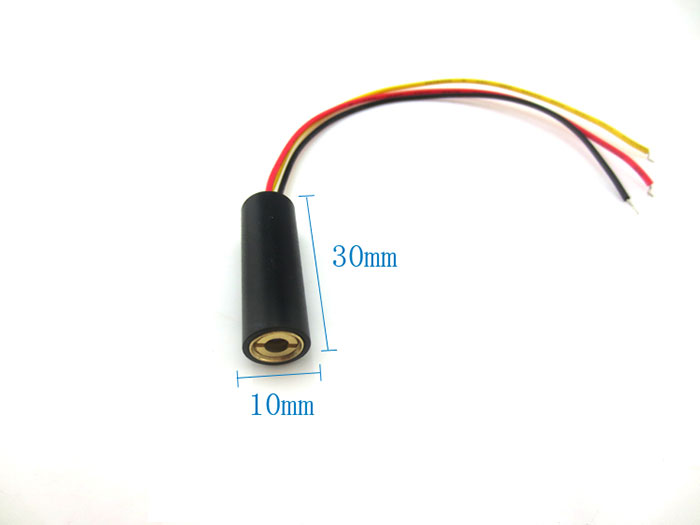

Appearance size: 10*30mm(Default Size), we can make 12*50mm, 16*70mm
-----------------------------------------------------------------------------------
780nm 10mw IR Laser Module Dot With TTL Modulation
[Specifications]
Output Wavelength:780nm
Output Power: 10mw
Operating Voltage: DC 2.8-5.2（V）
Operating Current:≤60mA
​Modulation Voltage: DC 2.8-5.2V (0V off, 2.8-5.2V on)
Modulation Frequency: 1HZ-100KHZ
Spot Mode:dot ( focus adjustable)
Appearance size: 10*30mm(Default Size), we can make 12*50mm, 16*70mm
-----------------------------------------------------------------------------------

780nm 50mw IR Laser Module Dot With TTL Modulation
[Specifications]
Output Wavelength: 780nm
Output Power:50mw
Operating Voltage: DC 2.8-5.2(V）
Operating Current:≤120mA
Modulation Voltage: DC 2.8-5.2V (0V off, 2.8-5.2V on)
Modulation Frequency: 1HZ-100KHZ
Spot Mode:dot ( focus adjustable)
Appearance size: 10*30mm(Default Size), we can make 12*50mm, 16*70mm

-----------------------------------------------------------------------------------
780nm 100mw IR Laser Module Dot With TTL Modulation
[Specifications]
Output Wavelength:780nm
Output Power:100mw
Operating Voltage: DC 2.8-5.2（V）
Operating Current:≤180mA
Modulation Voltage: DC 2.8-5.2V (0V off, 2.8-5.2V on)
Modulation Frequency: 1HZ-100KHZ
Spot Mode:dot ( focus adjustable)
Appearance size: 10*30mm(Default Size), we can make 12*50mm, 16*70mm

-----------------------------------------------------------------------------------

780nm 150mw IR Laser Module Dot With TTL Modulation
[Specifications]
Output Wavelength:780nm
Output Power:150mw
Operating Voltage: DC 2.8-5.2（V）
Operating Current:≤250mA
Modulation Voltage: DC 2.8-5.2V (0V off, 2.8-5.2V on)
Modulation Frequency: 1HZ-100KHZ
Spot Mode:dot ( focus adjustable)
Appearance size: 12*50mm (Customziable)

-----------------------------------------------------------------------------------

780nm 200mw  IR Laser Module Dot With TTL Modulation
[Specifications]
Output Wavelength:  780nm
Output Power: 200mw
Operating Voltage: DC 2.8-3.2（V）
Operating Current:≤350mA
Modulation Voltage: DC 2.8-5.2V (0V off, 2.8-5.2V on)
Modulation Frequency: 1HZ-100KHZ
Spot Mode:dot ( focus adjustable)
Appearance size: 12*50mm (Customziable)

[Package includes]
1 x laser module
