670nm 10mw Red laser module focus adjustable Dot/Line/Crosshair

670nm 10mw Red laser module focus adjustable Dot/Line/Crosshair

[Feature]
1. 670nm is pure red light, laser light is bright and soft and not dazzling.;
2. Spot size/Line width adjustable from 0.4mm to several centimeters;
3. Line / cross lens angle from 5° to 120° optional;
4. Good heat dissipation, shockproof, anti falling and antistatic;
5. Diode Direct Light Emission, it's very stable and can be turned on 24 hours;
6. Intelligent Drive Board with Import IC;
7. High temperature and corrosion resistant DC plug line is suitable for all-weather and all-environment use.

[Specification]
Product Name: 670nm Laser Module
Wavelength: 670nm
Output Power: 10mW
Laser Shape: Dot / line / crosshair (choose)
Operating Voltage: DC 2.8-5.2（V）
Operating Current: <80mA

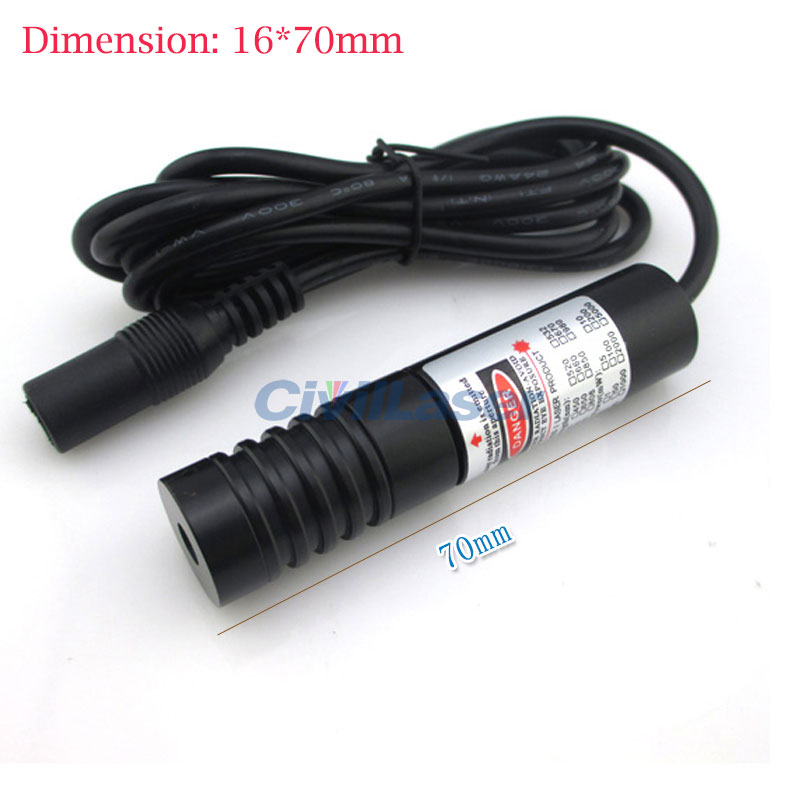

Size: 16*70 mm(Can be customized)
Include: Laser module + adjustable power supply + laser holder

Dot laser:

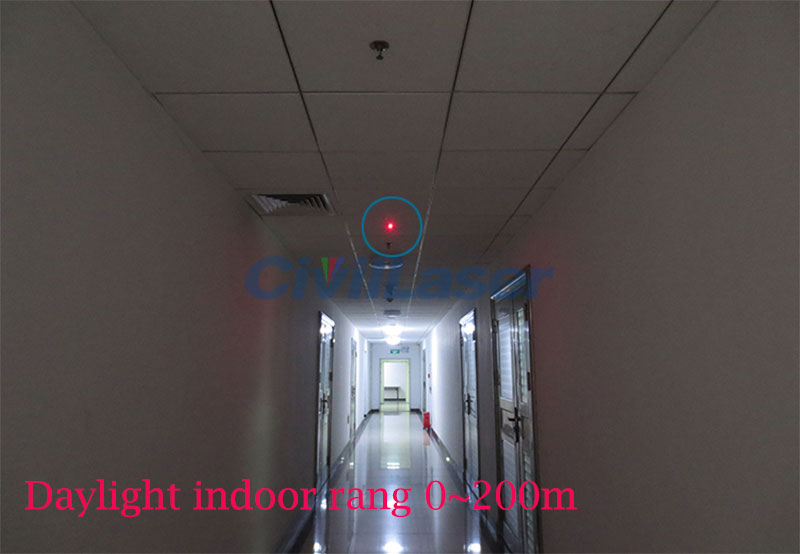

In the daytime indoors, laser range 0-200 meters ;
In the daytime and half outdoors, laser range 0-80 meters;
In dark environment, the laser range 0-500 meters.

Line Shape:

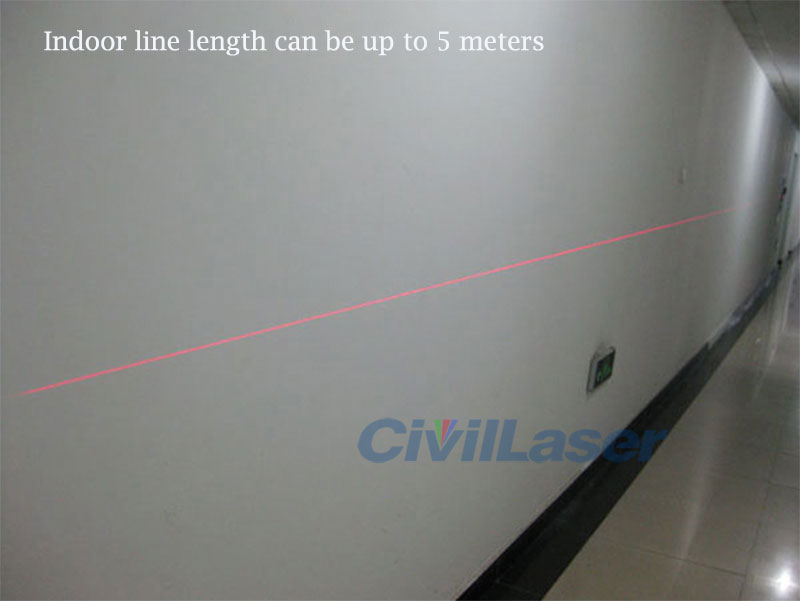

The indoor use, the line length can reach 5 meters.

Cross Shape:
The indoor environment can reach 3 meters (the horizontal and vertical lines of the cross are 3 meters long, respectively).
