1310nm 50~100mW SM Fiber Coupled Laser Stabilizing Laser System

1310nm 50~100mW SM Fiber Coupled Laser Stabilizing Laser System

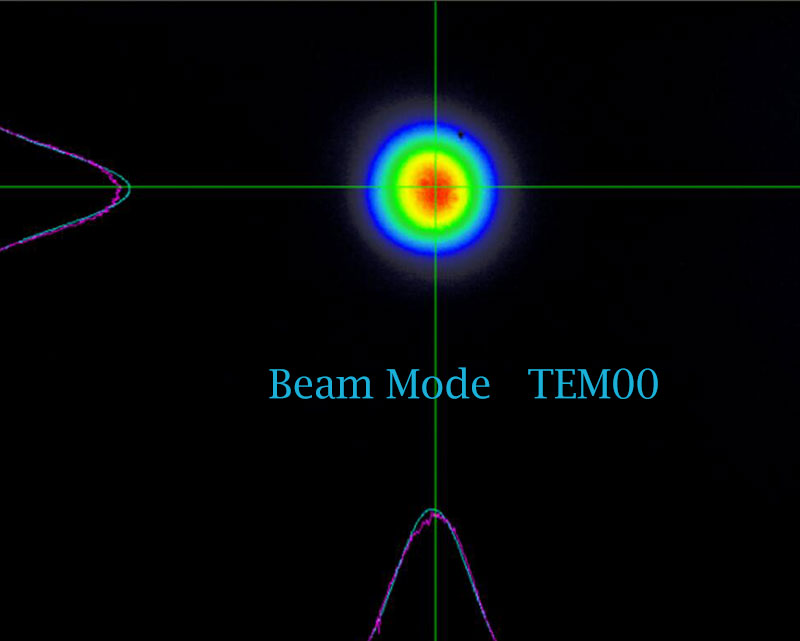

The laser is a single mode fiber coupled to a 1310nm semiconductor laser. The coupled fiber output power is stable and the spot mode is TEM00 mode. The beam quality is very good and can meet the demand for higher beam quality requirements.

[Specifications]
Wavelength: 1310nm±20nm
Output Power: 50mW/100mW (Choose) (@ Fiber output side, and 0~max power adjustable)
Spectral Linewidth: 10nm
Fiber Type: SM / PM (Choose)
Fiber Interface: FC/PC, FC/APC, SMA905 (Choose)
Polarization Ratio: >70:1 (Only for PM fiber)
Output stability (rms): <3% over 2 hours
Operating Temperature: 0°C-40°C
Storage Temperature:  -40°C-85°C
Modulation: 0~10KHz TTL
Warm-up Time (minutes): <5
Expected Lifetime (hours): >5000
Warranty Time: 1 Year

Notes:
This is a custom product.If you need other output powe or have special requirements, please contact us.
Lead Time: 2~4 weeks! Custom product available!
