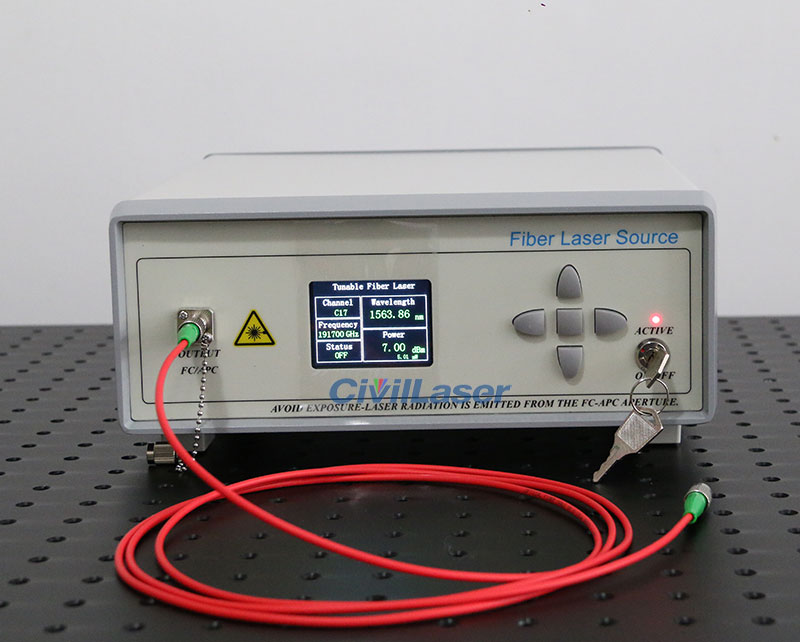

C-Band 1529~1567nm Wavelength Tunable Fiber Laser 96 multi wavelengths laser Desktop type TFL-C-96-20-SM-B
The wavelength tuning range of this light source covers the C-band, achieving continuous laser output of up to 96 wavelengths (ITU-T standard wavelength, wavelength interval 50GHz). Integrating an adjustable filter and a high-gain chip, it has the characteristics of high output optical power, narrow linewidth, and high wavelength accuracy. Equipped with a dedicated drive control circuit, a high-definition color LCD screen, and optional host computer software, users can easily and accurately tune the wavelength. It can be used in DWDM system research and development, fiber laser, fiber link, optical testing and other fields.
[Features]
1. Up to 96 wavelengths
2. High power stability
3. High side mode rejection ratio
4. Excellent relative intensity noise
[Applications]
1. DWDM system
2. Fiber link
3. Optical device testing
[Specification]
|
Parameters
|
Unit
|
Typical Value
|
Remarks
|
|
Model
|
--
|
TFL-C-96-20-SM-B
|
|
|
Wavelength Tuning Range
|
nm
|
1529.16~1567.13
|
ITU Standards H60~C13
|
|
Frequency Tuning Range
|
THz
|
191.3~196.05
|
|
|
Channel Spacing
|
GHz
|
50
|
Equivalent to 0.4nm
|
|
Side Mode Suppression Ratio(SMSR)
|
dB
|
>50
|
|
|
Wavelength Channels
|
--
|
96
|
|
|
Output Power
|
mW
|
20
|
|
|
Power Adjustable Range
|
--
|
Near 10%~100%
|
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ 0.01
|
Single wavelength full temperature
|
|
Long-term Stability (8 hours)
|
dB
|
≤ 0.025
|
Single wavelength full temperature
|
|
Pigtail Fiber Type
|
--
|
SMF-28e
|
L=1m
|
|
Fiber Interface Type
|
--
|
FC/APC
|
|
|
Electrical and environmental parameters
|
DeskTop Type
|
|
Control method
|
Button
|
|
Communication interface
|
DB9 Female(Default not include)
|
|
Power supply
|
AC 100~240V
|
|
Size
|
260(W)×280(D)×120(H)mm
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|
