976nm 25W High Power Multi-mode Fiber Coupled Pump Laser Desktop Type MHPL-976-25-MM-B
976nm MM Fiber Coupled High Power Pump Laser Source
High-power laser light source is based on high-performance semiconductor laser chip, 105/125um fiber coupling output. The professionally designed constant current drive and temperature control circuit ensure the safe and stable operation of the laser. Some models have wavelength locking, and the spectral stability can be better than ±3nm. Ideal for medical research, fiber laser pumping, and other production testing. It adopts desktop package, with color LCD screen, and the power is adjustable, and host computer monitoring software can be provided.
[Features]
1. High output power
2. Power and spectral stability
3. Module or desktop package (Current laser is Desktop type)
[Applications]
1. Fiber laser pumping
2. Biomedical Science
3. Material laser processing

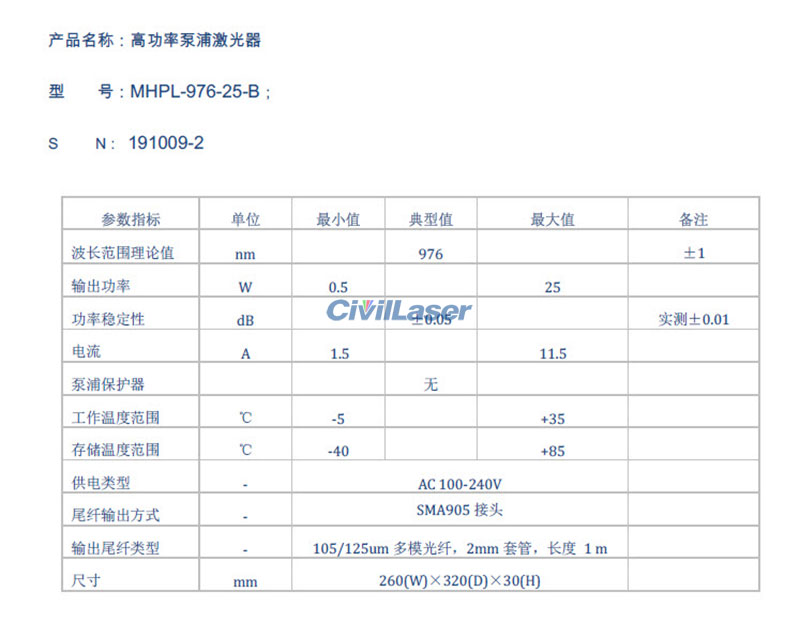

[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
|
MHPL-976-25-MM-B
|
|
|
Working Wavelength
|
nm
|
976
|
FBG Lock wavelength
|
|
Wavelength Accuracy
|
nm
|
±1
|
|
|
Working Mode
|
--
|
CW
|
Continuous light
|
|
Output Power
|
W
|
25
|
|
|
Power Adjustment Range
|
--
|
10~100%
|
|
|

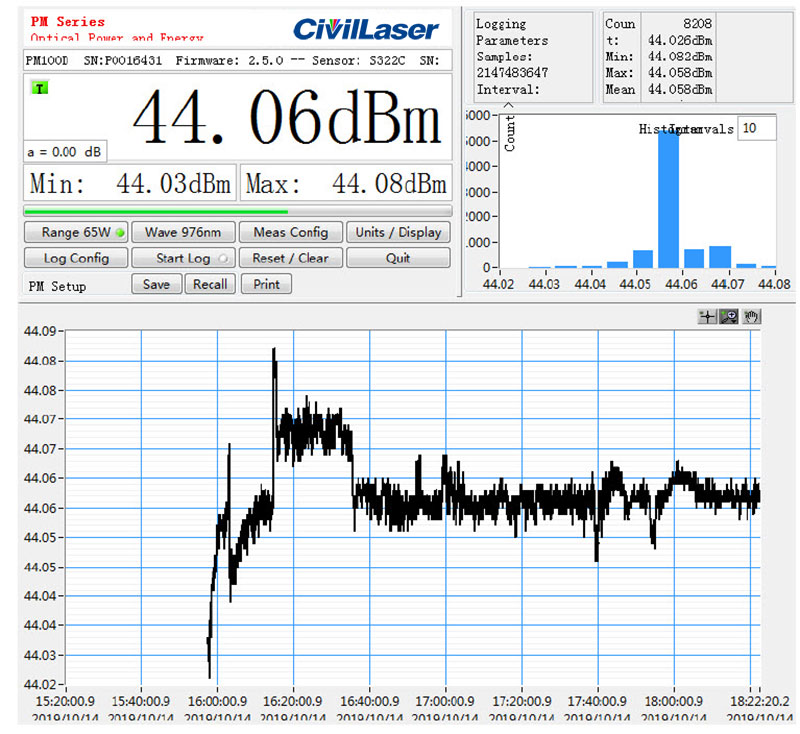

Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Pigtail Type
|
--
|
105/125μm multimode fiber, NA= 0.22
|
L=1m
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
No connector optional
|
|
Electrical and Environmental Parameters
|
Desktop Type
(Current product)
|
Module Type
|
|
Control Method
|
Button
|
RS232 serial communication
|
|
Communication Interface
|
DB9 Female
(Default not include)
|
DB9 Female
|
|
Power Supply
|
AC 100~240V
|
DC 12V, 5A
|
|
Size
|
260(W)×280(D)×120(H)mm
|
139(W)×235(D)×70(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
