EDFA-C-PA-35-SM-M15/M20 EDFA Erbium doped Fiber Amplifier C-Band Pre-Amplifier 35dB EDFA SM Fiber Module type

EDFA-C-PA-35-SM-M15/M20 EDFA Erbium doped Fiber Amplifier C-Band Pre-Amplifier 35dB EDFA SM Fiber Module type

The C-band erbium-doped fiber small signal amplifier (PA amplifier for short) is an amplifier specifically used for C-band weak optical signals in the range of -45dBm ~ -25dBm. The typical small signal gain is as high as 35~45 dB, and it has a low noise figure. It is usually used before photodetectors to improve their detection capabilities for weak optical signals.

There are two types EDFA.(Current product is Pre-Amplifier type.)
Pre - Amplifier, referred to as PA, that is preamplifier, used in the -35 ~ -25 dBm range of small light signal amplification, typical gain of 35 dB;
Booster - Amplifier, referred to as BA, is used to enhance the power of the optical signal in the range of - 6 ~ +10 dBm, with a maximum output power of 27 dBm;

[Characteristic]
high reliability
Wide operating wavelength range
High gain, gain flatness is good
High output power
Low noise

[Application]
Optical fiber communication
Optical fiber sensor
Optical fiber laser

[Specifications]

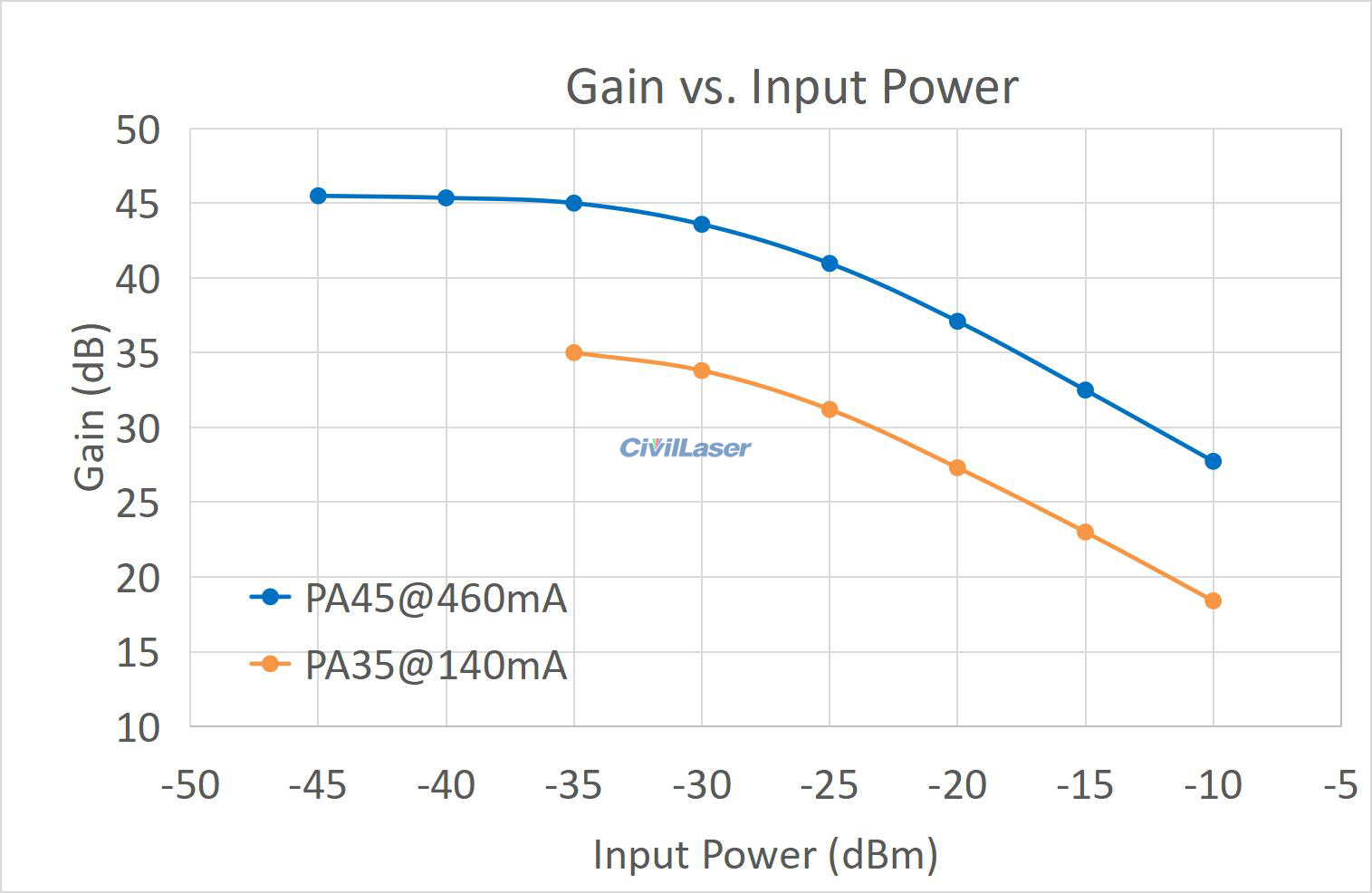

*Note: This EDFA product is designed for single wavelength signal input within the operating wavelength range, regardless of the gain spectrum flatness when multiple wavelengths are input simultaneously. As shown below, the EDFA-C-PA-35 small signal amplifier can achieve high gain amplification for input signals of different wavelengths in the C-band (multiple wavelengths are not simultaneously input to the EDFA in the figure), and the input power of a single wavelength is -35dBm , the effective gain is greater than 35dB, and the amplified signal-to-background noise ratio is greater than 30dB.

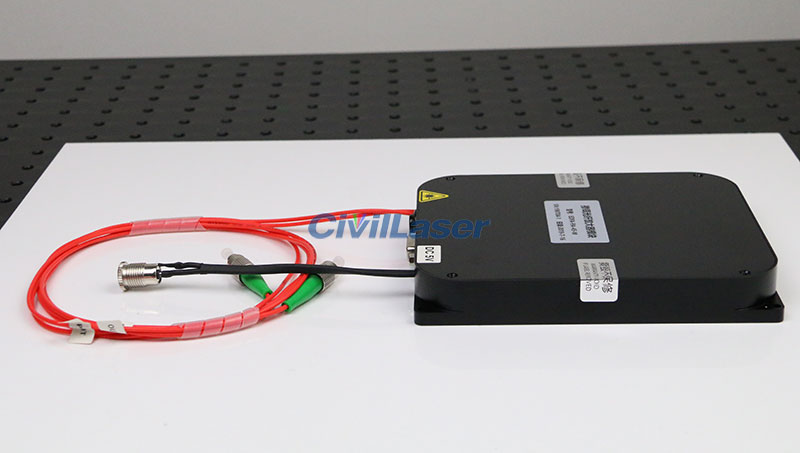

M20 Latest Product Images:

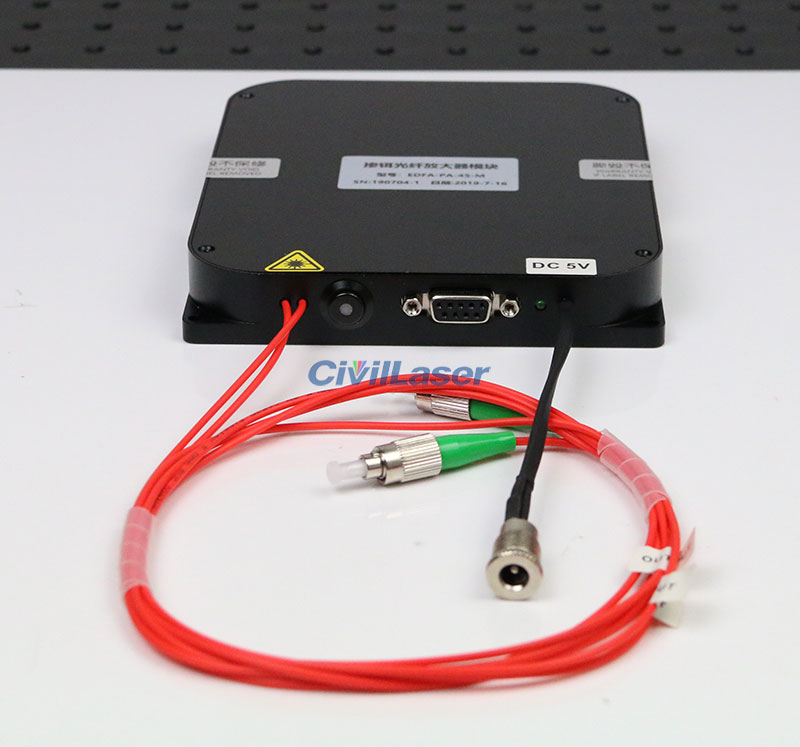

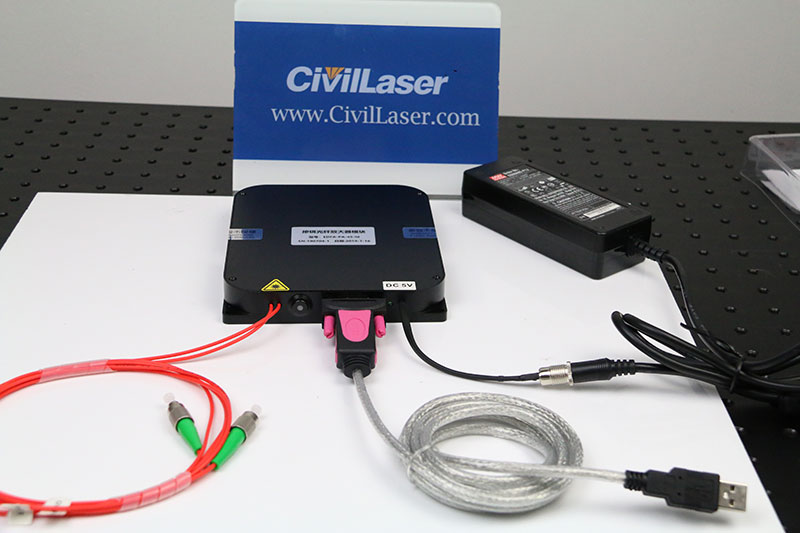

M15 Latest Product Images:
