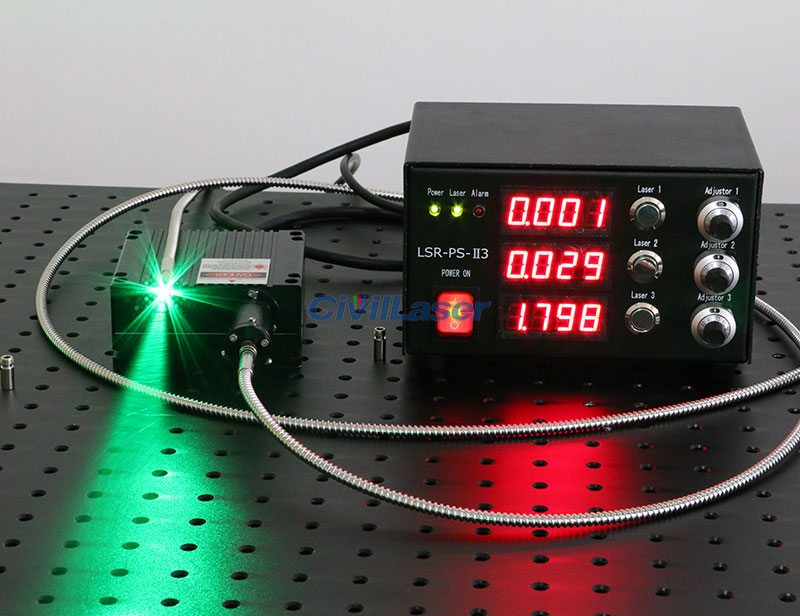

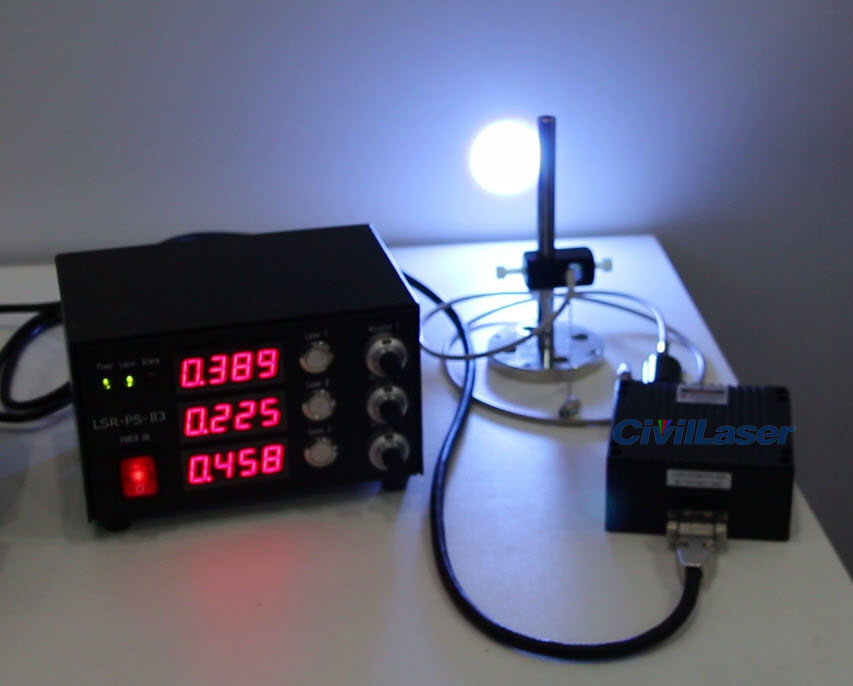

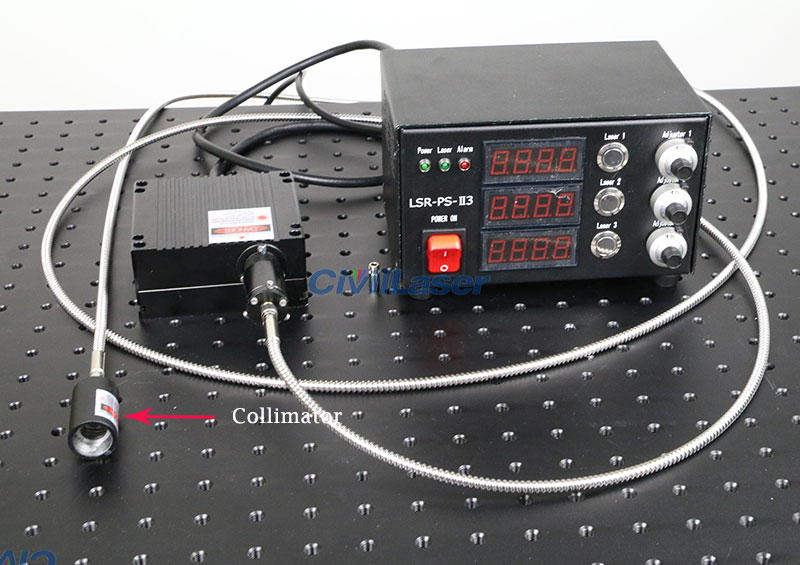

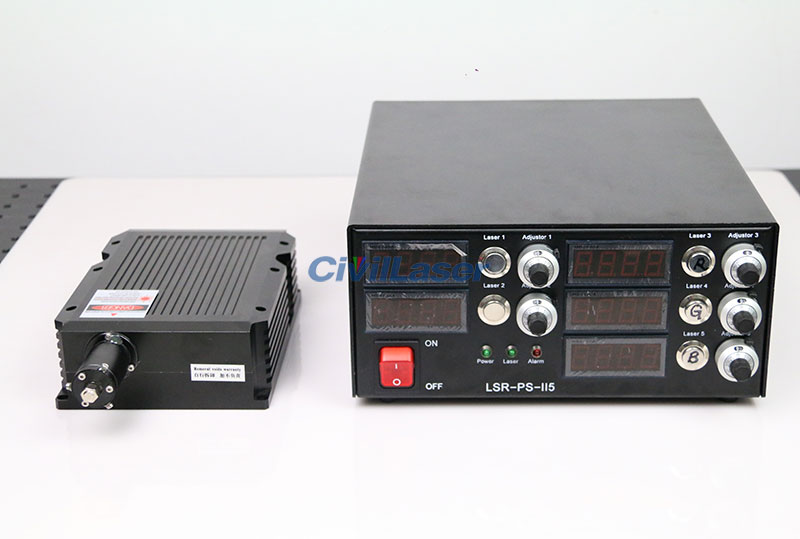

3IN1 RGB Laser 10W Fiber Coupled Laser Red/Green/Blue Laser Synthetic White Light

3IN1 RGB Laser 10W Fiber Coupled Laser Red/Green/Blue Laser Synthetic White Light

[Specifications]
Product Name: RGB laser With fiber coupled
Lead Time: 1~3 weeks
Output Wavelength: Red: 638nm, Green: 520nm, Blue: 450nm
Output Power: 10W -- (RGB together 10W)
Operating mode: CW or Modulation
Power stability: <3% per 4 hrs
Temperature Stabilizing: TEC
Warm Up Time: <1 minutes
MTTF(mean time to failure): 10,000 hrs
Fiber type: Multi-mode fiber/MM fiber
Fiber core diameter: 200um/400um/600um/800um/1000um (Choose)
Fiber Numerical Aperture:0.22NA(100um~400um)/0.37NA(600um~1000um)
Fiber interface(output): FC/PC, FC/APC, SMA905 (Choose)
Fiber length: 1m/2m/3m (Choose)
Laser Head dimension: Near 185(L)*128(W)*50.5(H)mm³ (Click here find detail)
Power Supply: Lab Adjustable Power Supply (Click here find detail)
Laser Radiator/Heat Sink: Not Include / Include (Choose) (Click here find detail)
Modulation: 0~30KHz
Warranty: 1 Year

[Default Wavelength & Output Power]
Red: 638nm-2W
Green: 520nm-2W
Blue: 450nm-6W

[Package include]
1 x RGB Fiber coupled  Laser
1 x Laser power supply
1 x Fiber

Note:
1. The picture is for reference only, different outpower laser product, with different product size.
    If customer is concerned about the product size, please contact us before purchasing.

2. The marked output power is before coupling, coupling efficiency is about 80%~90%.
    For example, the 3W laser's actual output power of fiber coupled laser is >2.4W.
