685nm 1W Red Fiber Coupled Laser With Power Supply

685nm 1W Red Fiber Coupled Laser With Power Supply

[Specifications]
Product Name: 685nm Fiber Coupled Laser
Lead Time: 1~3 weeks
Output Wavelength: 685±5nm
Output Power: 1W
Operating mode: CW or Modulation
Power stability: <3% per 4 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
MTTF(mean time to failure): 10,000 hrs
Fiber type: Multi-mode fiber/MM fiber
Fiber core diameter: 100um/200um/400um/600um/800um/1000um(choose)
Fiber Numerical Aperture:0.22NA(100um~400um)/0.37NA(600um~1000um)
Fiber interface(output): FC/PC, FC/APC, SMA905(choose)
Fiber length: 1m/2m/3m (Choose)
Laser Head dimension: Near 120(L)*56(W)*42(H)mm3 (Click here find detail)
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Standard Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)

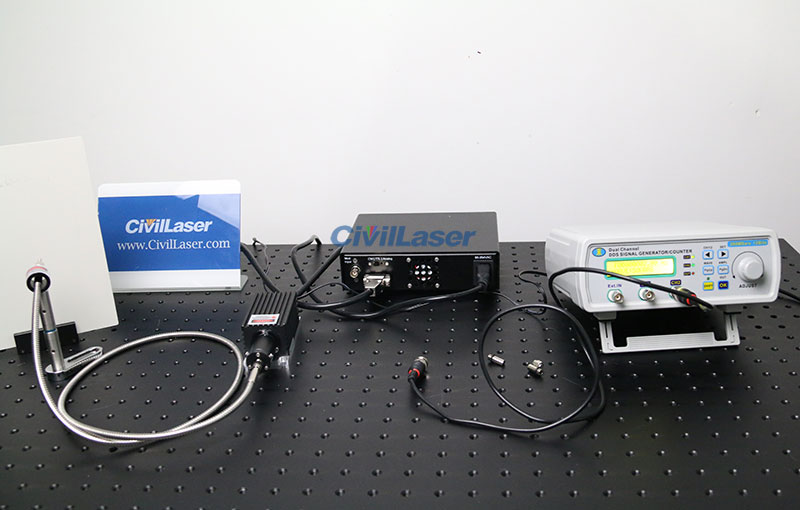

Modulation: 0~30KHz Analog or TTL
Warranty: 1 Year


Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.
           For example, the 3W laser's actual output power of fiber coupled laser is >2.4W.
