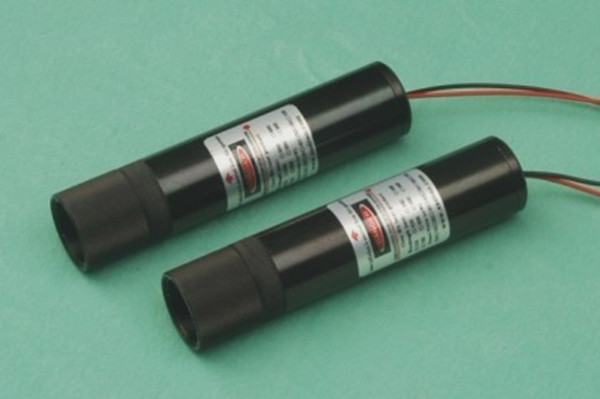

635nm 2mw Focusable Beam expander laser module / Long distance Locator / Φ20*100mm

Product 2/8

 Previous
 Return to the Product List
 Next

$76.00

Add to Cart:


635nm 2mw Focusable Beam expander laser module / Long distance Locator / Φ20*100mm

Specifications:
Wavelength:635nm
Output power:2mw
Exit Pupil Diameter: 10mm~16mm
Beam Divergence: 0.1mrad~0.6mrad Focusable
Optical Systems: Optical Coated Glass
Lens Focal Length: 52mm
Spot Description: 100m department width spot diameter < Φ20mm
Laser class:IIIa
Operating Voltage:DC3V-5V
Material: Aluminum Alloy
Operating Temperature:10°C~50°C
Storage Temperature:-40°C~80°C
Size: Φ20mm x 100mm
Note: Red line is (+), the black line is (-)
MTTF:8000 hours
Continuous working time: > 12 hours(Good heat dissipation)
Warranty:1 year

Package includes:
1 x Beam expander laser module
