TTL modulation 650nm 5mw~150mw Red laser Module 16*60mm
SPECIFICATIONS:
Name: TTL modulation 650nm 5mw~150mw Red laser Module 16*60mm
Output Wavelength: 650nm
Output Power: 5mW~150mw(Choice)
Laser Shape: Dot
Laser type: Visible laser, Red color
Outside Color: Black
Beam Divergence: 0.1mrad ~ 0.6mrad
Optical Systems: Optical Coated Glass
Spot Description: 1m department width spot diameter Φ0.5mm
Modulation: TTL modulation
Modulation frequency: 1Hz-1000KHz
Operating Voltage: DC 3V ~ 5V
Laser Class: IIIB
Operating Temperature: -10℃~70℃
Storage Temperature: -40℃~80℃
Size: Φ16mm x 60 mm
Continuous working time: > 12 hours(Good heat dissipation)
Warranty: 3 Months Factory warranty

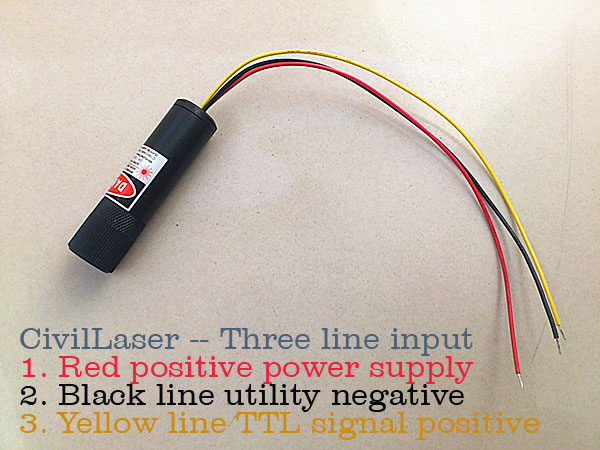

TTL modulation Description:
1 The red and yellow lines shorted, the module will be lit, in a continuous mode of operation;
2 To modulate the signal line negative black wire, positive connected to the yellow line, red line vacant, modulation module in working condition.
3 Signal input modulation frequency must be within the range 1000KHZ;
Package includes:
1* TTL Red laser module
