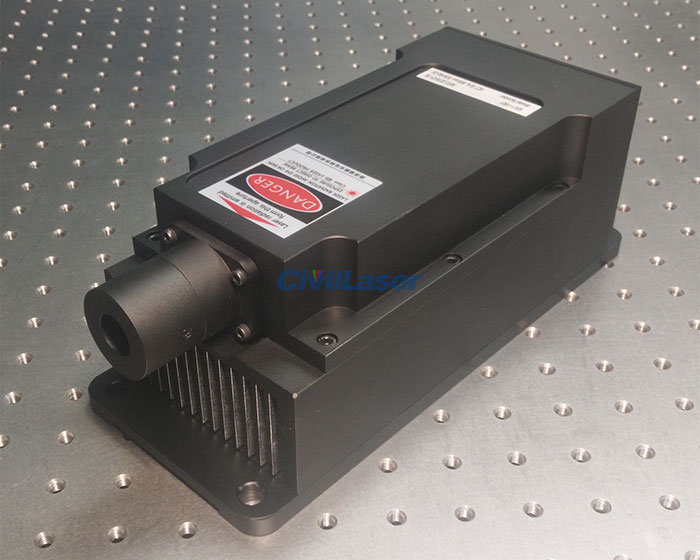

Linear Laser System 532nm 808nm 915nm 940nm 15W Powerful Line Laser With Power Supply
Note:
Most Solid-state lasers of CivilLaser can be customized to line laser system.
The overall cost is the price of the laser itself, plus the cost of customized line lasers.
Cost of customized line lasers.
1. Customized line laser for low power laser cost $150~$180.
2. Customized line laser for high power laser cost $360~$540.
If you need customized a line laser system, please contact us.
[Feature]
1. High brightness for a wide range of test conditions
2. High thickness, completely covering the camera's landscape width
3. The camera is equipped with a special multi-dimensional adjustment mechanism, which is convenient, firm and reliable
[Application]
Road pavement and railway road test

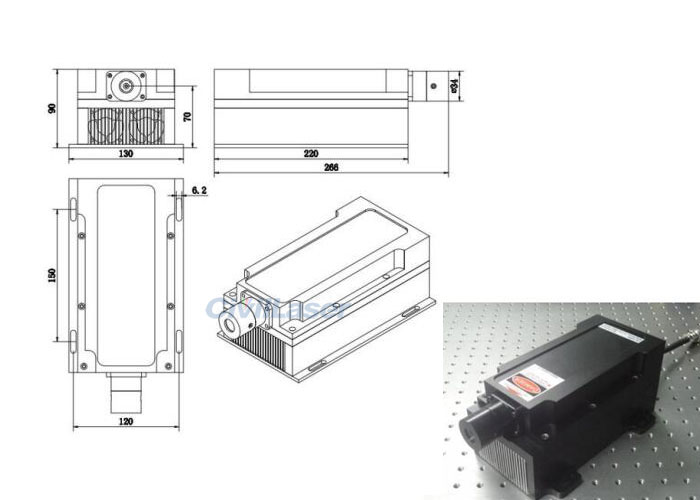

[Structural parameters]
Size: 266 (±0.5) × 130 (± 0.5) × 90 (± 0.5) (mm)
Weight: 3.2 ± 0.1kg
Mounting Hole Position: 150-120 (mm)
Installation Suggestion: 4-M4
Transverse Optical Axis: centered
Light Height: 71mm (distance from the bottom plate)
Note: The $110 is the deposit, not the final price.
[Specification]
| Parameter |
Unit |
Value |
| Wavelength |
nm |
532nm、808nm、915nm、940nm |
| Output Power |
W |
15 |
| Line Width |
△λ(nm) |
±3.0nm |
| Lader Mode |
|
Line |

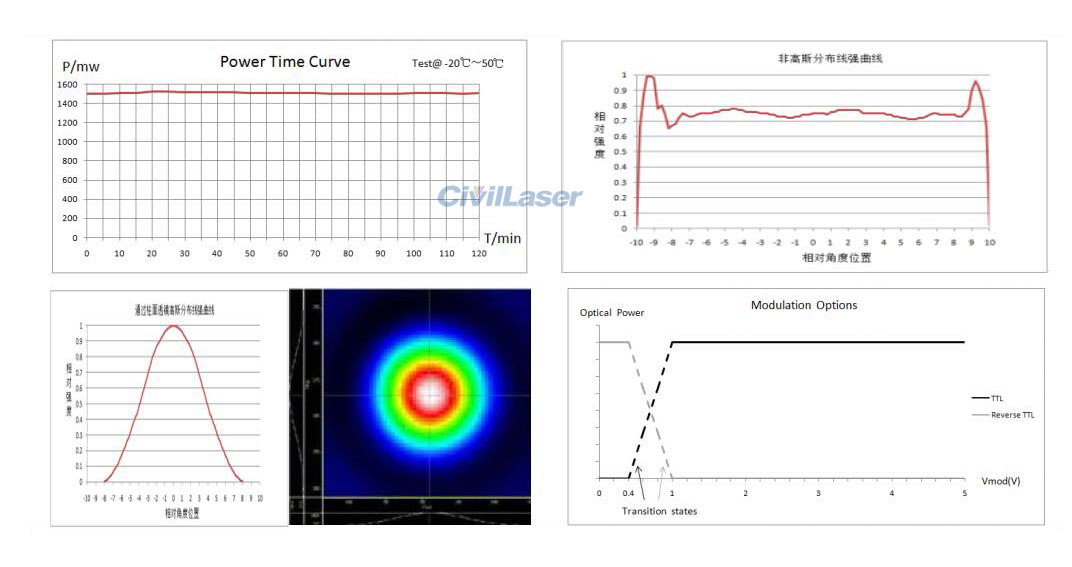

| Power Stability |
RMS |
≦3% (25°C & 4 hours test data) |
| Spot Stability |
mrad |
≦±0.05(25°C & 4 hours test data) |
| Horizontal Deviation |
mm |
≦1mm (left and right ends off center) |
| Fan-shaped Opening Angle |
° |
10~90° (conventional: 10°, 30°, 45°, 50°, 60°, 75°, 85°) |
| Power Density Error |
X% |
≦±30% (Luminance uniformity) |
| Vertical Deviation |
mm |
≦10mm (@2.5M) vertical deviation from the center value |
| Linear Thickness |
mm |
1～15mm（Adjustable） |
| Linear Curvature |
|
Dx<1.5mm (no fork) |
| Light Homogenization Mothed |
|
Built-in fiber coupling system |
| Adapter Power Supply |
|
SP-AC10A |
| Average Power Consumption |
W |
≦150.0 |
| TTL Modulation |
Hz |
≦1kHz (0/5VDC level signal input) |
| Temperature Control Accuracy |
℃ |
0.1°C (built-in TEC cooling/heating bidirectional thermostat) |
| Safety Protection |
|
Short circuit protection over temperature protection over voltage protection reverse polarity protection |
| Control Method |
|
Computer software or host computer instruction |
| Data Feedback |
|
R232 interface controls and feeds back temperature, current, over temperature or other abnormal parameter information |
| Ambient Temperature |
℃ |
-20°C~+50°C |
| Environment Humidity |
X% |
20-85% RH-non-condensing |
| Storage Temperature |
°C |
-30℃~+70℃ |
| Storage Humidity |
X% |
10～95%RH |
| Vibration Test |
|
GBT 2423.43-2008/-15m/s2 5-200Hz |
| Impact Resistance |
|
IEC 60068-2-47:2005/-150 m/s2 11ms |
| Amplitude Noise |
rms |
≦1% （1～20MHz） |
| Service Life |
hrs |
≧10000 |
| Warranty Period |
year |
1 |
Note:
All linear lasers are customized products.
The laser wavelength/output power/divergence angle/line thickness/size/power supply... and other parameters need to be confirmed first.
